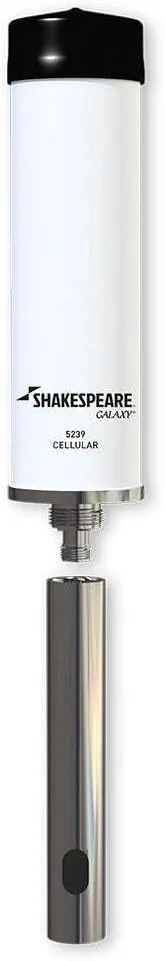

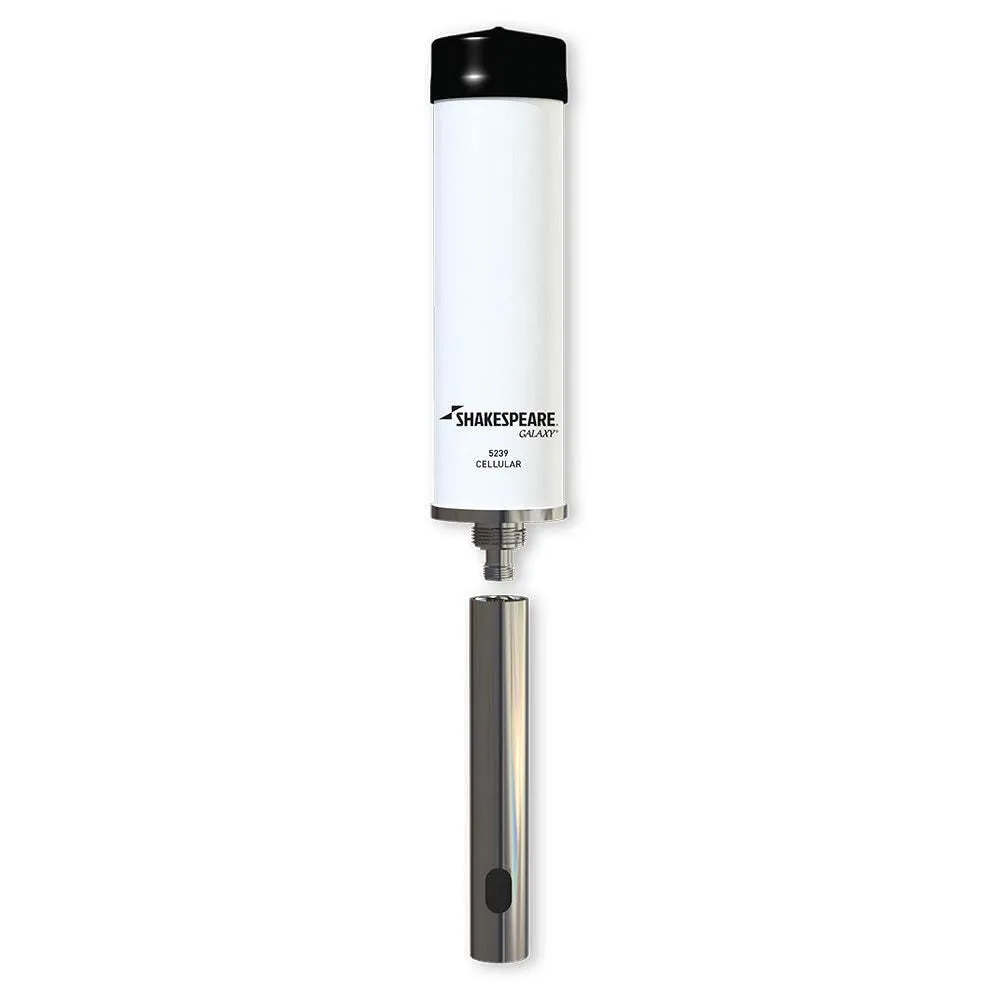

Shakespeare 5239 Galaxy World Band Cellular/Wi-Fi Antenna
Customize
Cellular/Wi-Fi World Band Galaxy Antenna. The Galaxy 5239 antenna is Shakespeare's smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1in -14 threaded mounts. Features: Full Band (698 - 2700 MHz) Broadband 2G/3G/4G and WLAN systems Wi-Fi 802.11n compatible Designed for marine use Omni-directional antenna 3-4 dB Gain. Easy to install Includes FME Cables. Technical & packaging details combined from sources: Frequency: 698-960/1700-2700 MHz; Impedance: 50 Ohm; Antenna Gain: 2-3dB @ 698-960 / 3-4dB @ 1700-2700 MHz; VSWR: ≤ 1.8; Connector Type: N-female; Dimension: approx. 9.25" H x 2.625" D (DB) and Item Dimensions reported as 10 x 4.25 x 4.25 inches (RF). Color: White. Materials: Fiberglass body with stainless steel ferrule.
- Great Product
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Fiberglass, Stainless Steel |
| Outer Material | Fiberglass |
| Product Details | |
| Antenna | Radio |
| Impedance | 50 Ohm |
| Included Components | Great Product |
| Model Name | 5239 |
| Number of Channels | 1 |
| Number of Items | 1 |
| Part Number | 5239 |
| Size | One Size |
| Warranty Description | 1 year limited |
| Sizing & Dimensions | |
| Height | 4.25 inches |
| Length | 10 inches |
| Product Dimensions | 10 x 4.25 x 4.25 inches |
| Size | One Size |
| Weight | 1.70 pounds |
| Width | 4.25 inches |
| Technical Specifications | |
| Antenna Gain | 2-3dB @ 698-960 / 3-4dB @ 1700-2700 MHz |
| Connector Type | N-female |
| Frequency | 698-960/1700-2700 MHz |
| Ground Plane | Internal |
| Impedance | 50 Ohm |
| Maximum Power (W) | 100 |
| Mounting | 1" x 14 Thread Mount |
| Operating Temperature (F) | -22 to +176 |
| Polarization Type | Vertical |
| Power Rating (W) | 10 |
| Radiation | Omni-Directional |
| VSWR | ≤ 1.8 |
