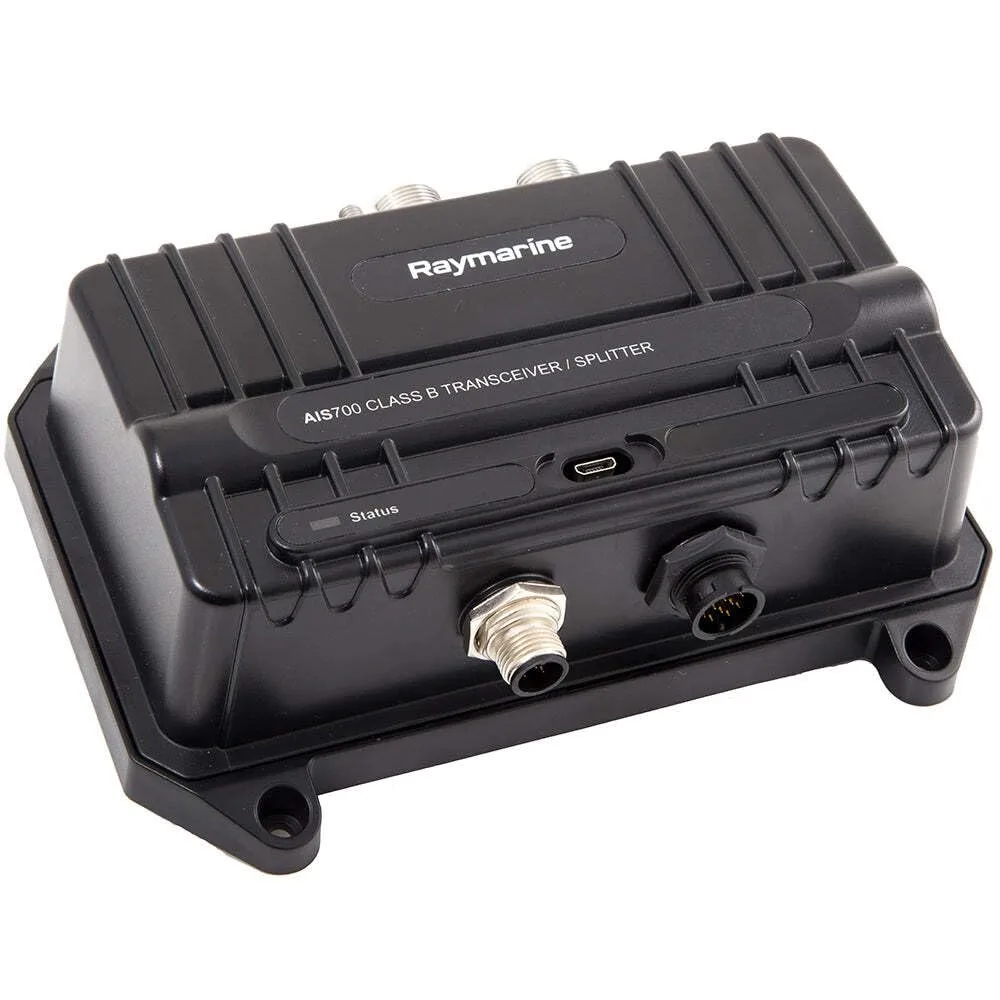

Raymarine AIS700 Class B AIS Transceiver w/Antenna Splitter
Customize
The Raymarine AIS700 is a compact Class B AIS transceiver engineered for enhanced marine situational awareness and ease of installation. It features full transmit and receive AIS capability using SO-TDMA networking for longer range and faster performance. The AIS700 includes an internal 72-channel GNSS (GPS) receiver with external antenna, and a built-in VHF-band antenna splitter so it can share a single antenna with an existing VHF radio. Connectivity options include NMEA2000, NMEA0183, SeaTalkng and USB 2.0 for PC integration. The unit supports both hardware and software-enabled Silent Mode for temporary broadcasting restrictions and includes a Secure Digital (SD) memory slot for AIS data logging. In-box accessories typically include the GNSS antenna with mount/gasket, power/data cable, VHF antenna interconnect cable, DeviceNet to SeaTalk NG cable, mounting hardware, documentation and programming software. Note: FCC programming requirements apply for units sold in the U.S.; programming must be completed by a qualified technician with appropriate MMSI/FCC documentation.
- Class B AIS (Automatic Identification System) transceiver designed for use with Raymarine multifunction navigation display systems
- Full transmit & receive AIS for enhanced situational awareness & safety
- Latest SO-TDMA networking for longer range & faster performance
- Built-in antenna splitter simplifies installation with existing VHF radio antenna
- NMEA2000, NMEA0183, PC (setup & diagnostics) & SeaTalkng compatible
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Other |
| Outer Material | Other |
| Product Details | |
| Ais Class | B |
| Antenna Included | No |
| Color | Black |
| Display Included | No |
| Function | Receive/Transmit |
| Gps Included | Yes |
| Included Components | Splitter |
| Material | Other |
| Model Name | AIS700 TRANCEIVER WITH ANTENNA SPLITTER |
| Warranty Description | One Year Warranty |
| Sizing & Dimensions | |
| Height | 6 inches |
| Length | 18 inches |
| Product Dimensions | 18 x 10 x 6 inches |
| Weight | 3 pounds |
| Width | 10 inches |
