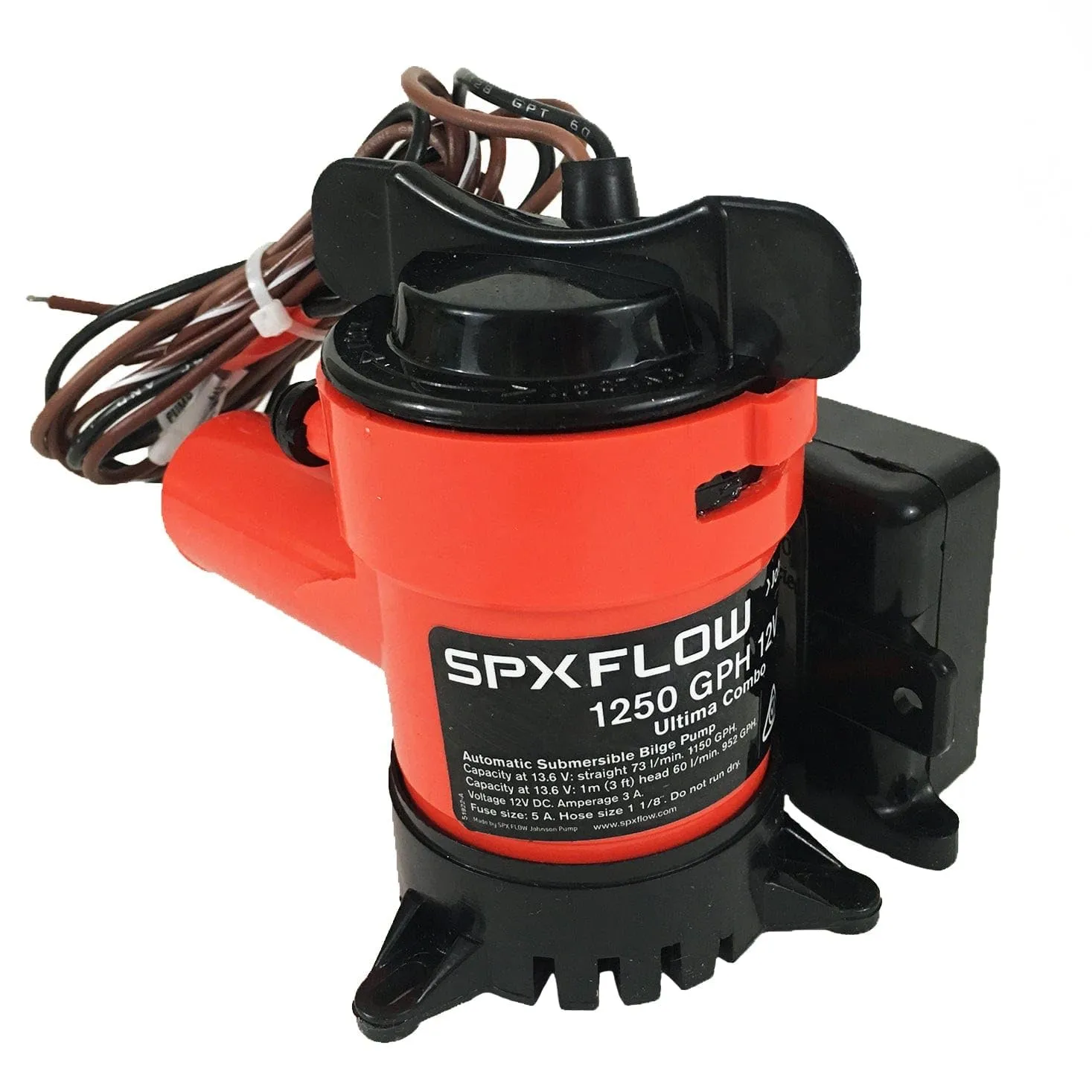

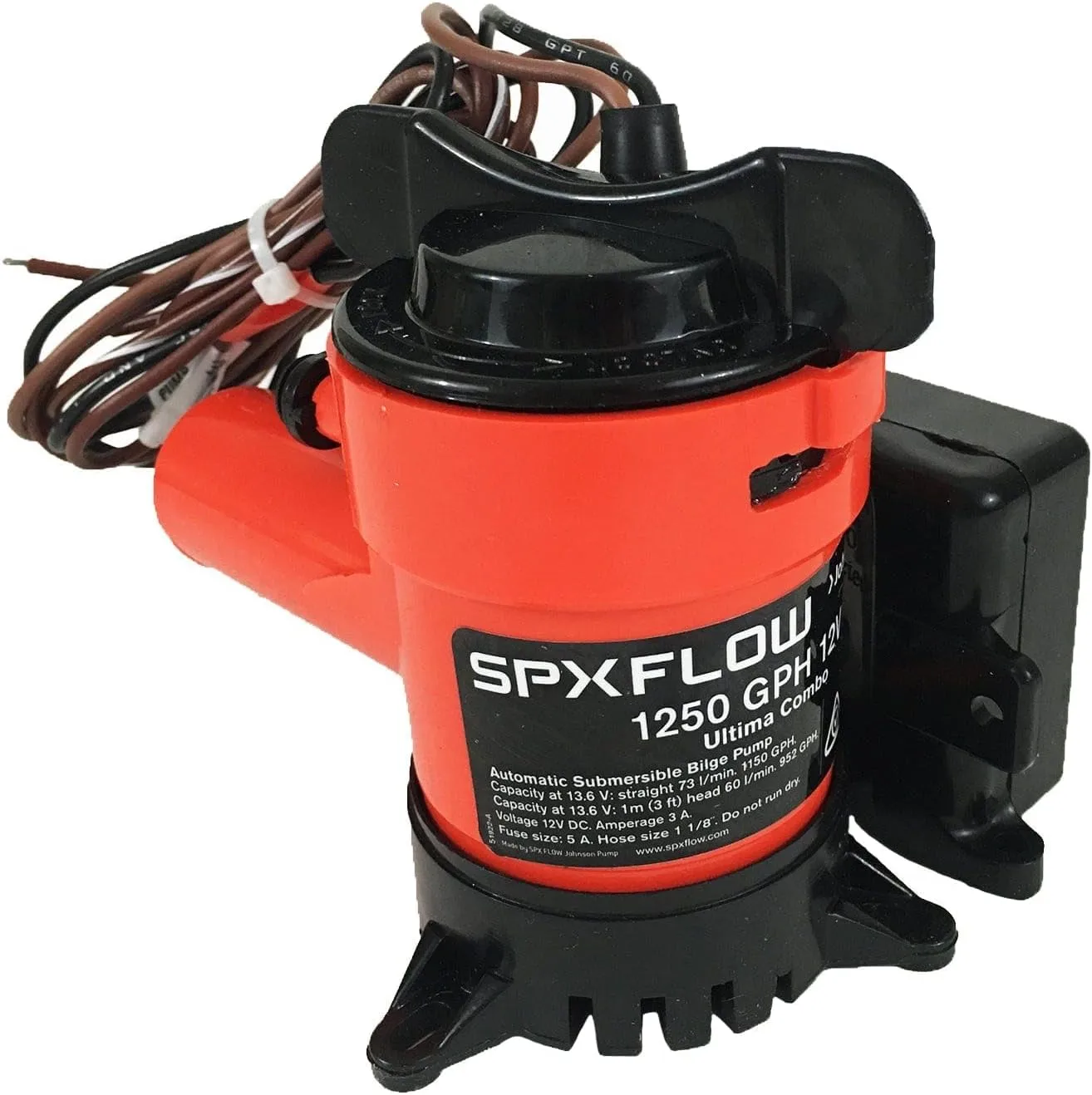

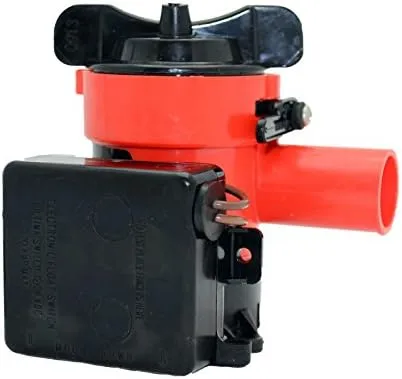

Johnson Pump 1250 GPH Ultima Combo Pump 1-1/8" Hose 12V
Customize
1250 GPH Ultima Combo Automatic Submersible Bilge Pump 12V. Johnson Pump Marine Ultima Combo bilge pumps are JPM's proven Cartridge Bilge Pumps combined with the non-clogging electronic switch Ultima Switch for automatic operation. The electronic Ultima Switch uses patented Mirus field effect detector cells producing micro-electrical fields that detect disruptions caused by water level in the bilge and automatically activates/deactivates the pump. CE-Approved. Features: Pre-configured with an electronic Ultima Switch for automatic operation; Capacities: 500, 750, 1000 and 1250 GPH; Extremely energy efficient; Water-cooled motor for long service intervals; Compact all-in-one motor/impeller unit with stainless steel (SS2343) shaft; No tools needed for maintenance, no need for complete disassembly; 500/750/1000 GPH pumps include Dura-Port discharge ports (500/750/1000 delivered with straight and 90° smooth elbow Dura-Port and removable check valve). Pump body: Thermoplastic. Shaft seal: Lip seal. Shaft: Stainless steel. Voltage: 12v. Wire size: 16GA. Hose size: 1-1/8". Does not include Dura-port connection. Specifications collected from product data: Capacity 3ft (0.9 m) head (13.6V/27.2): 60 l/min - 952 GPH; Capacity straight (13.6V/27.2V): 73 l/min - 1150 GPH; Amperage: 3 A; Fuse size: 5 A; Connection: 1-1/8"; Length: 4.41" (112 mm); Width: 4.25" (108 mm); Height: 3.35" (85 mm); Weight: 16 oz.; Gallons Per Hour: 1250 GPH; Operation: Automatic; Outlet Size: 1-1/8"; Volts: 12v; Type: Electric.
- Package Weight: 1.05 pounds
- Country of Origin : United States
- Package Dimensions: 10.668 H x 19.05 L x 19.05 W (centimetres)
- Fit type: Universal Fit
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Thermoplastic |
| Outer Material | Thermoplastic |
| Product Details | |
| Amperage | 3 A |
| Connection | 1-1/8" |
| Fuse size | 5 A |
| Gallons Per Hour | 1250 Gph |
| Maximum Flow Rate | 1.25E+3 Gallons Per Minute |
| Operation | Automatic |
| Outlet Size | 1-1/8" |
| Power Source | Ac/dc |
| Style | Above Ground |
| Type | Electric |
| Voltage | 12 Volts (DC) |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 7 x 4 inches |
| Size | One Size |
| Weight | 0.01 ounces |
| Width | 7 inches |
| Technical Specifications | |
| Global Trade Identification Number | 00729321082037 |
| UPC | 729321082037 |
| Warranty | Warranty |
