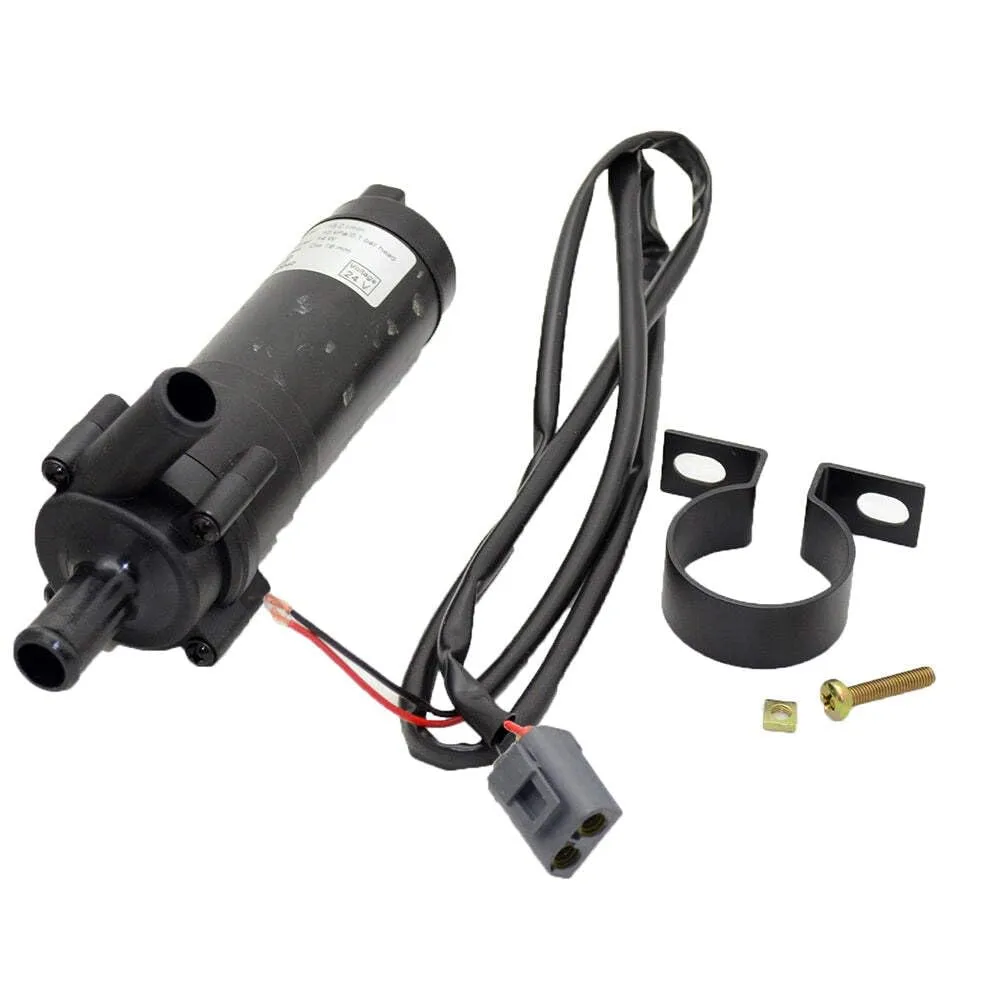

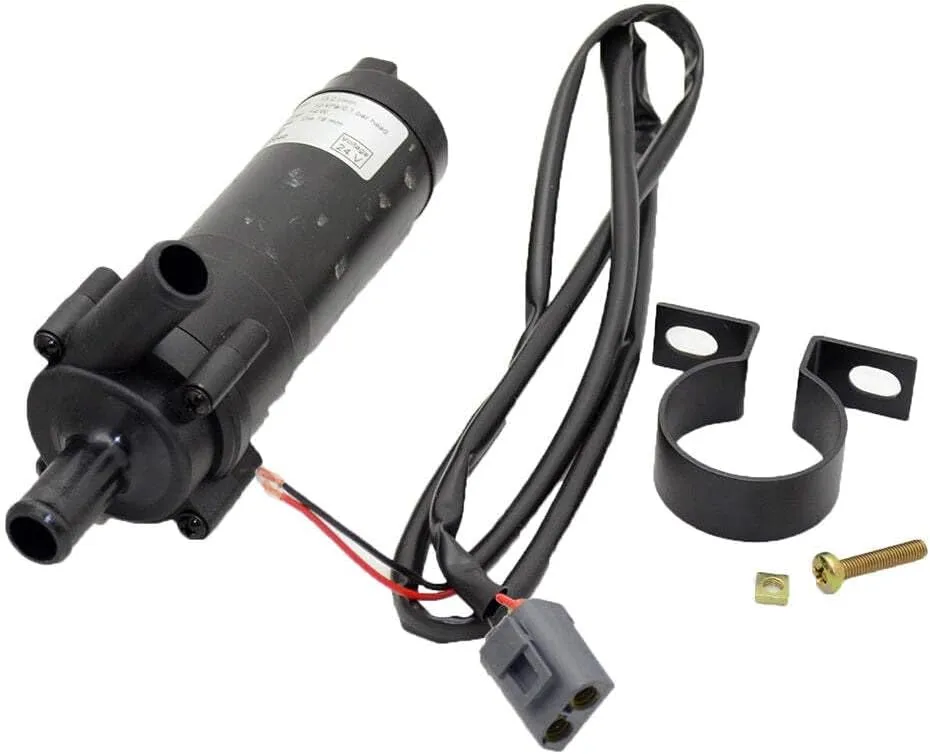

Johnson Pumps 10-24488-03 CM30P7-1 5.2 GPM Circulation Pump with 5/8-Inch Port and Flexible Cord, 12V
Johnson Pumps CM30P7-1 12V magnetic-driven centrifugal circulation pump — 5.2 GPM, 5/8" port, compact design, low current draw; suitable for fresh water, salt water and glycol mixtures.
$240.04 $240.04
Customize
Available Quantity
24 Product Details
CM30P7-1 - 12V - Circulation Pump - Dia16 Features: 12V, 5.3 GPM circulation pump Compact, magnetic driven centrifugal pump High flow rate with very low electrical current consumption Suitable for fresh water, ethylene glycol and salt water A line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. PPA thermoplastic pump body with PPS thermoplastic impeller. EPDM O-ring, stainless steel shaft, PSU magnet housing, enclosed DC permanent magnet, ball bearing mounted motor designed for continuous operation.
- Suitable for fresh water, ethylene glycol and salt water
- High flow rate with very low electrical current consumption
- Compact, magnetic driven centrifugal pump
- 12V, 5.2 GPM circulation pump
Specifications:
| Materials & Construction | |
| Color | Black |
| Impeller Material | PPS thermoplastic |
| Material | Plastic |
| O-ring Material | EPDM |
| Pump Body Material | PPA thermoplastic |
| Shaft Material | Stainless steel |
| Product Details | |
| Included Components | Johnson Pump 10-24488-03, CM30P7-1 MAG Drive 12V 5/8 |
| Model Name | 10-24488-03 |
| Number of Items | 1 |
| Style | Diaphragm |
| Sizing & Dimensions | |
| Height | 3.35 inches |
| Length | 6.97 inches |
| Product Dimensions | 6.97 x 2.68 x 3.35 inches |
| Size | 12V |
| Weight | 1.5 pounds |
| Width | 2.68 inches |
| Technical Specifications | |
| Capacity | 5.2GPM at 3.3' |
| Hose Connection | 5/8" |
| Maximum Flow Rate | 5.2 Gallons Per Minute |
| Motor Type | Enclosed DC permanent magnet, ball bearing mounted |
| Operating Temperature Range | Min. -40 Degree C - Max. +100 Degree |
| Power Source | Direct Current Powered |
| Voltage | 12 Volts (DC) |
