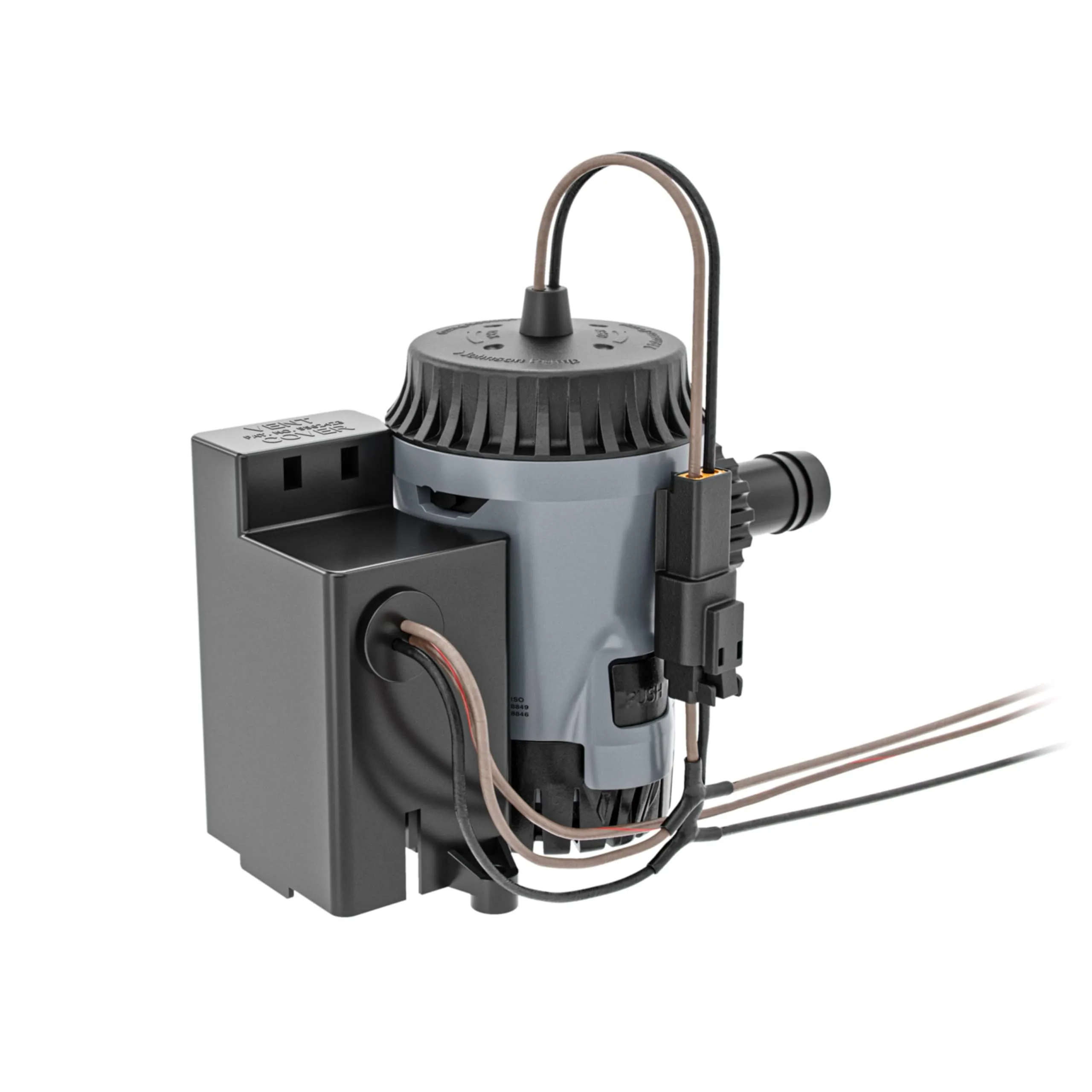

Johnson Pump 10-13637-02 Aqua Void Electro-Mag Combo - 12V, 800 GPH
Customize
Featuring a powerful new high flow impeller design that provides the most efficient and highest true capacity flow in the category, this new 800GPH bilge pump is available pre-wired with the dependable Electro-Magnetic float switch for automatic operation. The mechanical Electro-Magnetic Switch features a completely sealed electronic solid state design and will not be affected by debris. External switch allows easy replacement without having to remove or replace pump. Pump features replaceable and upgradeable Aqua Series cartridge motors that include the industry's first in-line quick change connector for simple plug and play replacement that requires no cutting or splicing of wires. Offers small footprint and one-hand easy motor removal. Includes both straight and 90 degree redesigned heavy duty dura-port connections and removable check valve. 12V.
- Includes straight and 90 degree redesigned Dura-Port connectors and removable check valve
- Highest True Capacity Flow in Category
- New High Flow Impeller Design
- Pre-wired with Electro-Magnetic Switch for automatic operation
- 800GPH Capacity
Specifications:
| Materials & Construction | |
| Color | Gray |
| Material | Stainless Steel, Acrylonitrile Butadiene Styrene (ABS) |
| Product Details | |
| Gallons Per Hour | 800 Gph |
| Model | 10-13637-02 |
| Operation | Automatic |
| Outlet Size | 3/4" |
| Power Source | Corded Electric |
| Product Type | Electric |
| Style | Johnson Pump 10-13637-02 Aqua Void Electro-Mag Combo - 12V, 800 GPH |
| Voltage | 12 Volts (DC) |
| Sizing & Dimensions | |
| Height | 3.75 inches |
| Length | 5.5 inches |
| Product Dimensions | 5.5 x 4.5 x 3.75 inches |
| Weight | 1.2 pounds |
| Width | 4.5 inches |
| Technical Specifications | |
| Amp | 3.7A |
| Fuse | 5A |
| Gallons Per Hour Capacity Straight (12V) | 785 GPH (50 I/min) |
| Hose Connection | 3/4 in. |
| Motor Cartridge | PC-ABS |
| Shaft | 316 Stainless Steel |
| Shaft Seal | Nitrile Rubber |
| Wire Size | 16 GA, TAC |
