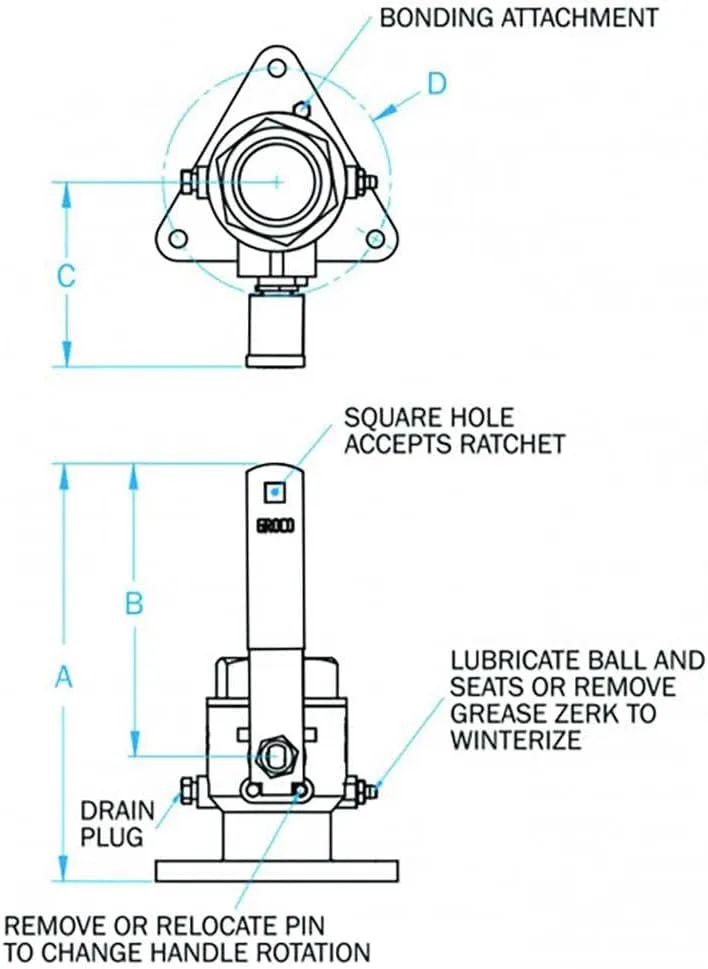

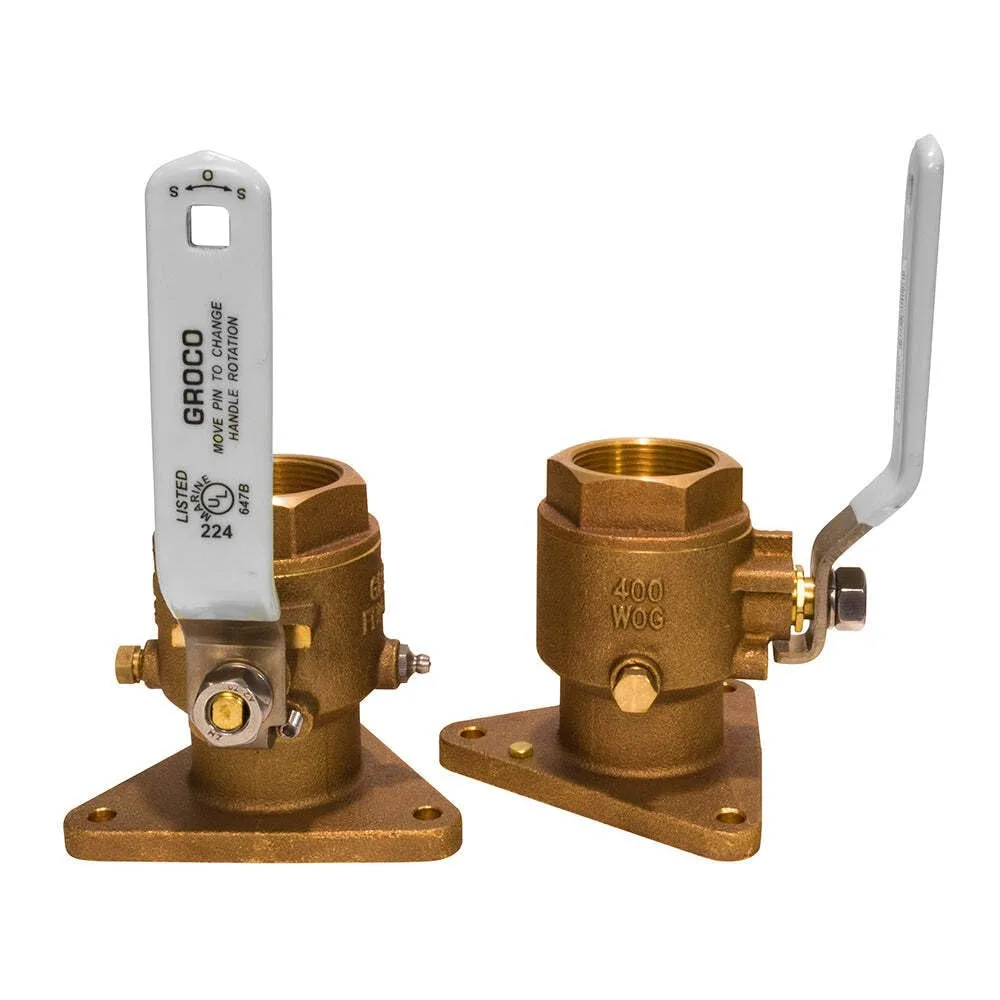

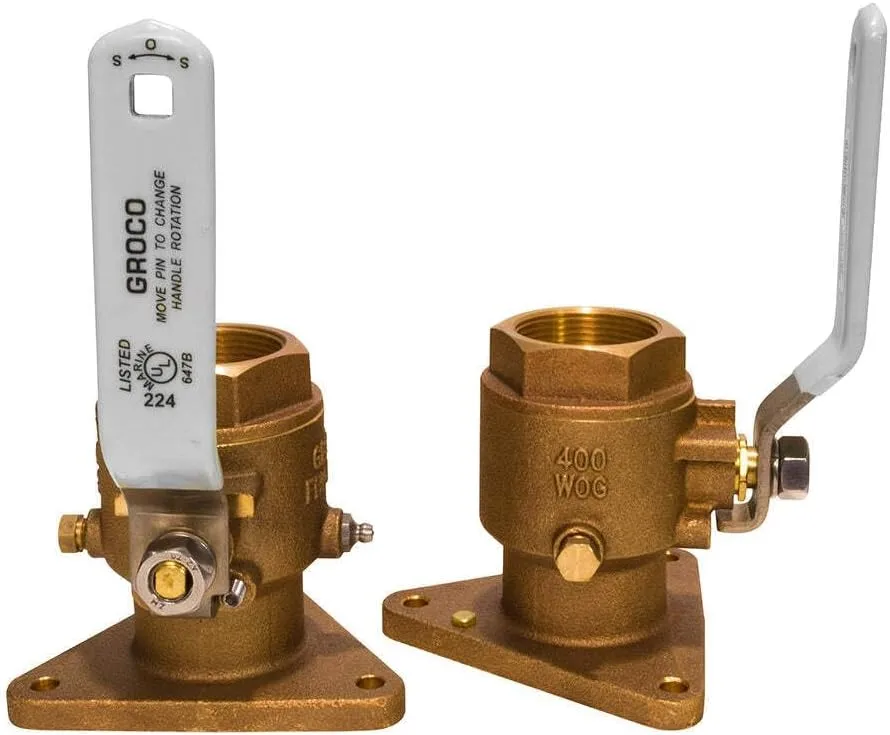

1-1/4" Bronze Tri-Flanged Ball Valve/Seacock. Features: 1-1/4" sizes and larger include one grease zerk fitting for lubrication (use only with the valve in the open position) and one drain plug. Field reversible handle allows selecting the closed position orientation (clockwise or counter-clockwise) to suit installation. Handle has square hole to accept a standard ratchet for hard-to-reach locations and easier actuation. Full-flow triangular base with bolt pattern to match popular brands for easy retrofit. C83600 bronze construction with chrome-plated solid brass ball, PTFE seats and seals, and stainless steel handle and hardware. Bonding attachment on base. Meets CSA and ULC specifications. Outlet/Inlet flange connections sized 1.25" (1-1/4") with 2 ports. Ideal for marine plumbing and seacock applications where corrosion-resistant bronze construction and reliable shutoff are required.
| Materials & Construction | |
| Color | No Color |
| Material | Bronze |
| Outer Material | Bronze |
| Product Details | |
| Construction | Bronze |
| Exterior Finish | Bronze |
| Included Components | Great Product |
| Inlet Connection Size | 1.25 Inches |
| Inlet Connection Type | Flange |
| Material | Bronze |
| Model Name | FBV-1250 |
| Number of Ports | 2 |
| Outlet Connection Size | 1.25 Inches |
| Outlet Connection Type | Flange |
| Specification Met | CSA, ULC |
| UPC | 742985141254 |
| Valve Type | Ball Valve |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 6 x 4 inches |
| Size | 1 1/4'' |
| Weight | 1 pounds |
| Width | 6 inches |
| Technical Specifications | |
| Warranty | Warranty |
