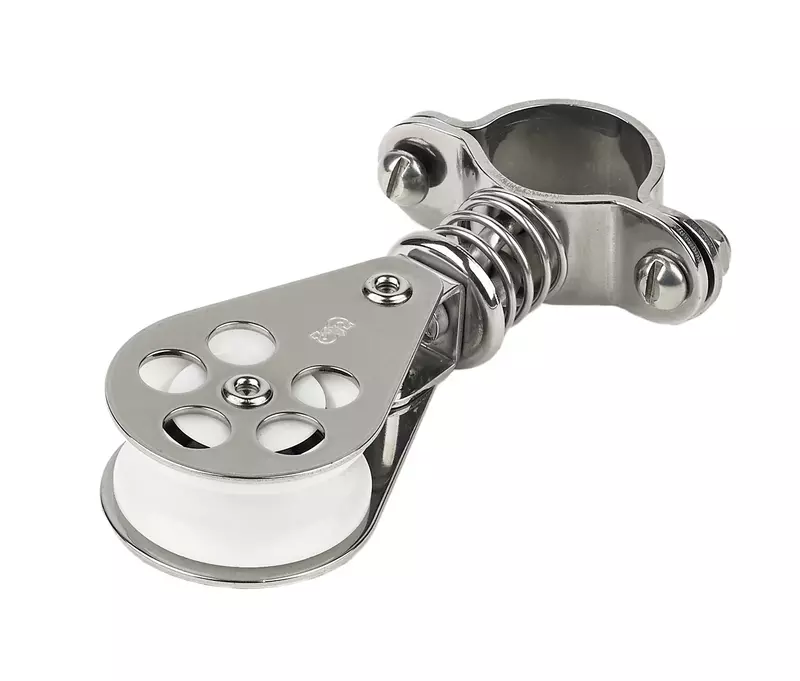

Schaefer 3 Series Stanchion Furling Lead Block with Spring, Stainless Cage, Delrin Ball Bearing Sheave,grey
Schaefer stanchion furling lead block with stainless spring-loaded cage and Delrin ball-bearing sheave; fits 1" (25mm) stanchions; Safe Working Load 1000 lb; Model 300-35.
$185.55 $185.55
Customize
Available Quantity
2 Product Details
Schaefer blocks have been manufactured in the United States since 1966 and are known for their legendary strength. Blocks are made from 316 stainless steel and hard coat anodized 6061-T6 aluminum alloy while the sheaves are made of UV protected Delrin. Schaefer offers the widest range of products for building block and tackle systems. Pulpit Furling Lead Spring Loaded Block - 1" Ball Bearing. The Stainless Steel spring guarantees maximum support for the block. Delrin ball bearing sheave ensures low-friction lead for your furling line. Specifications: 1" (25mm) stanchions Length 4-11/32" (111mm) Width 1-9/16"(40mm) Safe Working Load 1000 lbs (450kg) Weight 4 oz (113g) Max line size 7/16" (11mm) Sheave diameter 1-7/16" (37mm).
- Fits 1" (25mm) Stanchions
- Safe Working Load 1000lb(450kg)
- Delrin Ball bearing sheave
- Stainless Cage
Specifications:
| Materials & Construction | |
| Color | grey |
| Material | Stainless Steel, Delrin |
| Product Details | |
| Bearing Type | Ball Bearing |
| Item model number | 300-35 |
| Material | Stainless Steel, Delrin |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 1 inches |
| Size | Fits 1" (25mm) Stanchions |
| Weight | 4.8 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Max line size | 7/16" (11mm) |
| Safe Working Load | 1000 lb (450 kg) |
| Sheave diameter | 1-7/16" (37mm) |
