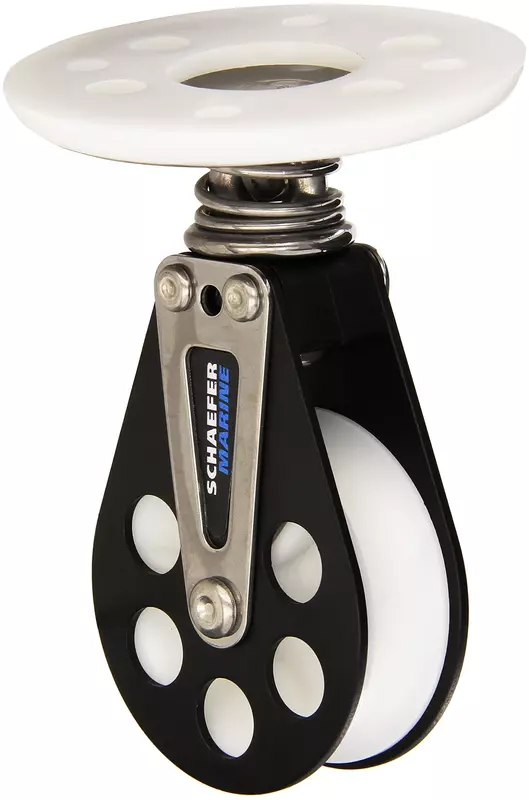

Schaefer Stand-Up Swivel - Aluminum Block
Customize
Schaefer blocks have been manufactured in the United States since 1966 and are known for their legendary strength. Blocks are made from 316 stainless steel and hard coat anodized 6061-T6 aluminum alloy while the sheaves are made of UV protected Delrin. Schaefer offers the widest range of products for building block and tackle systems. Halyard/Control Blocks are excellent for fixed position halyard, sheet or control line fairleads. Block swivels 360 degrees, tilts in all directions and is supported by a heavy gauge stainless steel sprint to prevent deck contact. Large diameter base helps distribute loads to a larger surface area than other smaller designs. Stand-Up Swivel - Aluminum Block Specifications: Sheave Dia. 2-2/8" (60 mm) Max Line 1/2" (13 mm) Diameter includes urethane base 3-3/8" (86 mm) Height 4-25/32" (120 mm) H2 2-15/32" (63 mm) Fastener Size (4),1/4" RH (6 mm) C/C 1-11/16" (43 mm) SWL 2250 lbs (1020 kg) Weight Alum. 11.7 oz. (332 g)
- C/C Fasteners 1-11/16 Inch(43mm) base diameter 3-3/8 Inch(86mm)
- 2250(1020kg) Safe Working Load
- Delrin plain bearing sheave
- Stainless Steel base
- Aluminum cheeks
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Product Details | |
| Global Trade Identification Number | 00740507010866 |
| Included Components | Great Product |
| Material | Plastic |
| Model Name | 704-62 |
| Part Number | 704-62 |
| Size | One Size |
| Style | Modern |
| UPC | 740507010866 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 4 inches |
| Item dimensions L x W x H | 5 x 4 x 4 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 4 x 4 inches |
| Weight | 0.75 pounds |
| Width | 4 inches |
| Technical Specifications | |
| Item Package Dimensions L x W x H | 3.3 x 3.2 x 1.3 inches |
| Safe Working Load | 2250 (1020 kg) |
