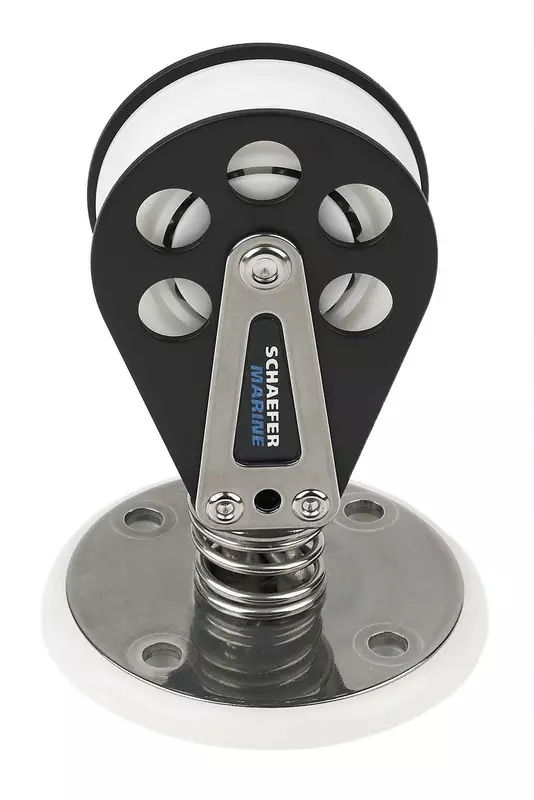

Schaefer 7 Series Stand Up Spring Block, Aluminum Cheeks, Stainless Steel Base and Delrin Ball Bearing Sheave

Schaefer blocks have been manufactured in the United States since 1966 and are known for their legendary strength. Blocks are made from 316 stainless steel and hard coat anodized 6061-T6 aluminum alloy while the sheaves are made of UV protected Delrin. Schaefer offers the widest range of products for building block and tackle systems. Halyard/Control Blocks are excellent for fixed position halyard, sheet or control line fairleads. Block swivels 360 degrees, tilts in all directions and is supported by a heavy gauge stainless steel sprint to prevent deck contact. Large diameter base helps distribute loads to a larger surface area than other smaller designs. Series 7 Stand Up Ball Bearing Swivel Block - 2-3/8" (60 mm). Single stand up ball bearing block with stand-up spring that keeps the block upright when not in use. Stainless steel base spreads load out and may be used with 97-49 backing plate (sold separately). Delrin ball bearing sheave provides a low-friction, high-strength sheave. Sheave Dia. 2-3/8" (60 mm); Max Line 1/2" (13 mm). Diameter includes urethane base 3-3/8" (86 mm); Height 4-25/32" (120 mm). SWL 1700 lbs (771 kg). Weight (aluminum cheeks) approximately 11.7 oz (332 g).

• C/C Fasteners 1-11/16 Inch(43mm) base diameter 3-3/8 Inch(86mm)
• 1700(771kg) Safe Working Load
• Delrin Ball bearing sheave
• Stainless Steel base
• Aluminum cheeks
