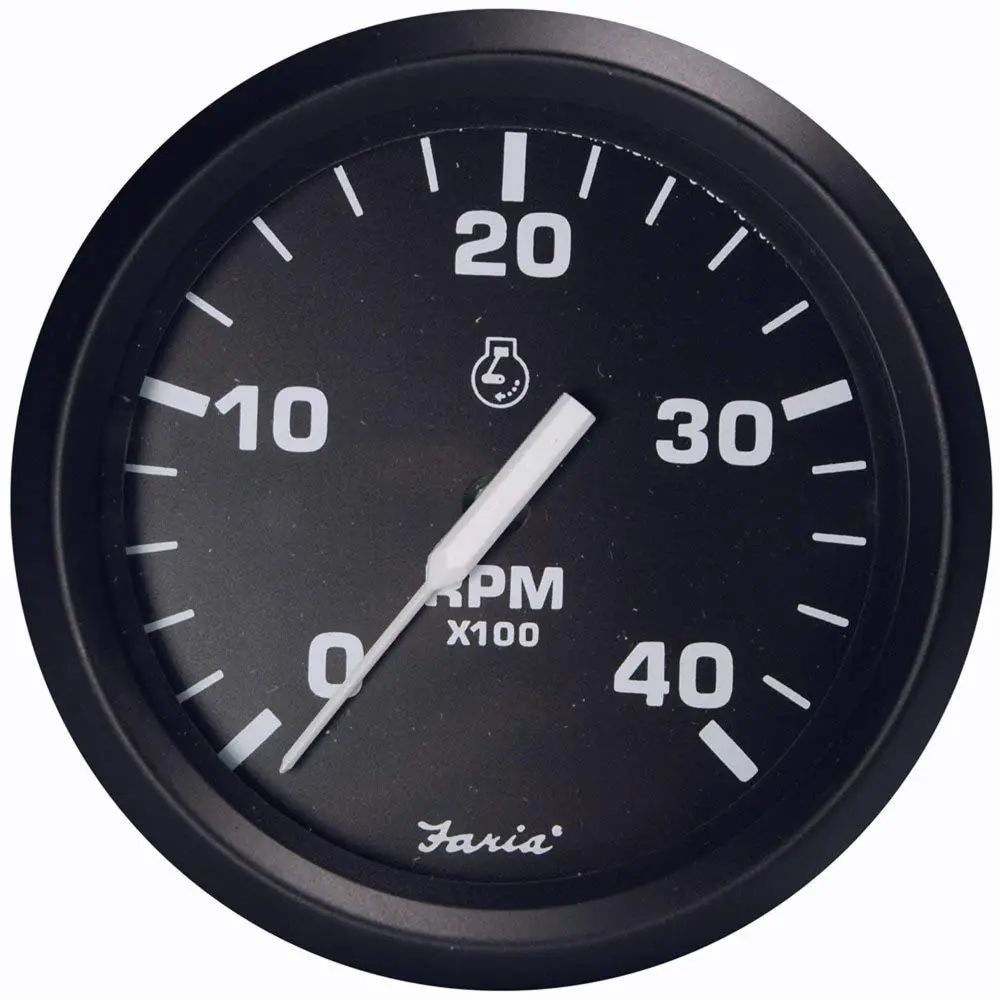

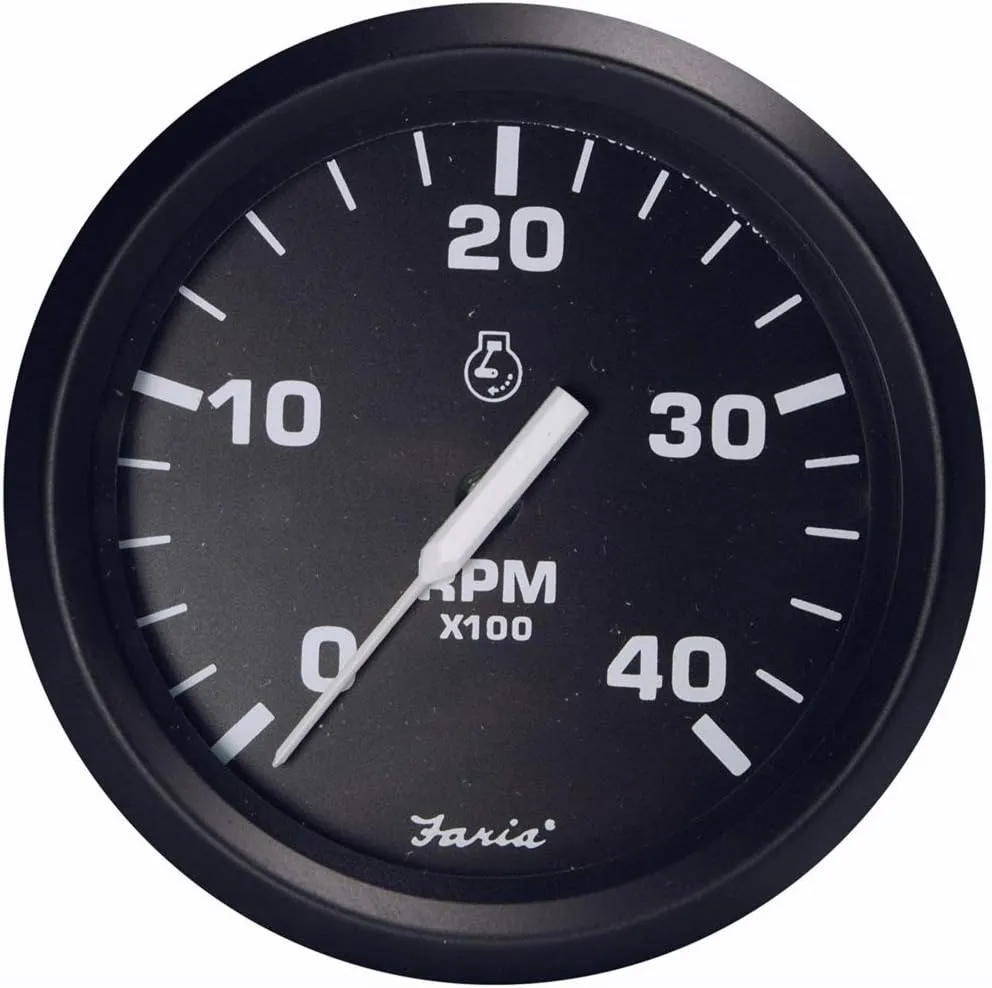

Faria 32803 Euro Tachometer with Mag Pick-Up (4000 RPM) Diesel - 4" , Black
Customize
Euro Black 4" Tachometer - 4000 RPM (Diesel - Magnetic Pick-Up) Perimeter-lighted black dial with bold white graphics, black aluminum bezel, contoured white pointer and flat glass lens. Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed. By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution. 4" - Hole size: 3.375" (85mm). Specifications: For magnetic pick-up sensors only 30 to 160 pulses/flywheel teeth. Anti-scratch glass lens. Plastic cases for corrosion resistance and long life. Perimeter-lighted black dial. Can be adapted for 24 VDC systems. Factory P/N TD9671. Sold as an Individual. Gauge cover not included.
- Size 4 gauge requires a 3.375" (85 mm) mounting hole
- Flat glass lens
- Black aluminum bezel
- Bold white graphics
- Perimeter-lighted black dial with a contoured white pointer
Materials & Construction
- Color:Black
- Material:Plastic
Product Details
- Box Set:No
- Gauge Size:4"
- Gauge Type:Tachometer - Diesel
- Included Components:Faria Beede 32803 Euro Tachometer with Mag Pick-Up
- Model Name:Faria Beede 32803 Euro Tachometer with Mag Pick-Up (4000 RPM) Diesel - 4"", Black
- Number of Items:1
- Screen Size:5 Inches
- Series:Euro Black
- Voltage - Input Range (Volts):12/24 V
Sizing & Dimensions
- Height:5 inches
- Length:6 inches
- Product Dimensions:6 x 5 x 5 inches
- Size:4"
- Weight:0.68 pounds
- Width:5 inches
