Faria Beede 32834 Euro Tachometer with Hourmeter (4000 RPM) Diesel - 4"", Black, Multicoloured
Customize

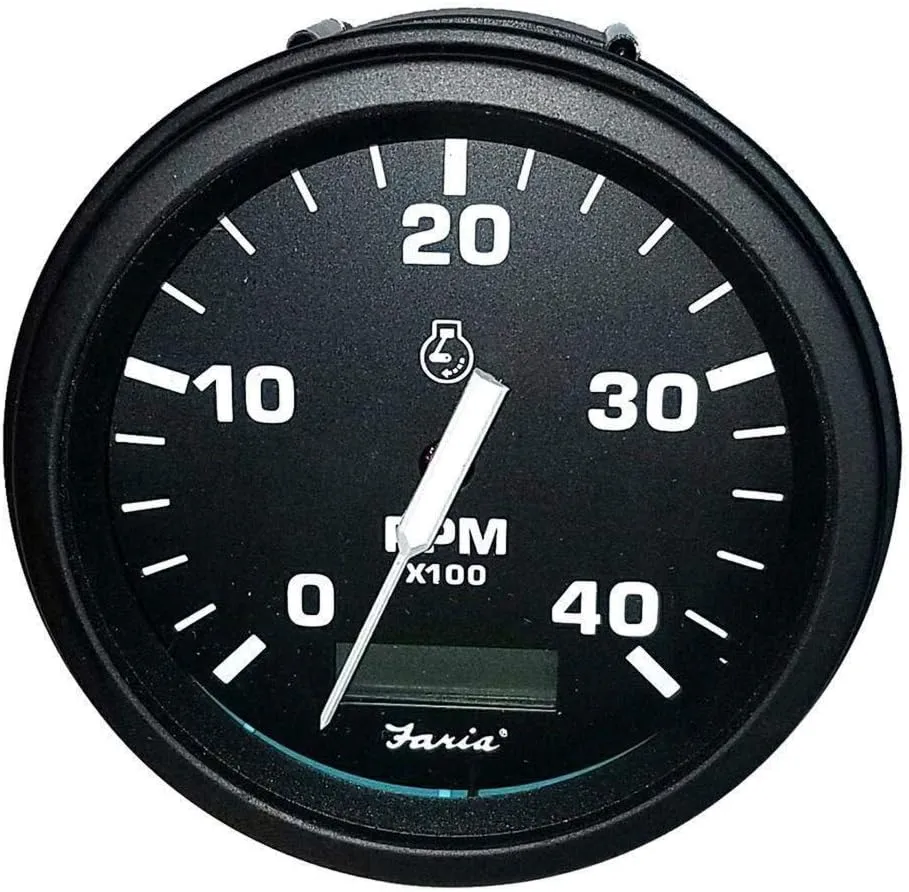

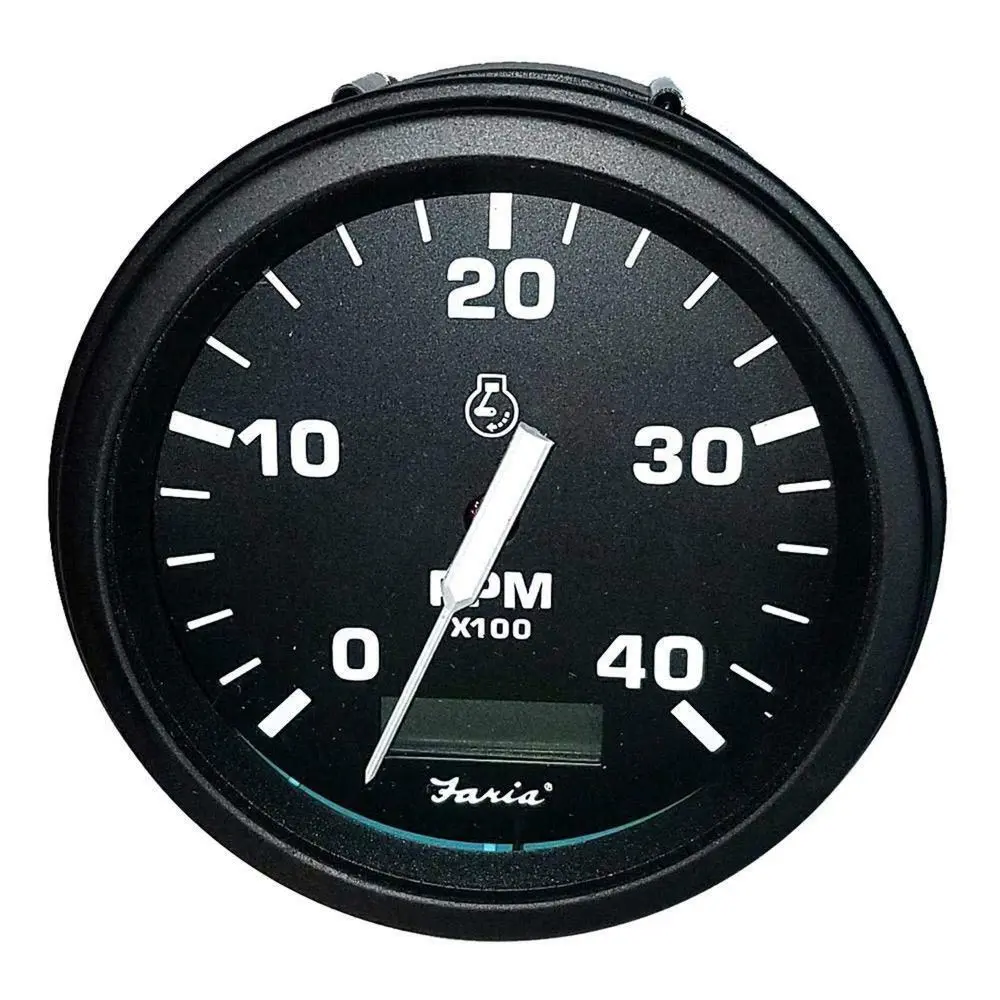

Euro Black 4" Tachometer with Hourmeter (4000 RPM) (Diesel) (Mech Takeoff & Var Ratio Alt). Perimeter-lighted black dial with bold white graphics, black aluminum bezel, contoured white pointer and flat glass lens. Electronic tachometers count pulses from the ignition system, alternator, tach signal generator or magnetic pickup sender and are wired to +12VDC, Ground and the signal source. Select the switch on the back to configure pulses per engine revolution. 4" gauge - Hole size: 3.375" (85mm). Anti-scratch glass lens, plastic case for corrosion resistance and long life. Can be adapted for 24 VDC systems. For alternator and variable ratio mechanical take off (MTO) diesel only. Range - 3 to 30 pulses per rev. 7 character LCD display 0-999999.9 Hours updates in .1 increments. Factory P/N TC9102. Sold as an individual; gauge cover not included. (Product dimensions and package information: Item dimensions 5 x 5 x 6 inches; Package dimensions approximately 5.87 x 5.28 x 5.04 inches.)
- Product name: Tachometer
- Ideal for: Diesel engines with mechanical takeoff and variable ratio altitude
- Part number: 32834
- Item type keyword: Tachometer-diesel-gauge
- Display size: 4 inches
- Material: Plastic
- Product type: Electromechanical gauge
- Dimensions: 5 x 5 x 6 inches (width x length x height)
- Item weight: 0.68 pounds
Specifications:
| Materials & Construction | |
| Color | black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Box Set | No |
| Display | 7 character LCD display |
| Gauge Size | 4" |
| Gauge Type | Tachometer - Diesel |
| Included Components | Faria Beede 32834 Euro Tachometer with Hourmeter (4000 RPM) Diesel - 4"", Black, Multicoloured |
| Range | 3 to 30 pulses per rev |
| Series | Euro Black |
| Voltage - Input Range (Volts) | 12/24 V |
| Sizing & Dimensions | |
| Height | 6 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 5 x 6 inches |
| Size | 4" |
| Weight | 0.68 pounds |
| Width | 5 inches |
| Technical Specifications | |
| For Use With | Alternator and variable ratio mechanical take off (MTO) diesel only |
| Warranty | Warranty |
