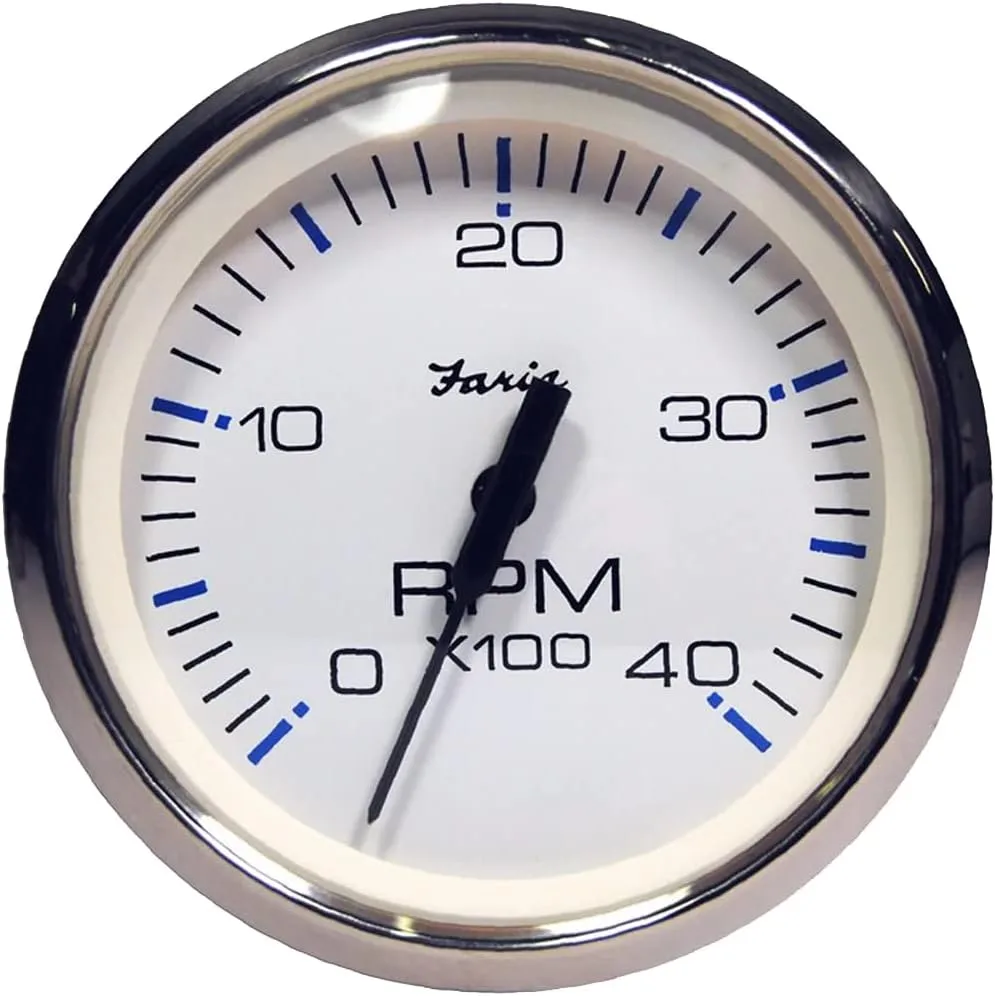

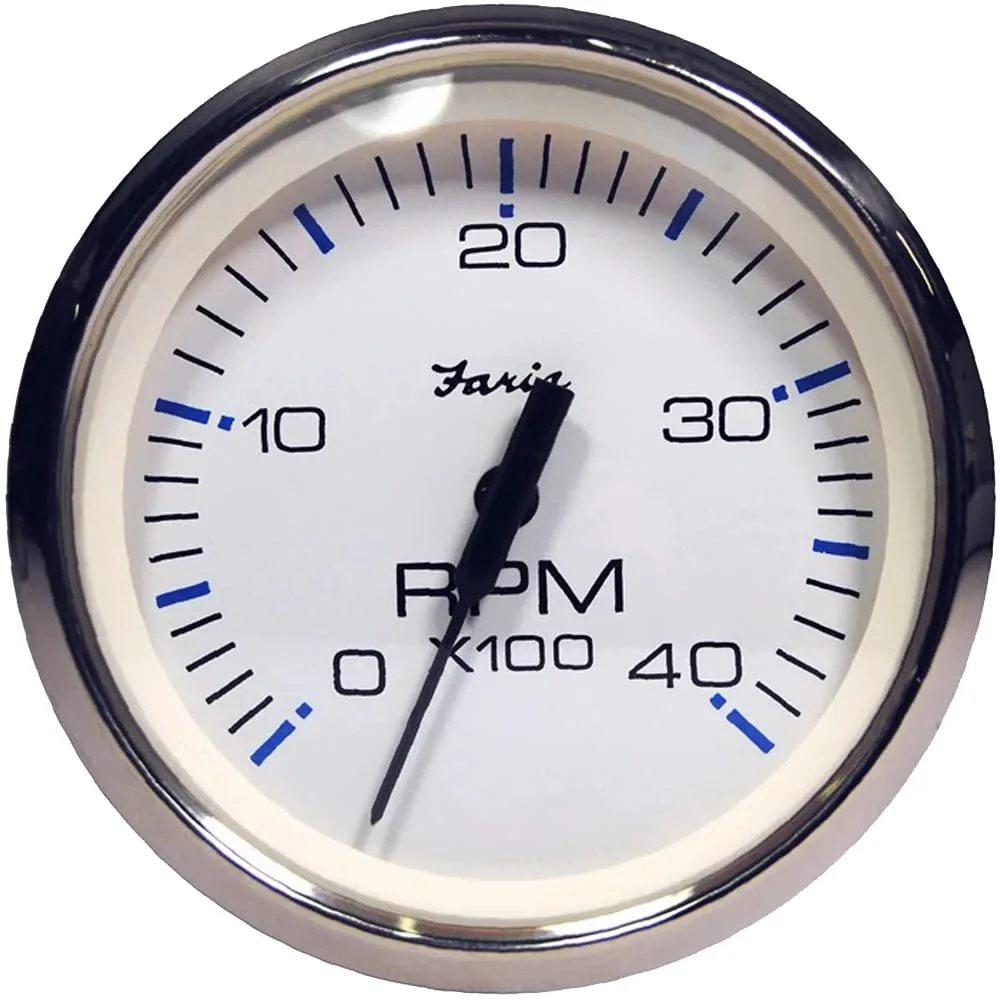

Faria Beede Instruments Faria Chesapeake White SS 434; Tachometer - 4,000 RPM (Diesel - Magnetic Pick-Up)
Customize
Chesapeake White SS 4" Tachometer - 4000 RPM (Diesel) (Magnetic Pick-Up). Perimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens. Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed. By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution. 4" - Hole size: 3.375" (85mm). Anti-scratch glass lens. Plastic cases for corrosion resistance and long life. 12 VDC negative ground. Can be adapted for 24 VDC systems. Factory P/N TD9733. Sold as an individual (Gauge Cover not included). Features: Color: White. Rugged, reliable construction. Multiple signal sources. Available for gas or diesel engines. Wide range of scales.
- Color: White
- Rugged, Reliable construction
- Multiple signal sources
- Available for gas or diesel engines
- Wide range of scales
- Faria Chesapeake White SS 434; Tachometer - 4,000 RPM (Diesel - Magnetic Pick-Up)
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Box Set | No |
| Factory P/N | TD9733 |
| Gauge Size | 4" |
| Gauge Type | Tachometer - Diesel |
| Item model number | 33818 |
| Manufacturer Part No | 33818 |
| Series | Chesapeake White |
| UPC | 759266338180 |
| Voltage - Input Range (Volts) | 12/24 V |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 6 inches |
| Product Dimensions | 6 x 5 x 5 inches |
| Size | 4 Inches |
| Weight | 10.6 ounces |
| Width | 5 inches |
| Technical Specifications | |
| Country of Origin | China |
| Item dimensions L x W x H | 6 x 5 x 5 inches |
| Screen Size | 4 Inches |
