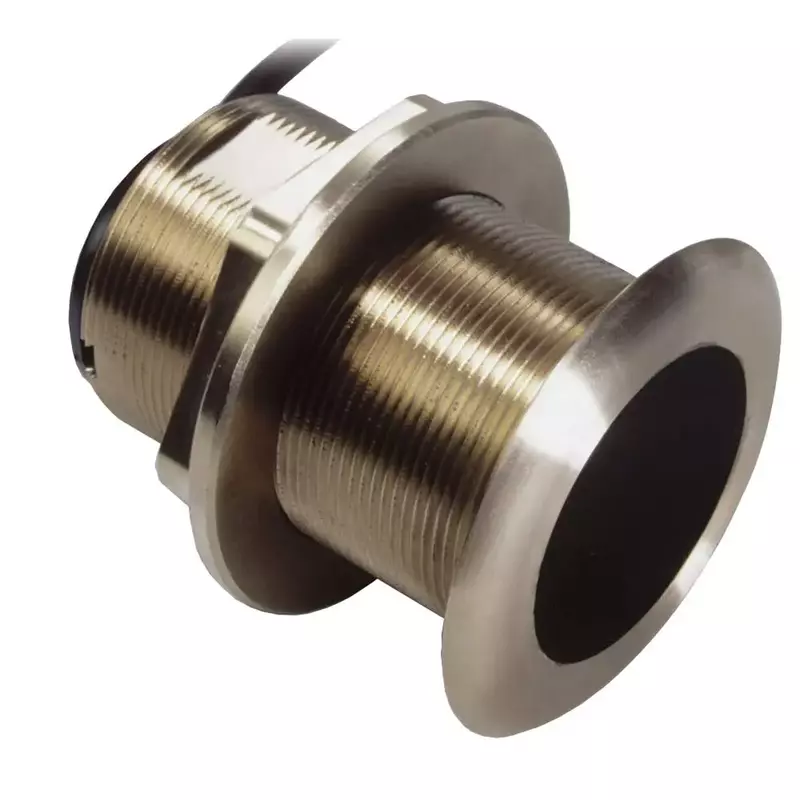

Garmin 010-10982-21 Bronze Thru-Hull Transducer 600W — Tilted 12° (8-Pin)
Customize
Garmin 010-10982-21 Bronze Thru-hull Transducer. B60 600W Tilted Element 12° - 8-Pin. This entry-level tilted bronze transducer accommodates deadrise angles of 8 to 15 degrees without a fairing. An excellent choice for fiberglass and wood hulls, this 600W 8-pin transducer has a depth of 800' to 1,200'; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees. Transducer kit comes with installation instructions — follow the instructions carefully to avoid damaging your boat. Do not use on metal hulls. When using with a 6-pin Garmin sounder, a transducer adapter cable is required. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
| Materials & Construction | |
| Color | bronze |
| Material | Bronze |
| Outer Material | Bronze |
| Product Details | |
| Color | bronze |
| Item model number | 010-10982-21 |
| Other display features | BISS Basic |
| Sizing & Dimensions | |
| Cable Length (inches) | 468 inches |
| Package Weight | 5.0 pounds |
| Technical Specifications | |
| Beamwidth | 45° to 12° |
| Cable Length (Feet) | 39' |
| Chirp | No |
| Depth Range | 800' to 1,200' |
| Imaging | Standard |
| Mounting Style | Thru-Hull |
| Operating Frequency | 50 to 200 kHz |
| Pins | 8 |
| Power | 600W |
| Speed Included | No |
| Temperature | Yes |
