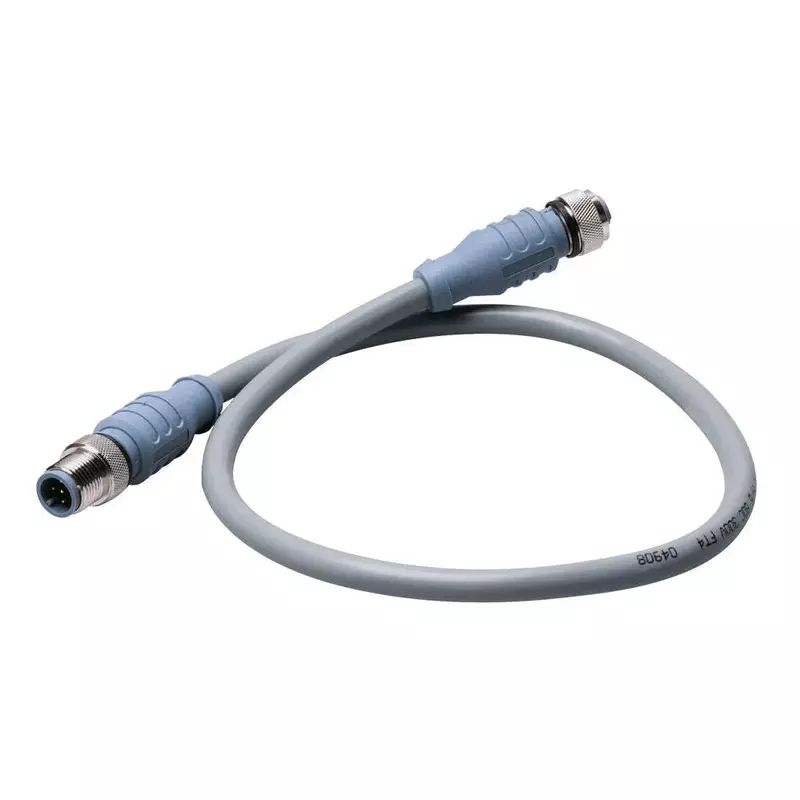

Maretron Micro Double-Ended Cordset - 4 Meter

Mechanical: Contact Carrier Material/Color: Thermoplastic PUR / Blue-Gray. Molded Body Material/Color: Thermoplastic PUR / Blue-Gray. Contact Material/Plating: Brass / Gold. Coupling Nut Material/Plating: Brass / Nickel. Connector Outside Diameter: 0.59". Electrical: Current Rating: 4.0 Amps. Voltage Rating: 250 V. Cable Outer Jacket: PVC / Gray. Conductor Insulation Material: HDPE (data pair), SRPVC (power pair). Number of Conductors: 4x22 AWG, 22 AWG drain wire. Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair). Environmental: Protection Class: IEC IP68, NEMA 1,3,4,6P. Temperature Rating: -40 °C to 80 °C (-40 °F to 176 °F). Approvals (Cable): UL: PLTC 75 °C Sunlight Resistant E90625, AWM 80 °C 300V. CSA: CMX-OUTDOOR-CMG LL54185 75 °C, AWM I/II A/B 80 °C 300V FT4. NMEA: NMEA 2000 Approved. Cable Length (Feet): 13'.
