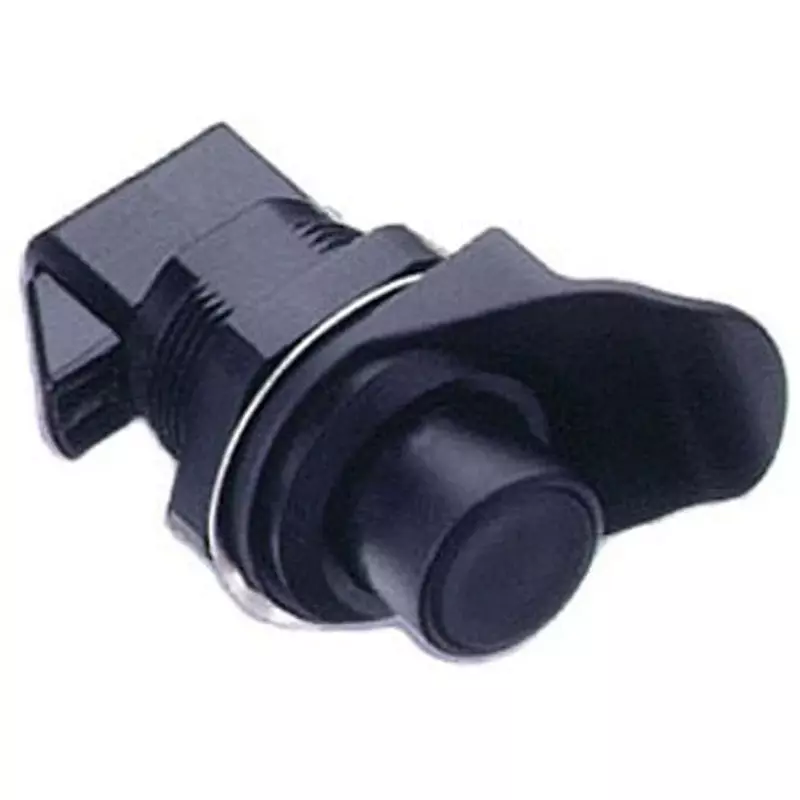

Southco Inc SC-9334 Push-Lock Push-to-Close Latch .415 Panel Thickness, Southco Slam Action Type Latches

Southco 93-304 Series Plastic Push To Close Latch, Pull Tab in Line with Latching Pawl, Non Locking, 0.00"-0.41" Panel Thickness, 0.88"-0.91" Grip Range, Black. No restriction slam action push button latch. Corrosion resistant with in line pull tab. Push button opening. Single hole installation. Optional ejector spring helps prevent rattles. Easy installation, quick action for opening and closing door panels. A lubricious, uniform black fluoropolymer finish for metallic parts. It provides up to 400 hours of salt spray resistance per ASTM B-117, without evidence of red rust. It is usually applied over zinc plating. Stainless steel spring. Pull tab in line with latching pawl style. Maximum tightening torque on mounting nut: 7.9 N m. Threaded body and nut installation. Pull tab is a supplemental component that integrates the latch mechanism and a pull handle in a latch arrangement. 0-0.41-inches panel thickness.

• Includes mounting screws
• 530 n maximum working load
• Optional ejector spring helps prevent rattles
• Single hole installation
• Push button opening
