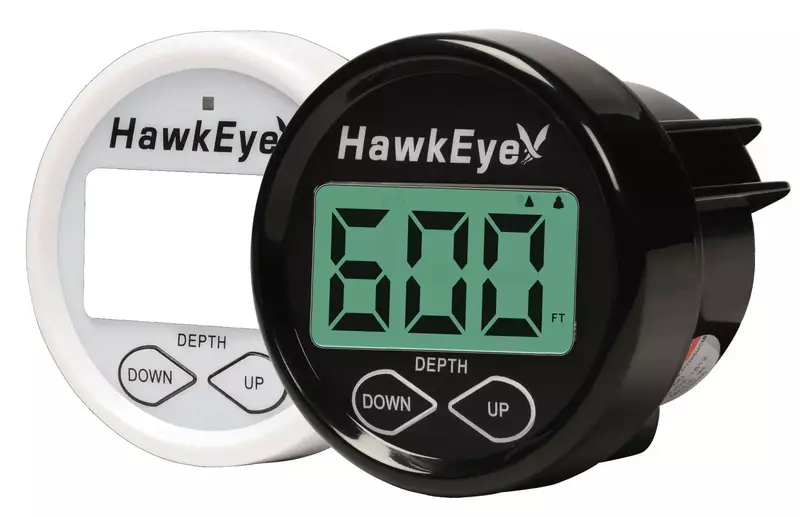

HAWKEYE DepthTrax 2B In-Dash Transom Mount Digital Depth Finder — 600 ft

DepthTrax In-Dash Digital Depth Gauge - Transom Mount The DepthTrax 2B includes advanced sonar, depth alarm, and keel offset capabilities. With updated SONAR algorithms, the DepthTrax 2B reachs new depths. Able to reach depths of 600 ft and tuned for high speed performance, the DepthTrax 2B reaches deeper and performs faster than any depth finder. The DepthTrax 2B delivers a combination of performance and affordability unrivaled in any other depth sounder. Features: Algorithmic programming significantly reduces false readings and produces unmatched precision EasyTouch programming allows one-touch access to the user settings User programmable keel offset automatically adjusts depth readings for vessels’ draft requirements Selectable Imperial or Metric readout Dual Upper and Lower depth alarms can be set throughout the full depth range 3-Stage Advanced Warning System clearly signals an alarm condition with an audible alarm, LED and LCD indicators with one-touch alarm muting Automatic memory retention of all user settings Removable face system - includes White & Black faceplates and White/Black trim rings No glare, polarized LCD icon display with storage sun cover SoftGlow backlit display and programming keys - low intensity, low temperature lighting prevents eye strain and condensation while providing unparalleled nighttime viewing Technical Specifications: Gauge Dimensions (Diameter x Depth) - 2" x 1.75" (51 x 45mm) Screen Dimensions (Height x Width) - 1.65" x .87" (42 x 22mm) Gauge Cut-out Size - 2" Operating Temperature - 0 to 160° F (-18 to 71°C) Depth Range - 2.5' to 600' (.7 to 180 M) Transducer Type - Transom Mount Transducer Frequency - 200kHz Transducer Beam Angle - 14° Transducer Cable Length - 30' (9 M) Power Requirement - 12 - 14 VDC In the Box: Gauge Bezel/Faceplate - Black and White Display cover Mounting hardware Transducer - transom mount w/30' cable Instruction manual *Sold as an Individual, Box Set: No , Gauge Size: 2" , Gauge Type: Depth Sounder , Voltage - Input Range (Volts): 12 - 14

• Glue-In Installation is for NON-CORED fiberglass hulls or aluminum hulls thinner than 1/8” ONLY. Glue-in mounting of the transducer is NOT suitable for all vessels.
• No glare, polarized LCD icon display with storage sun cover allows for spot free viewing with or without sunglasses; Algorithmic programming significantly reduces false readings and produces unmatched precision
• 3-stage Advanced Warning System clearly signals an alarm condition with an audible alarm, an ultra bright red LED warning light and LCD alarm indicators
• Includes Dual Mount Transom Or Glue In Transducer That Can Shoot Through solid fiberglass hulls and up to 1/8-inch aluminum hulls
• Delivers uninterrupted depth readings from 2.5 to 600 feet on the largest display available on an In-Dash Depth Sounder up to 60 mph. Transducer Frequency-200 kHz
