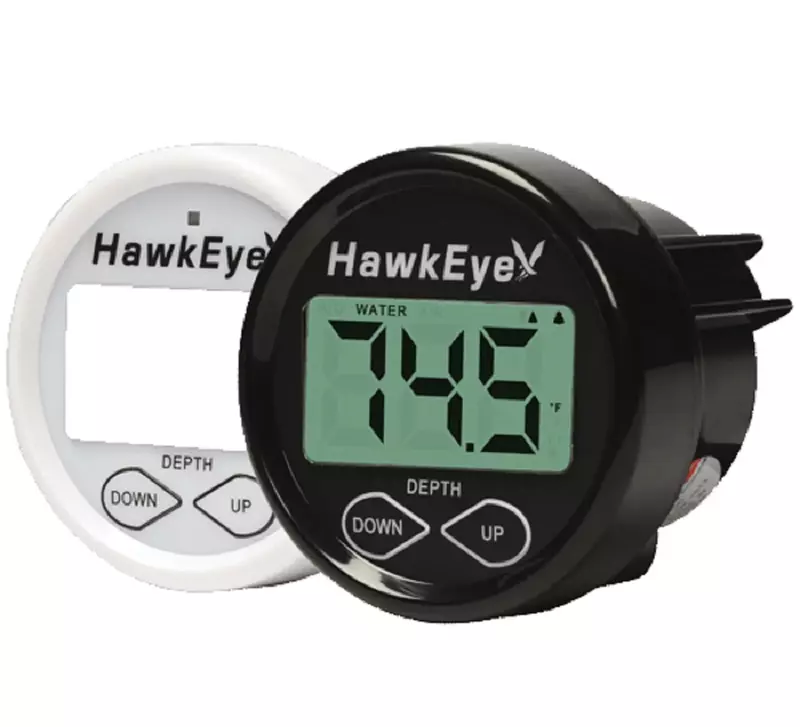

HawkEye DT2BX-TM In-Dash Depth Sounder with Air and Water Temperature (Includes Airmar Transom Mount Transducer)
Customize
DepthTrax In-Dash Digital Depth & Temp Gauge - Transom Mount. The DepthTrax 2BX includes advanced sonar, depth alarm, and keel offset capabilities of the DepthTrax 2B, and integrates dual temperature displays plus an Airmar ultra-sensitive transom mount transducer. With a button press the DepthTrax 2BX displays air or water temperature via integrated sensors in the head unit and transducer. Algorithmic programming reduces false readings and improves precision. EasyTouch one-touch programming, user-programmable keel offset, selectable Imperial/Metric readout, dual depth alarms, a 3-stage advanced warning system (audible alarm, LED and LCD indicators), SoftGlow backlit display and keys, removable face system with interchangeable white & black faceplates and trim rings, polarized LCD (no glare) with storage sun cover, and automatic memory retention of user settings. Includes gauge bezel/faceplate (black and white), display cover, mounting hardware, transom-mount transducer with 30' cable and instruction manual. Gauge dimensions, screen size, operating range, transducer cable length and power requirements are provided for installation and operation.
- HawkEye products are manufactured both in the USA and overseas using technology designed and developed with American ingenuity
- No glare, polarized LCD icon display with storage sun cover allows for spot free viewing with or without sunglasses; Algorithmic programming significantly reduces false readings and produces unmatched precision
- Water or air temperature readings are displayed in degrees Fahrenheit or Celsius on a Soft Glow backlit LCD display
- Includes Transom Mount Temp Transducer With 30 Feet Of Cable
- 3-stage Advanced Warning System clearly signals an alarm condition with an audible alarm, LED warning light and LCD alarm indicators with one-touch alarm muting
- Delivers uninterrupted depth readings from 2. 5 to 600 feet on the largest display available on an In-Dash Depth Sounder up to 60 mph
Materials & Construction
- Color:Interchangeable Black & White Face Plates & Trim Rings.
- Material:Plastic
- Outer Material:Plastic
Product Details
- Box Set:No
- Display Type:LCD
- Gauge Type:Depth Sounder
- Included Components:NORCROSS ELECTRONICS
- Model Name:Boat Mount Depth Finder
- Mounting Type:Transom-mount or thru-hull
- Power Source:Battery Powered
- Screen Size:2 Inches
- Style:Depth Sounder (with Transom Mount & Temp. Reading)
- Voltage - Input Range (Volts):12 - 14
Sizing & Dimensions
- Height:6 inches
- Length:5 inches
- Product Dimensions:5 x 3 x 6 inches
- Size:600 Feet
- Weight:2 pounds
- Width:3 inches
Technical Specifications
- Power Requirement:12 - 14 VDC
