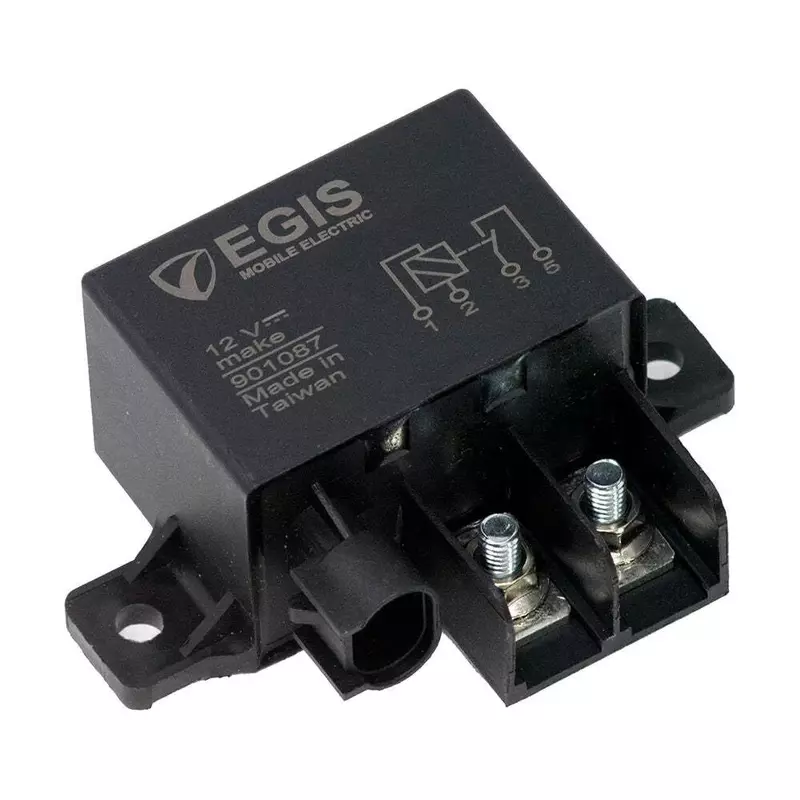

Egis Relay 12V 150A w/Resistor, Black, 901087
Customize
Relay 12V 150A with Resistor. This is an automotive-rated relay/industry standard drop-in replacement for Tyco/Amp. The relay switch carries high-amp electrical currents in high ambient temperatures/wet environments. Features: Delphi Metripak connector built-in to the enclosure (sealed enclosure). Specifications: Continuous Current @85C (Amps): 180; Intermittent Current @85C (Amps): 240; Minimum Operate Voltage (VDC): 7.2; On-State Current Draw @12V (mA): 325; Release Voltage (VDC): 2.2; Switching Current @13.5 VDC (Amps): 300. Additional product details from marketplace listing: Operation Mode: Automatic; Mounting Type: Panel Mount; Current Rating: 150 Amps; Connector Type: Plug-In; Coil Voltage: 12 Volts (DC); Wattage: 3.9 watts; Specification Met: Sae J2544, Iec/En 60947, Iso/Ts 16949, Culus, Oem, Ul, Ip67, Nema. Item Dimensions (LxWxH): 4 x 3 x 2 inches. Item Weight: 9.6 ounces. Package Dimensions (LxWxH): 4 x 3 x 2 inches. Package Weight: 0.6 Pounds. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Great Product
Materials & Construction
- Outer Material:Plastic
Product Details
- Coil Voltage:12 Volts (DC)
- Color:Black
- Connector Type:Plug-In
- Current Rating:1.5E+2 Amps
- Material:Plastic
- Mounting Type:Panel Mount
- Number of Items:1
- Operation Mode:Automatic
- Specification Met:Sae J2544, Iec/En 60947, Iso/Ts 16949, Culus, Oem, Ul, Ip67, Nema
Sizing & Dimensions
- Height:2 inches
- Length:4 inches
- Product Dimensions:4 x 3 x 2 inches
- Weight:9.6 ounces
- Width:3 inches
Technical Specifications
- Continuous Current @85C (Amps):180
- Intermittent Current @85C (Amps):240
- Minimum Operate Voltage (VDC):7.2
- On-State Current Draw @12V (mA):325
- Release Voltage (VDC):2.2
- Switching Current @13.5 VDC (Amps):300
