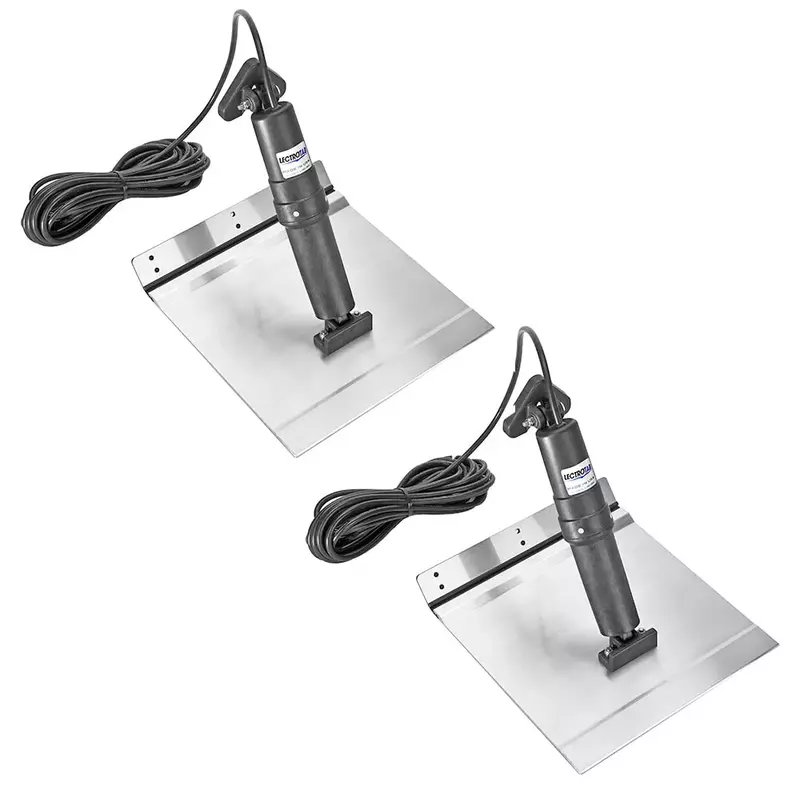

Lectrotab XKA Aluminum Alloy Trim Tab - 12x12 [XKA12X12A]
Customize
XKA Aluminum Alloy Trim Tab - 12 x 12. The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of aluminum-hulled boats and are an economical option for a wide range of watercraft. All aluminum alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge and sealed with a corrosion-resistant epoxy coating. Combined with a precision-engineered electro-mechanical actuator assembly packaged in a non-metallic permanently sealed housing, the kit delivers quiet operation and a non-hydraulic, maintenance-free design. The unit is corrosion free, ensures accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. No components need to be installed inside the boat. Unlike hydraulic trim tabs, there is no oil to leak. The actuator assembly is available with standard or low-profile transom mounting brackets. Features include: corrosive resistant epoxy coating; equivalent strength to 10 gauge stainless steel; "no-break" polypropylene hinge tested over 300,000 cycles; upper ram seal protection; internal pressure equalization; internal brake system to prevent unwanted tab movement; quiet operation; actuators fully load tested to push 1000 lbs of force; and non-metallic external structure that resists corrosion and sun/water deterioration. Kit includes two (2) aluminum alloy tabs, two (2) actuators with 23' (7 M) cables, and an instruction manual. Control switch not included.
- Lectrotab XKA Aluminum Alloy Trim Tab - 12x12 [XKA12X12A]
Specifications:
| Materials & Construction | |
| Material | Aluminum Alloy |
| Outer Material | Aluminum Alloy |
| Product Details | |
| Actuator Type | Electro-Mechanical |
| Construction | Aluminum Alloy |
| Sizing & Dimensions | |
| Height | 6 inches |
| Length | 15 inches |
| Product Dimensions | 15 x 15 x 6 inches |
| Size | 12 x 12 inches |
| Weight | 15.1 pounds |
| Width | 15 inches |
