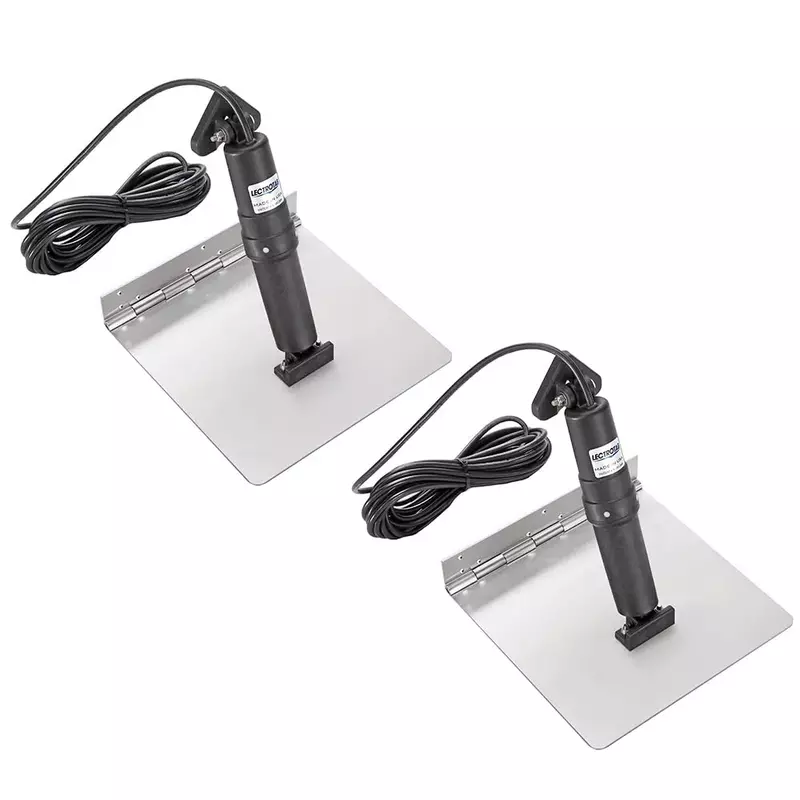

XKA Stainless Steel Trim Tab - 9 x 18. The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge, eliminating the need for welding. Combined with precision-engineered electro-mechanical actuators, this kit delivers quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion resistant, ensures accurate tab positioning, provides maximum lift force, and is self-contained for easy installation. Actuator assembly is packaged in a non-metallic permanently sealed housing with no components required inside the boat. Unlike hydraulic trim tabs, there is no oil to leak. Actuators are fully load tested to push 1000 lbs of force. In the box: two (2) stainless steel tabs, two (2) actuators with 23' (7 m) cables, and instruction manual. Trim Tab Size (L x W): 9" x 18". Construction: 12 gauge, 304 Stainless Steel. Actuator type: Electro-Mechanical. Actuator DC Voltage: 12 V.
| Materials & Construction | |
| Color | Multicolor |
| Construction | Stainless Steel |
| Material | Stainless Steel |
| Product Details | |
| Included Components | Does not apply |
| Model Name | XKA9X18 |
| Number of Items | 1 |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 25 inches |
| Product Dimensions | 25 x 16 x 5 inches |
| Size | 9 x 18 inches |
| Weight | 21.9 pounds |
| Width | 16 inches |
| Technical Specifications | |
| Actuator Type | Electro-Mechanical |
