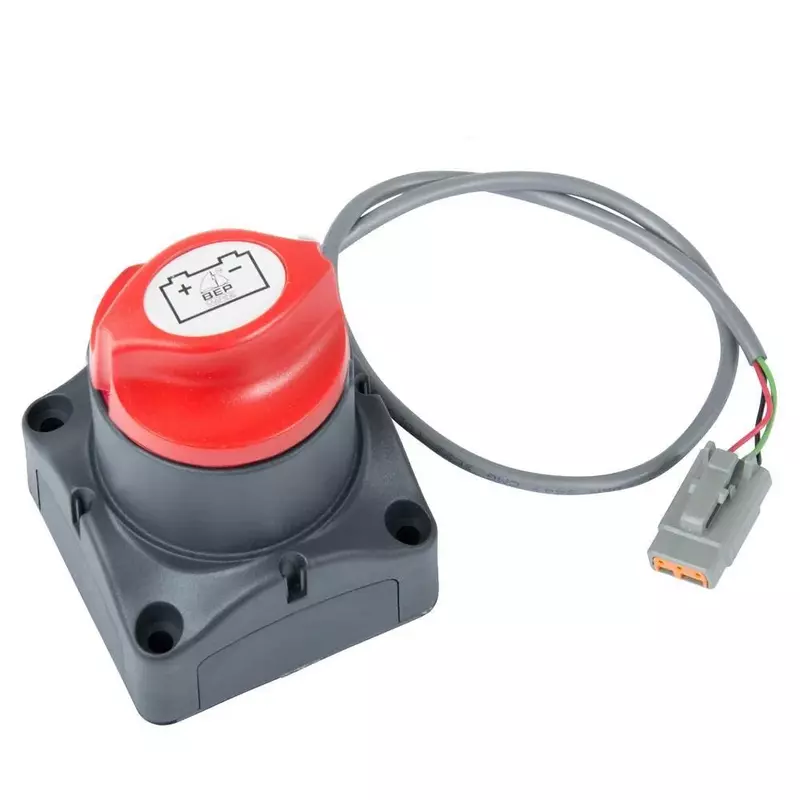

BEP 701-MD-D Remote Operated Battery Switch with Deutsch Connector
Customize
Remote Operated Battery Switch, 275A Cont - Deutsch Plug. The MD range of battery switches allow you to install the battery switch very close to the battery, to remotely manage the increased electrical loads found on today's boats. This reduces cable lengths and sizes, providing significant savings in expense and weight of copper battery cable. They are ideal for remote isolation of bow and stern thrusters. Remote operation Battery switch can be mounted alongside battery, reducing cable lengths and cable sizes. (Large cost and weight saving in copper cables) Reduced installation labor due to shorter battery cable runs Manual override option to meet CE/ABYC requirements Power Draw with switch off: 12mA LED status identification for remote control switch Same capacities/specifications and mounting options as standard BEP battery switches Uses interchangeable labeling system (Item # 713 or 715) Specifications LxWxH: 2.7" x 2.7" x 4" Rating (A DC) Cont: 275 Rating (A DC) Inter: 455 Rating (A DC) Crank: 1250 Voltage (V DC): 9.5-32 Function: On/Off Stud Size: 2x (3.8"/10mm) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. LED status id for remote control switch. Can be surface or rear mounted. Marine grade application Consistent with international standards Switch, with Deutsch Connector 275A Motorized.
- Product Type: ELECTRONIC SWITCH
- Package height: 11.4 cm
- Package width: 7.5 cm
- Package length: 7.5 cm
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Actuator Type | Remote |
| Circuit Type | 1-way |
| Connector Type | Plug In |
| Contact Material | Plastic |
| Contact Type | Electrical Contact |
| Control Method | Remote |
| Current Rating | 275 Amps |
| Included Components | Switches |
| International Protection Rating | IP54 |
| Number of Positions | 2 |
| Operating Voltage | 32 Volts (DC) |
| Operation Mode | Manual |
| Terminal | marine |
| Warranty | Warranty |
| Wattage | 8.8E+3 |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 3 x 3 inches |
| Size | One Size |
| Weight | 0.6 pounds |
| Width | 3 inches |
| Technical Specifications | |
| Contact Type | Electrical Contact |
| Current Rating | 275 Amps |
| International Protection Rating | IP54 |
| Operating Voltage | 32 Volts (DC) |
| Terminal | marine |
