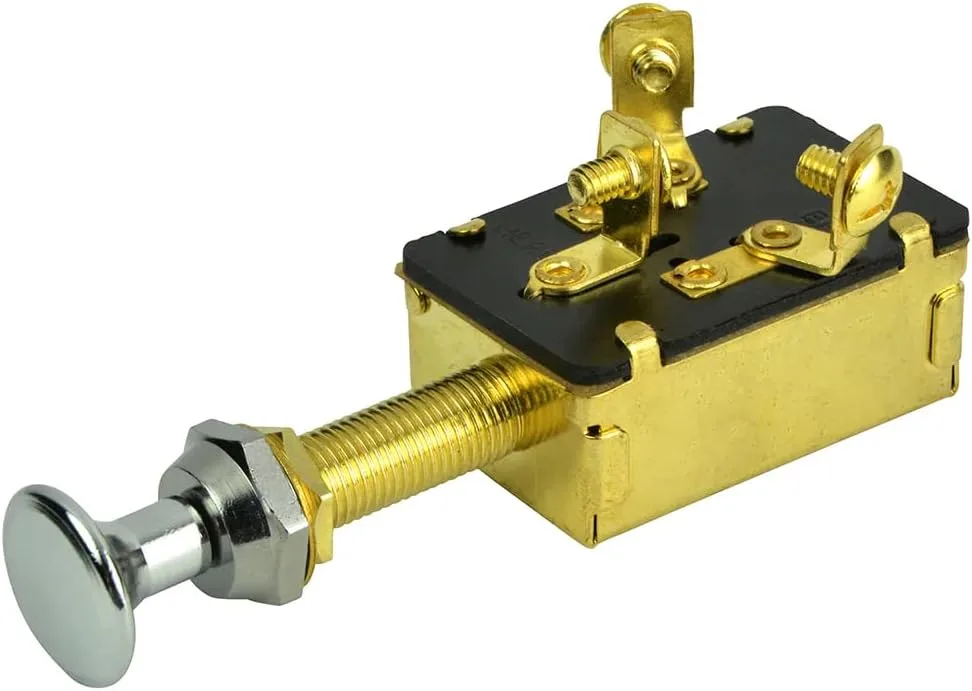

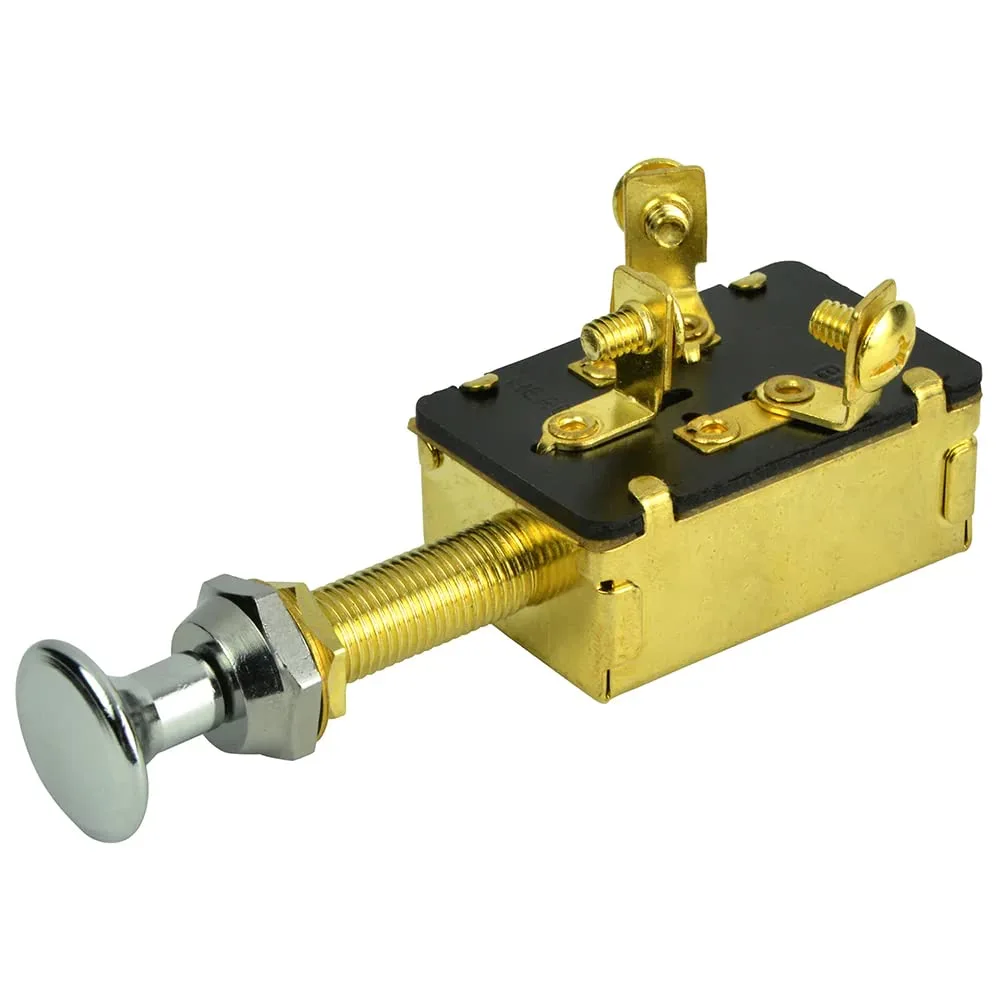

BEP 3 Position SPDT Off/On1/On1&2 Push Pull Switch
BEP 3-position SPDT push-pull switch — single-pole double-throw, brass construction, 6–36V DC, rated 10A at 12V, #8-36 screw terminals, fits 1" panels; replaces Cole Hersee M-476.
$26.99 $26.99
Customize
Available Quantity
10 Product Details
3-Position SPDT Push-Pull Switch - OFF/ON1/ON1 & 2 Single pole, double throw switch turns on position 1 or position 1 and 2. Features: Heavy-duty, noncorrosive construction with moisture-repellent insulators Brass case, stem, terminals and mounting hardware All knobs are screw-on type Nominal voltage is 6-36V DC. Rated for 10A at 12V DC #8-36 screw terminals Fits panels up to 1" thick Same as Cole Hersee part number M-476 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
- Single pole, double Throw switch turns on position 1 or position 1 and 2
- Heavy-duty, noncorrosive construction with moisture-repellent insulators
- Brass case, stem, terminals and mounting hardware. All knobs are screw-on type
- Nominal voltage is 6-36v DC. Rated for 10a at 12V DC. Fits panels up to 1 inch thick. #8-36 screw terminals
- Replaces Cole hersee part number m-476
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Brass |
| Outer Material | Brass |
| Product Details | |
| Action | On-On-Off |
| Actuator Type | push pull |
| Circuit Type | SPDT |
| Connectivity Protocol | X-10 |
| Connector Type | Screw |
| Contact Material | Brass |
| Contact Type | Spdt |
| Control Method | Touch |
| Current Rating | 10 Amps |
| Included Components | Push Pull Switch |
| International Protection Rating | IP54 |
| Number of Positions | 3 |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-NONE-OFF |
| Terminal | Spdt |
| Throw/Pole | Spdt |
| Sizing & Dimensions | |
| Height | 2.75 inches |
| Length | 6.5 inches |
| Product Dimensions | 6.5 x 2.5 x 2.75 inches |
| Size | One Size |
| Weight | 3.68 ounces |
| Width | 2.5 inches |
| Technical Specifications | |
| Current Rating | 10 Amps |
| Operating Voltage | 12 Volts |
| Warranty | Warranty |
| Wattage | 1.2E+2 |
