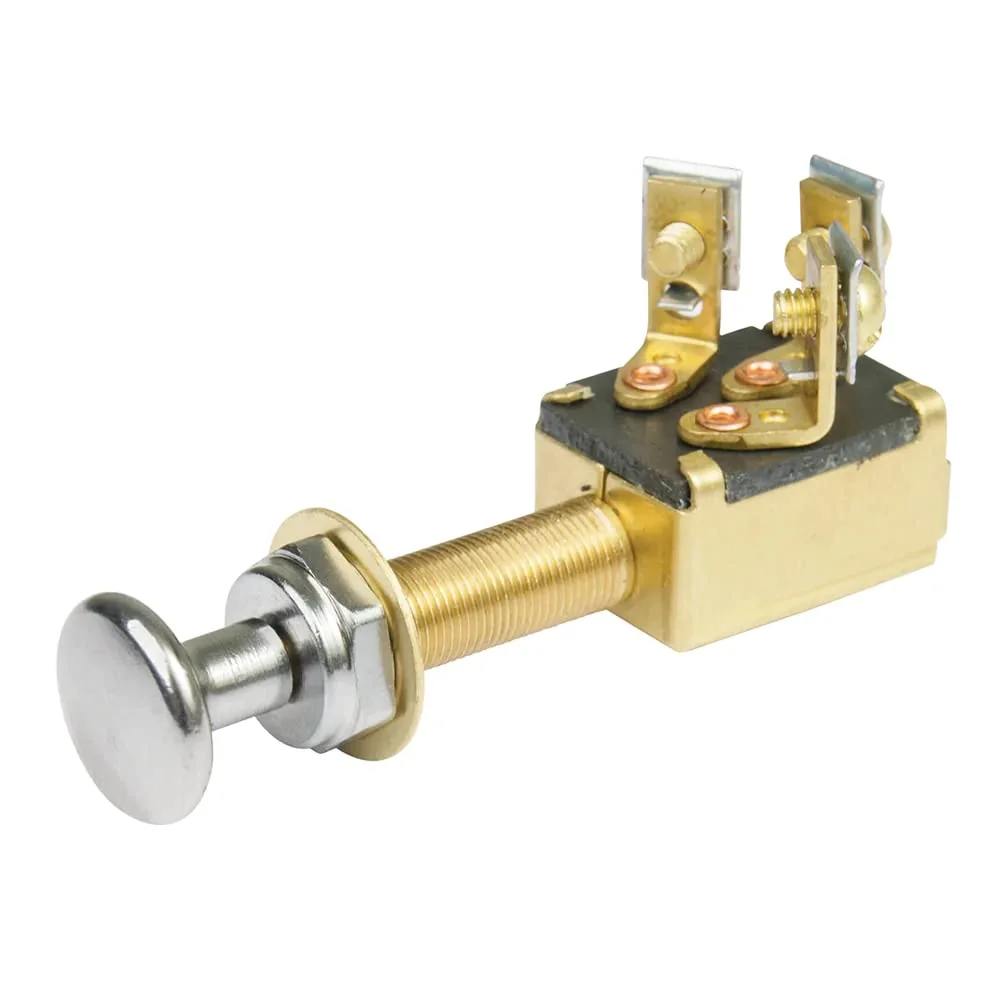

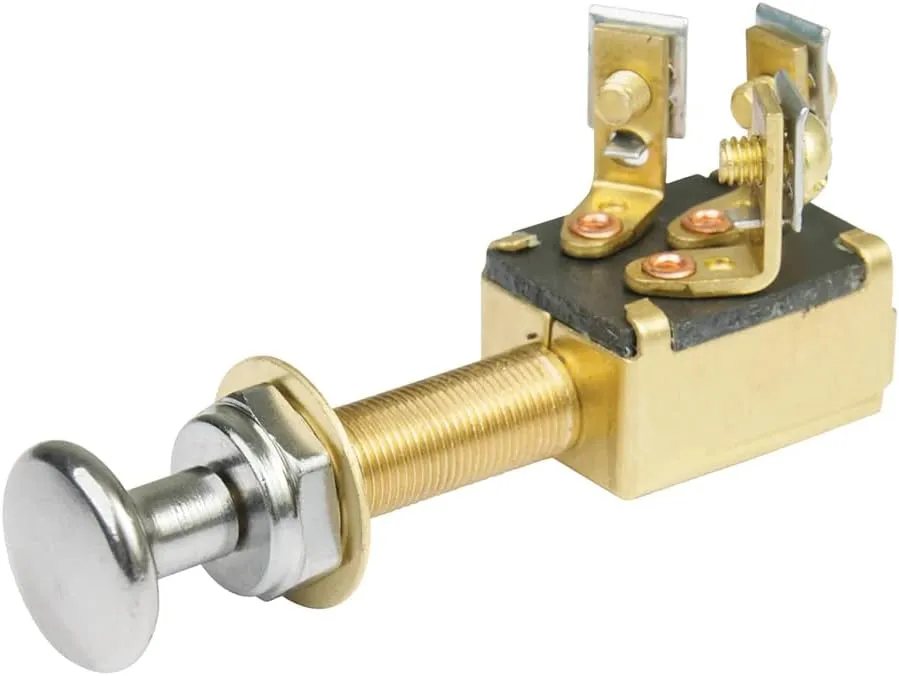

BEP 1001302 SPST Push-Pull Switch, 2 Position - Off/On
BEP 1001302 2-position SPST push-pull switch (OFF/ON) for marine and boat electrical use; heavy-duty brass construction, moisture-repellent insulators, #8-32 screw terminals; rated 6–36V DC, 10A at 12V; panel-mount.
$21.99 $21.99
Customize
Available Quantity
4 Product Details
2-Position SPST Push-Pull Switch - OFF/ON Single pole, single throw switch turns one circuit on and off. Features: Heavy-duty, noncorrosive construction with moisture-repellent insulators Brass case, stem, terminals and mounting hardware All knobs are screw-on type Nominal voltage is 6-36V DC Rated for 10A at 12V DC #8-32 screw terminals Fits panels up to 1" thick Same as Cole Hersee part number M-482 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Throw/Pole: SPST , Color: Chrome , Action: ON-OFF
- Replaces Cole hersee part number m-482
- Nominal voltage is 6-36v DC. Rated for 10a at 12V DC. Fits panels up to 1 inch thick. #8-32 screw terminals
- Brass case, stem, terminals and mounting hardware. All knobs are screw-on type
- Heavy-duty, noncorrosive construction with moisture-repellent insulators
- Single pole, double Throw switch turns one circuit on and off
Specifications:
| Materials & Construction | |
| Color | Chrome |
| Material | Brass |
| Product Details | |
| Action | On-Off |
| Contact Material | Brass |
| Included Components | Push Pull Switch |
| Model Name | 2 Position SPST Push-Pull Switch - Off/On |
| Throw/Pole | Spst |
| Sizing & Dimensions | |
| Height | 1.8 inches |
| Length | 3.3 inches |
| Product Dimensions | 3.3 x 1.25 x 1.8 inches |
| Size | Single Pole Double Throw |
| Weight | 2.4 ounces |
| Width | 1.25 inches |
| Technical Specifications | |
| Actuator Type | push-pull |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | screw |
| Contact Type | Normally Open |
| Control Method | Touch |
| Current Rating | 10 Amps |
| International Protection Rating | IP54 |
| Number of Positions | 2 |
| Operating Voltage | 36 Volts |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Wattage | 1.2E+2 |
