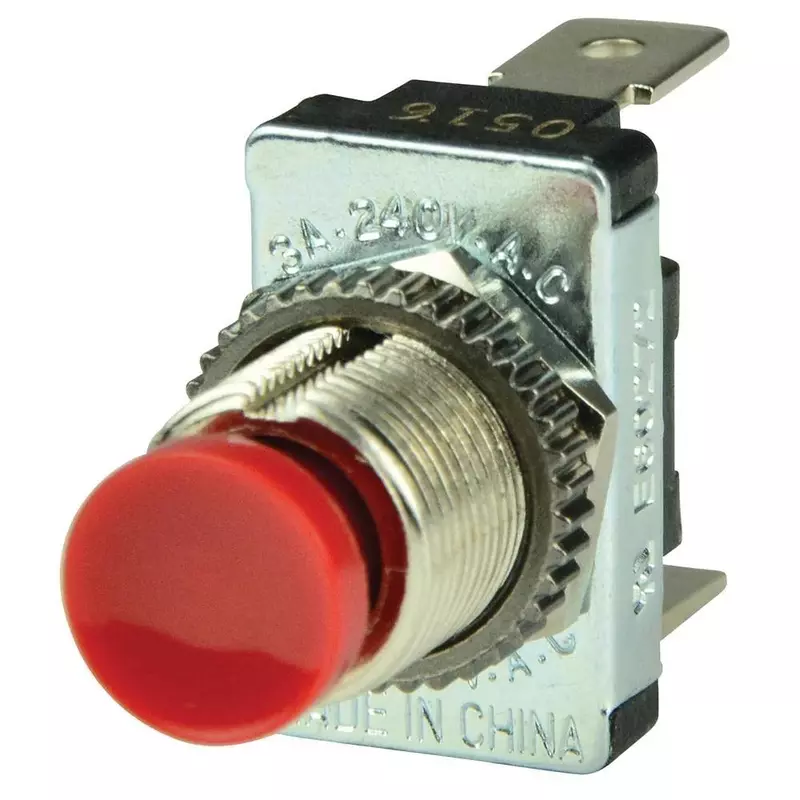

BEP 1001401 SPST Momentary Contact Switch, Red - Off/(On)
Customize
Red SPST Momentary Contact Switch - OFF/(ON). Single pole, single throw momentary switch turns one circuit on and off. Compact red push button switch can be used for horn, starter, and other momentary applications. Features: Nominal voltage is 12V/24V DC. Rated for 5A at 12V DC, 5A at 24V DC. Two 1/4" blade terminals. Fits panels up to 1/4" thick. Same as Cole Hersee part number 9187-02. BEP 1001401 SPST Momentary Contact Switch, Red - Off/(On). Contact Material: Brass. Actuator Type: push button switch. Mounting Type: Panel Mount. Item dimensions L x W x H: 2 x 0.69 x 2.13 inches. Terminal: Button. Contact Type: Normally Open. Operating Voltage: 24 Volts. Current Rating: 5 Amps. Operation Mode: Off, Push Button. Package details: Package Dimensions 4.96 x 2.8 x 2.2 inches, Package Weight 0.02 Kilograms.
- Replaces Cole hersee part number 9187-02
- Two 1/4" blade terminals. Fits panels up to 1/4" thick
- Nominal voltage is 12V/24V DC. Rated for 5a at 12V DC, 5a at 24V DC
- Compact Red push button switch can be used for horn, Starter, and other momentary applications
- Single pole, single Throw momentary switch turns one circuit on and off
Specifications:
| Materials & Construction | |
| Color | Red |
| Contact Material | Brass |
| Material | Brass |
| Product Details | |
| Actuator Type | push button switch |
| Connectivity Protocol | X-10 |
| Control Method | Touch |
| Controller Type | Push Button |
| Included Components | BEP 1001401 SPST Momentary Contact Switch, Red - Off/(On) |
| Mounting Type | Panel Mount |
| Number of Positions | 1 |
| Operation Mode | Off,Push Button |
| Terminal | Button |
| Throw/Pole | Spst |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2.13 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.69 x 2.13 inches |
| Product Weight | 0.05 Pounds |
| Size | One Size |
| Weight | 0.8 ounces |
| Width | 0.69 inches |
| Technical Specifications | |
| Contact Type | Normally Open |
| Current Rating | 5 Amps |
| Operating Voltage | 24 Volts |
