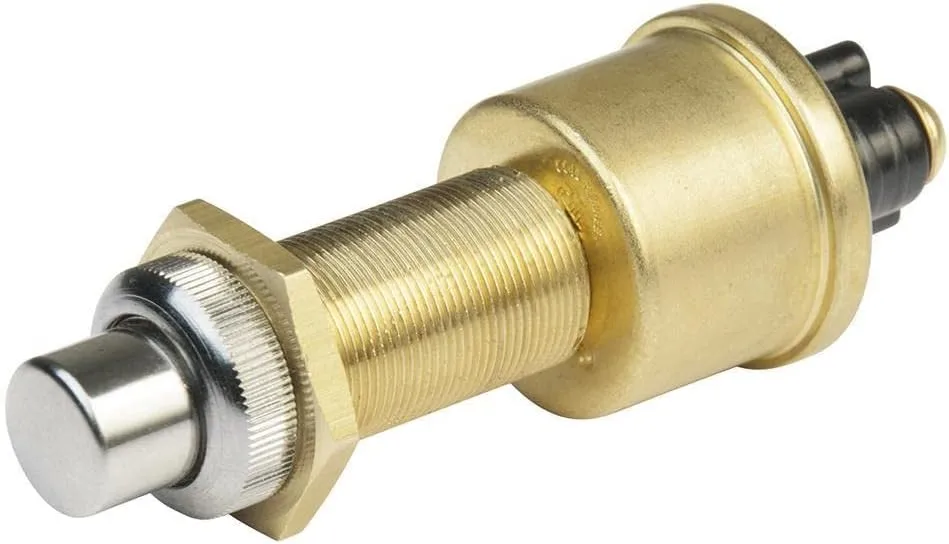

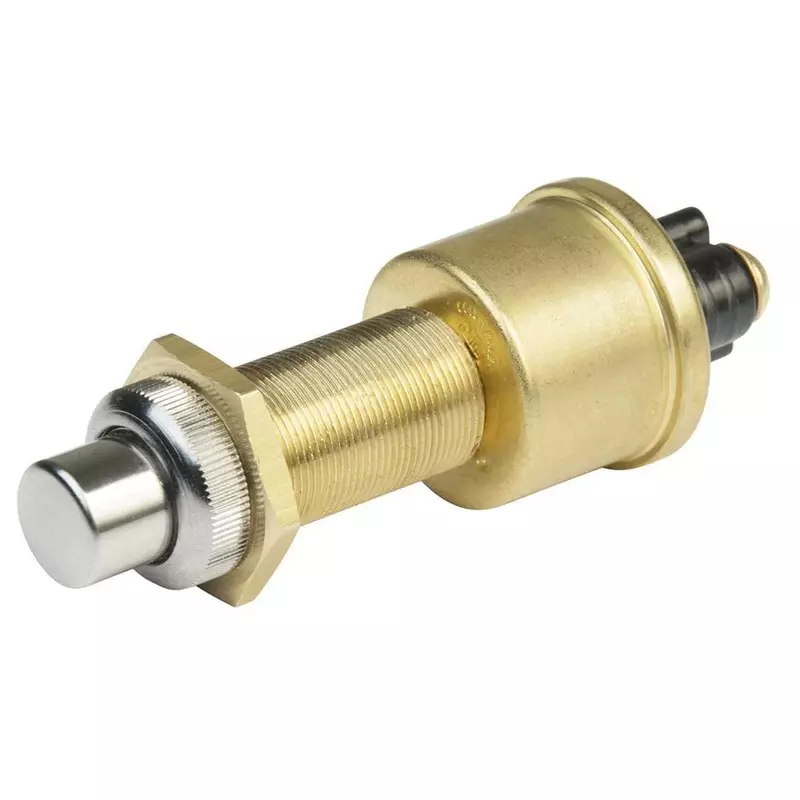

BEP 1001504 SPST Heavy-Duty Push Button Switch, 2 Position - Off/(On)
Customize
2-Position SPST Heavy-Duty Push Button Switch - OFF/(ON) - 35 Amp. Single pole, single throw switch turns one circuit on and off. Can be used for intermittent windshield wiper or horn control. Features: Replacement cap 1001502. Nominal voltage is 6-36V DC. Rated for 35A at 12V DC. #8-32 screw terminals. Fits panels up to 1" thick. Same as Cole Hersee part number M-490. Manufacturer (as listed in product data): Marinco Electrical Group. Contact material: Brass. Actuator type: push button switch. International Protection Rating: IP66. Number of positions: 2. Package and item dimensions and weights are provided for shipping and installation. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Replaces Cole hersee part number m-490
- 8-32 screw terminals. Fits panels up to 1 inch thick
- Nominal voltage is 6-36v DC. Rated for 35a at 12V DC. #8-32 screw terminals. Fits panels up to 1 inch thick. Nominal voltage is 6-36v DC. Rated for 35a at 12V DC
- Can be used for intermittent windshield wiper or horn control
- Single pole, single Throw switch turns one circuit on and off
Specifications:
| Materials & Construction | |
| Color | Gold |
| Contact Material | Brass |
| Material | Brass |
| Product Details | |
| Action | (On)-Off |
| Actuator Type | push button switch |
| Connector Type | Screw |
| Contact Type | Normally Open |
| Control Method | Touch |
| Controller Type | Push Button |
| Included Components | Push Button Switches |
| Model Name | 2 Position SPST Heavy-Duty Push Button Switch - Off/(On) |
| Number of Positions | 2 |
| Operation Mode | OFF-(ON) |
| Terminal | Screw |
| Throw/Pole | Spst |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Product Weight | 0.13 Pounds |
| Size | 6-36V DC |
| Weight | 2.08 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| Connectivity Protocol | X-10 |
| Current Rating | 35 Amps |
| International Protection Rating | IP66 |
| Operating Voltage | 35 Volts (DC) |
| Upper Temperature Rating | 80 Degrees Celsius |
| Wattage | 420 watts |
