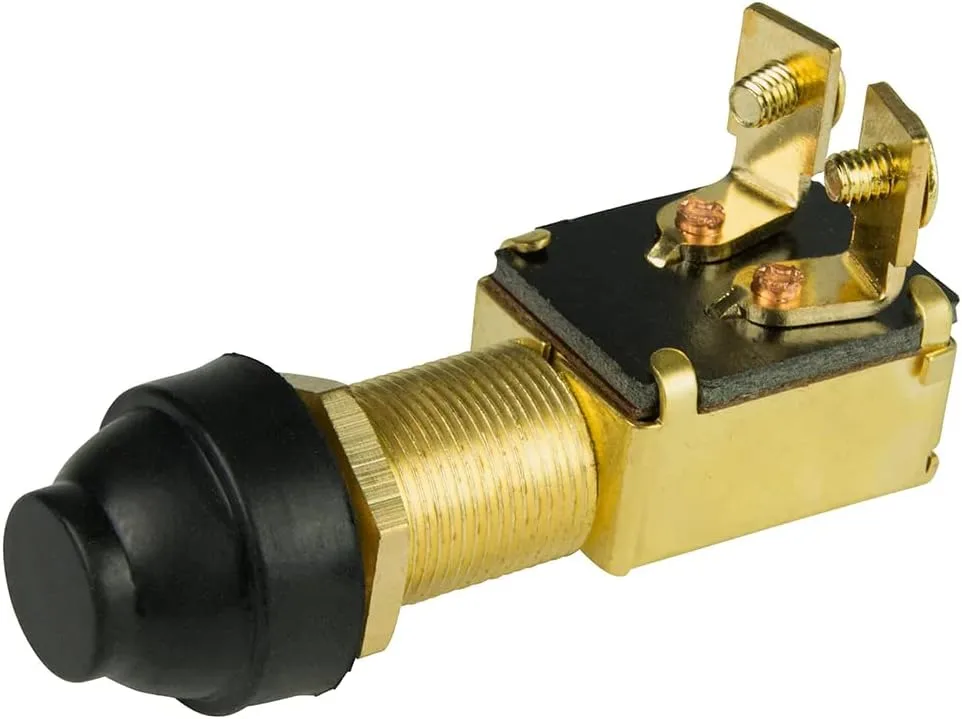

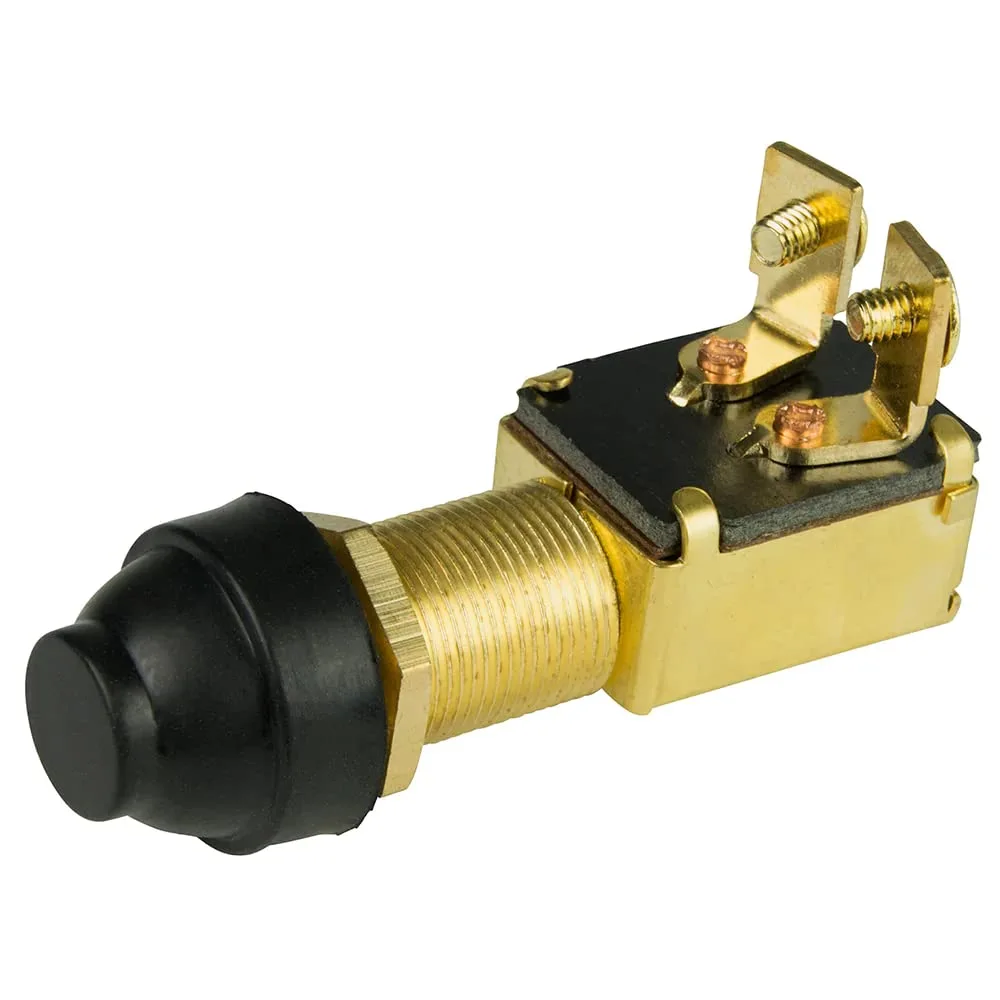

BEP 2-position SPST push button switch (OFF/(ON)) designed for intermittent control applications such as horns and windshield wipers. Single pole, single throw contact arrangement; surface-mount push button actuator with metal contact material and Molex connector option. Nominal voltage range 6–36V DC, rated 10 Amps at 12V DC. Replacement cap: 1001502. Replaces Cole Hersee part number M-492. Suitable for marine and industrial electrical control panels; included component: push button switch.
| Materials & Construction | |
| Color | gold, black |
| Material | Metal |
| Outer Material | Metal |
| Product Details | |
| Action | (On)-Off |
| Actuator Type | Push Button |
| Circuit Type | 1-way |
| Connector Type | Molex |
| Contact Material | Metal |
| Contact Type | Normally Open |
| Control Method | Touch |
| Controller Type | Push Button |
| Included Components | Push Button Switches |
| Item Dimensions L x W x H | 2 x 0.7 x 2 inches |
| Mounting Type | Surface Mount |
| Number of Items | 1 |
| Terminal | SPST |
| Throw/Pole | Spst |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Weight | 2.47 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| Current Rating | 10 Amps |
| Number of Positions | 2 |
| Operating Voltage | 12 Volts |
| Wattage | 1.2E+2 |
