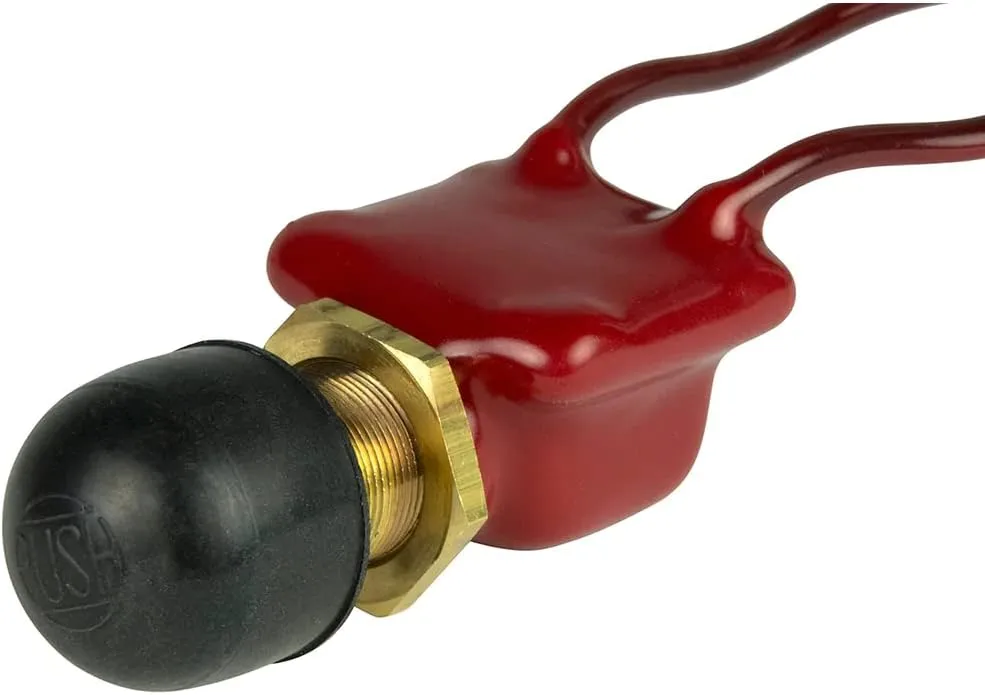

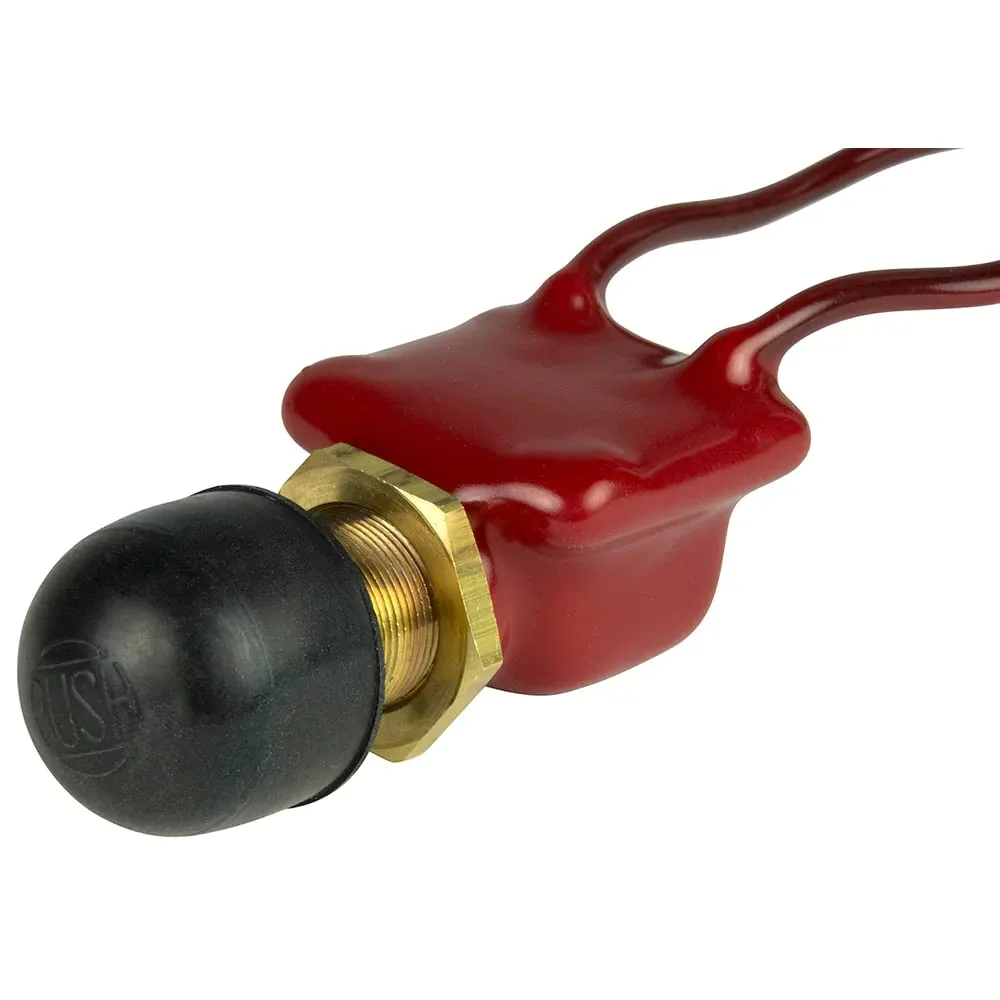

BEP 1001506 2 Position SPST PVC Coated Off/(On) Push Button Switches, red
Customize
2-Position SPST PVC Coated Push Button Switch - OFF/(ON). Single pole, single throw switch turns one circuit on and off. Can be used for any single circuit requiring an On-Off style switch. PVC coated to help protect against moisture and dirt. Features: Replacement cap 1001501. Nominal voltage is 6-36V DC. Rated for 10A at 12V DC. Two 8" 16 AWG wire leads. Same as Cole Hersee part number M-608. Replacement cap 1001501. Replaces Cole hersee part number m-608. Mounting Type: Surface Mount. Circuit Type: 1-way. Item dimensions L x W x H: 2 x 1.2 x 2 inches. Terminal: SPST. Connector Type: Wire Leads. Contact Type: Normally Open. Contact Material: Copper. International Protection Rating: IP54. Number of Positions: 2. Included Components: Push Button Switches.
- Replaces Cole hersee part number m-608
- Rated for 10a at 12V DC. Two 8 inch 16 AWG Wire leads
- Replacement cap 1001501. Nominal voltage is 6-36v DC
- Can be used for any single circuit requiring an on-off style switch
- Single pole, single Throw switch turns one circuit on and off
Specifications:
| Materials & Construction | |
| Color | red |
| Contact Material | Copper |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Wire Leads |
| Contact Type | Normally Open |
| Control Method | Touch |
| Controller Type | Push Button |
| Current Rating | 10 Amps |
| Global Trade Identification Number | 00870216046099 |
| Included Components | Push Button Switches |
| International Protection Rating | IP54 |
| Mounting Type | Surface Mount |
| Number of Positions | 2 |
| Operating Voltage | 36 Volts |
| Operation Mode | OFF-NONE-(ON) |
| Terminal | SPST |
| UPC | 870216046099 |
| Warranty Description | Warranty |
| Wattage | 3.6E+2 |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 1.2 x 2 inches |
| Size | One Size |
| Weight | 3.36 ounces |
| Width | 1.2 inches |
| Technical Specifications | |
| Current Rating | 10 Amps |
| International Protection Rating | IP54 |
| Operating Voltage | 36 Volts |
