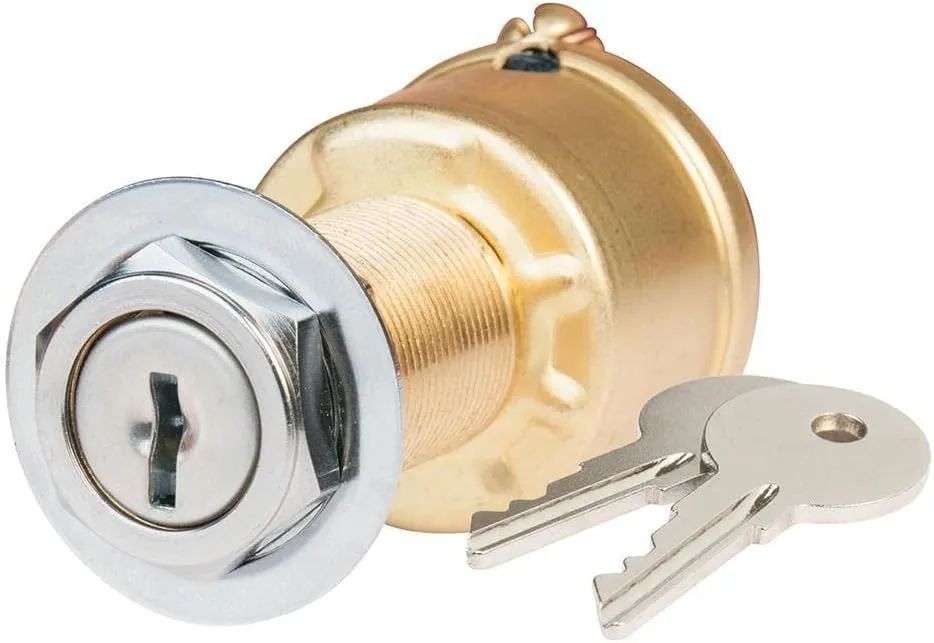

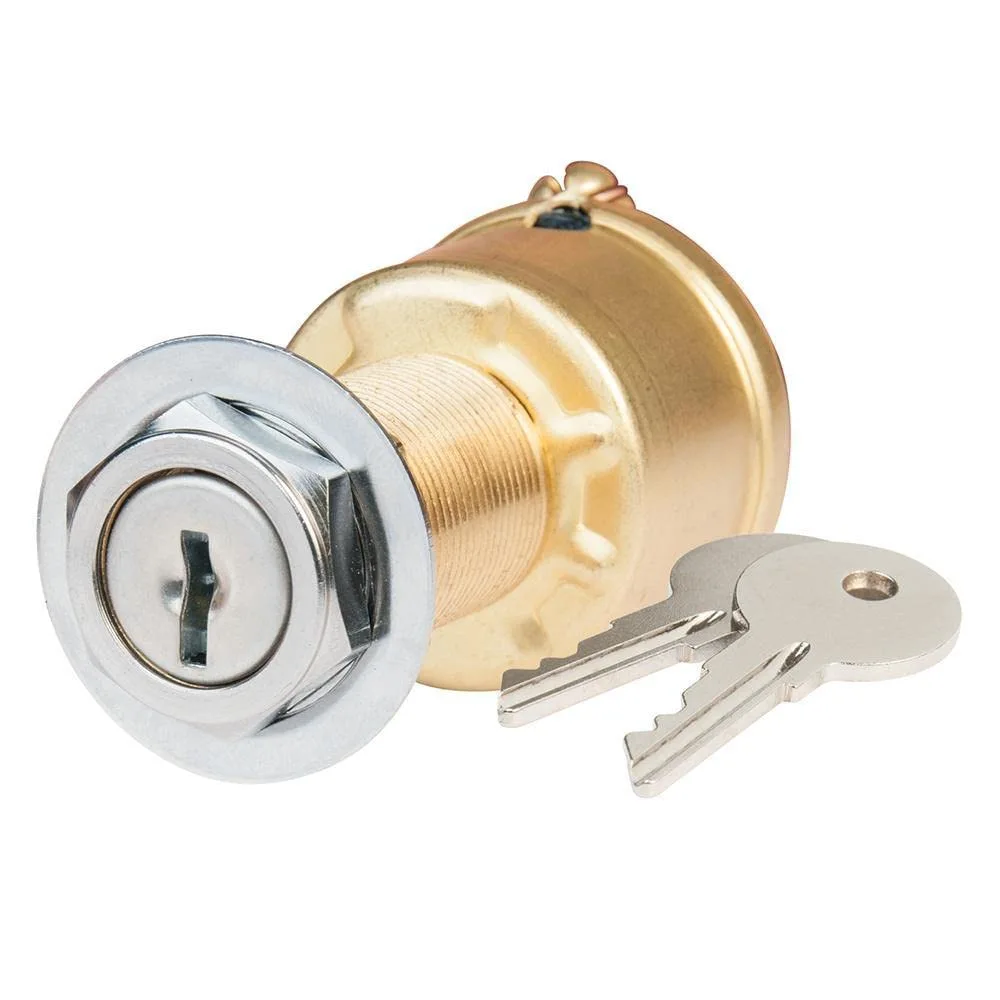

BEP 2 Position Ignition Off/On Switches & Lanyards
BEP marine-grade 2-position keyed ignition switch (OFF/ON) for 12V systems. Panel-mount, chrome finish with stainless-steel contacts, rated 10A at 12V DC; #8-32 screw terminals; includes two keys; fits panels up to 1" thick. Replaces Cole Hersee M-489.
$103.99 $103.99
Customize
Available Quantity
3 Product Details
2-Position Ignition Switch - OFF/ON. Marine-grade battery ignition and start switch suitable for harsh environments on land or sea. Features a coded tumbler lock and includes two keys. Nominal voltage is 12V DC and rated for 10A at 12V DC. Uses #8-32 screw terminals and mounts in panels up to 1" thick. Panel-mount design with stainless steel contact material and chrome finish. Connector type: screw terminals. Replaces Cole Hersee part number M-489. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Replaces Cole hersee part number m-489
- Fits panels up to 1 inch thick
- Rated for 10a at 12V DC. #8-32 screw terminals
- Coded Tumbler lock, includes two keys
- Marine-grade Battery ignition and start switch suitable for harsh environments on land or Sea
Specifications:
| Materials & Construction | |
| Color | Chrome |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Actuator Type | Ignition |
| Circuit Type | 2-way |
| Connector Type | Screw |
| Contact Type | Normally Open |
| Control Method | Touch |
| Included Components | Ignition Switches & Lanyards |
| Model Name | 2 Position Ignition Switch - Off/On |
| Model Number | 1001605 |
| Number of Positions | 2 |
| Operation Mode | Off |
| Terminal | Marine-grade,screw Terminals |
| Wattage | 1.2E+2 |
| Sizing & Dimensions | |
| Height | 1.8 inches |
| Length | 3.3 inches |
| Product Dimensions | 3.3 x 1.25 x 1.8 inches |
| Size | One Size |
| Weight | 4.80 ounces |
| Width | 1.25 inches |
| Technical Specifications | |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw |
| Contact Material | Stainless Steel |
| Contact Type | Normally Open |
| Control Method | Touch |
| Current Rating | 10 Amps |
| International Protection Rating | IP00 |
| Number of Positions | 2 |
| Operating Voltage | 12 Volts |
| Terminal | Marine-grade,screw Terminals |
| Warranty | Warranty |
