BEP 4 Position Ignition Accessory/Off/Ignition Accessory/Start Switches & Lanyards
Customize

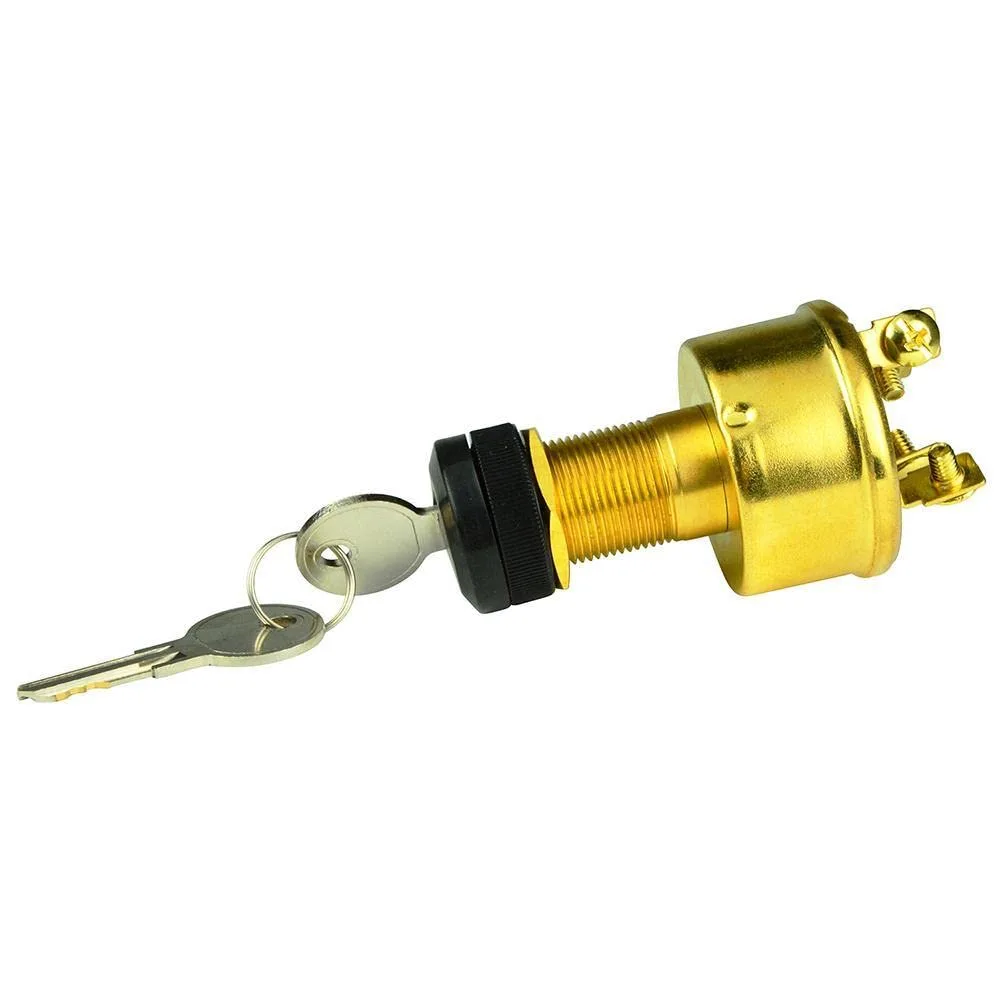

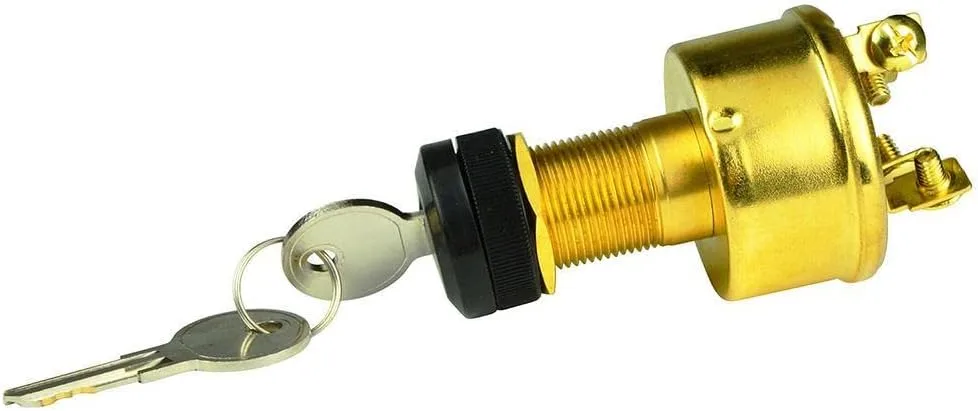

4-Position Brass Ignition Switch - Accessory/OFF/Ignition & Accessory/Start. Marine-grade battery ignition and start switch suitable for harsh environments on land or sea. Features: coded tumbler lock; includes two keys. Nominal voltage is 12V DC. Rated for accessory: 10A at 12V DC, ignition: 5A at 12V DC, start: 5A at 12V DC. #8-32 screw terminals. Fits panels up to 1" thick. Replaces Cole Hersee part number M-712. Includes ignition switches & lanyards. Mounting type is panel mount; connector/terminal type is screw. Proposition 65: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Replaces Cole hersee part number m-712
- 8-32 screw terminals. Fits panels up to 1 inch thick
- Rated for accessory: 10a at 12V DC, ignition: 5a at 12V DC, start: 5a at 12V DC
- Coded Tumbler lock, includes two keys
- Marine-grade Battery ignition and start switch suitable for harsh environments on land or Sea
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Brass |
| Outer Material | Brass |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 4 way |
| Connectivity Protocol | X-10 |
| Connector Type | Screws |
| Contact Material | Brass |
| Current Rating | 10 Amps |
| Included Components | Ignition Switches & Lanyards |
| International Protection Rating | 12 volt |
| Mounting Type | Panel Mount |
| Number of Positions | 4 |
| Operating Voltage | 12 Volts |
| Operation Mode | ON OFF |
| Terminal | Screw |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2.75 inches |
| Length | 6.5 inches |
| Product Dimensions | 6.5 x 2.5 x 2.75 inches |
| Size | One Size |
| Weight | 5.76 ounces |
| Width | 2.5 inches |
