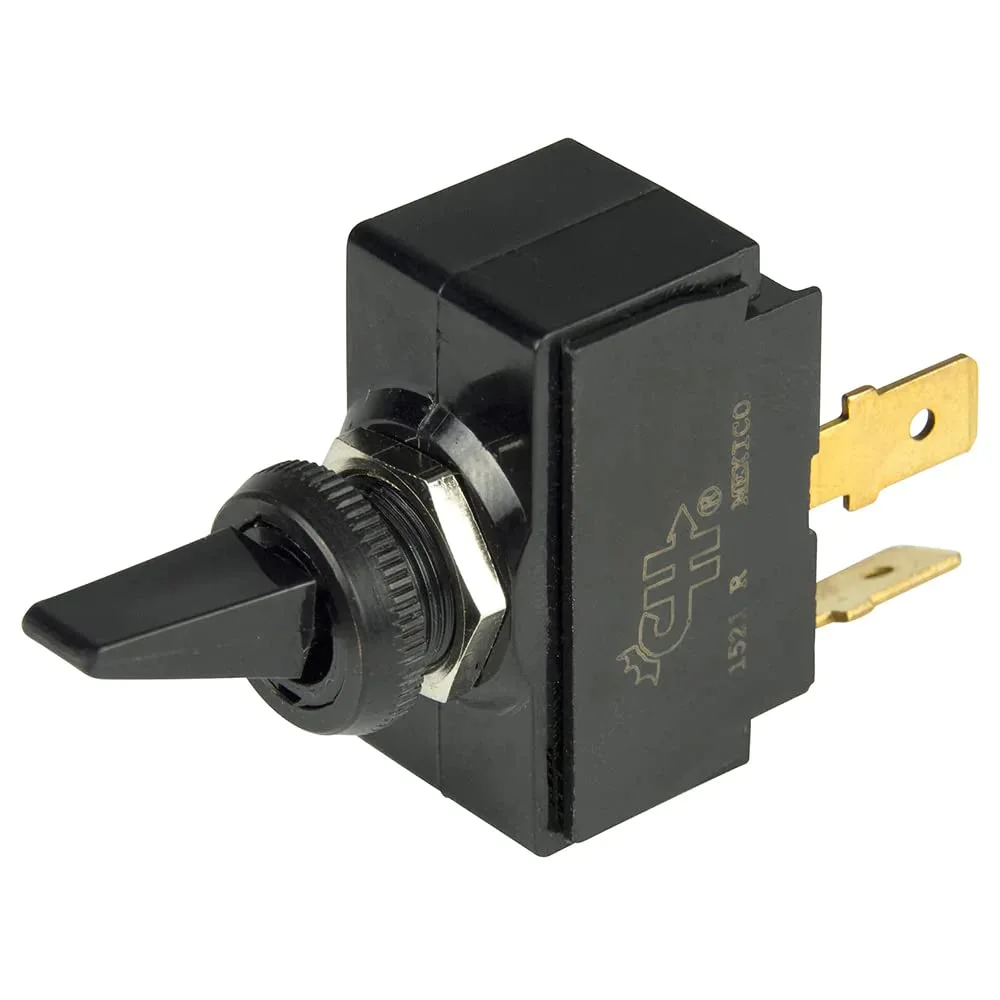

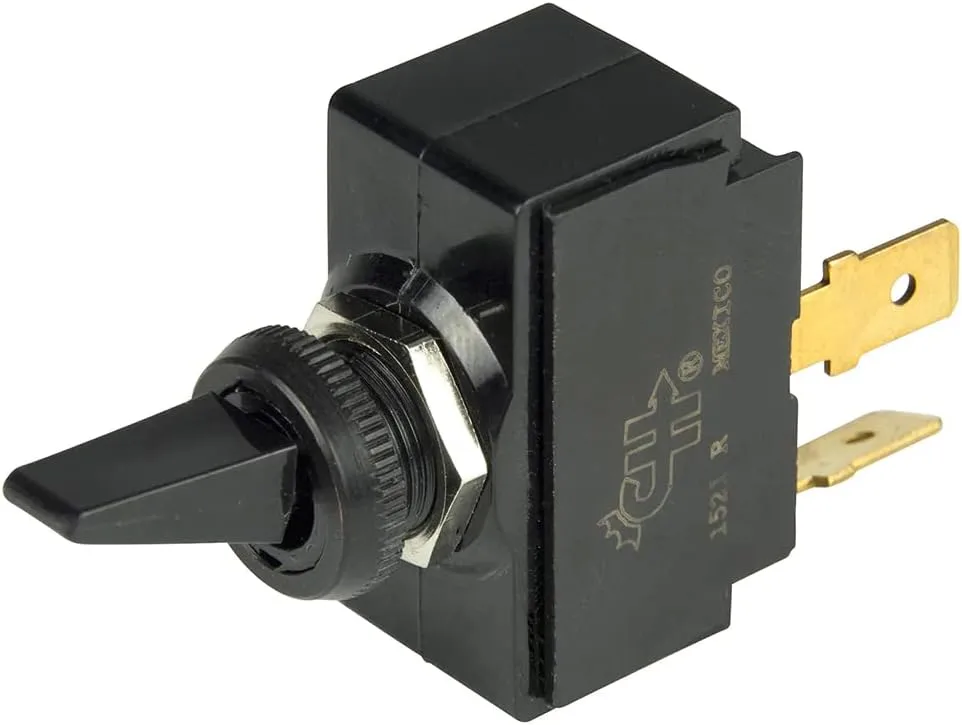

BEP SPST Nylon Toggle Switch - 12V - ON/OFF
Customize
SPST Nylon Toggle Switch - 12V - ON/OFF Single pole, single throw toggle switch turns one circuit on and off. Features: Standard black nylon handle Nominal voltage is 12V DC Rated for 25A at 12V DC Two 1/4" blade terminals Mounting stem 15/32" fits panels up to 1/8" thick Same as Cole Hersee part number 54100-01 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Features: Replaces Cole hersee part number 54100-01. Two 1/4" blade terminals. Mounting stem 15/32" fits panels up to 1/8" thick. Nominal voltage is 12V DC. Rated for 25A at 12V DC. Standard black nylon handle. Single pole, single throw toggle switch turns one circuit on and off.
- Replaces Cole hersee part number 54100-01
- Two 1/4" blade terminals. Mounting stem 15/32" fits panels up to 1/8" thick
- Nominal voltage is 12V DC. Rated for 25a at 12V DC
- Standard black nylon handle
- Single pole, single Throw toggle switch turns one circuit on and off
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Connector Type | Quick Connect |
| Included Components | Nylon Toggles |
| Insulation Resistance | 100 Megaohms |
| Material | Plastic |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Operation Mode | ON-OFF |
| Terminal | Spst |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Size | One Size |
| Weight | 0.96 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| AC Adapter Current | 25 Amps |
| Connector Type | Quick Connect |
| Current Rating | 25 Amps |
| Insulation Resistance | 100 Megaohms |
| Operating Voltage | 12 Volts (DC) |
| Voltage | 12 Volts |
