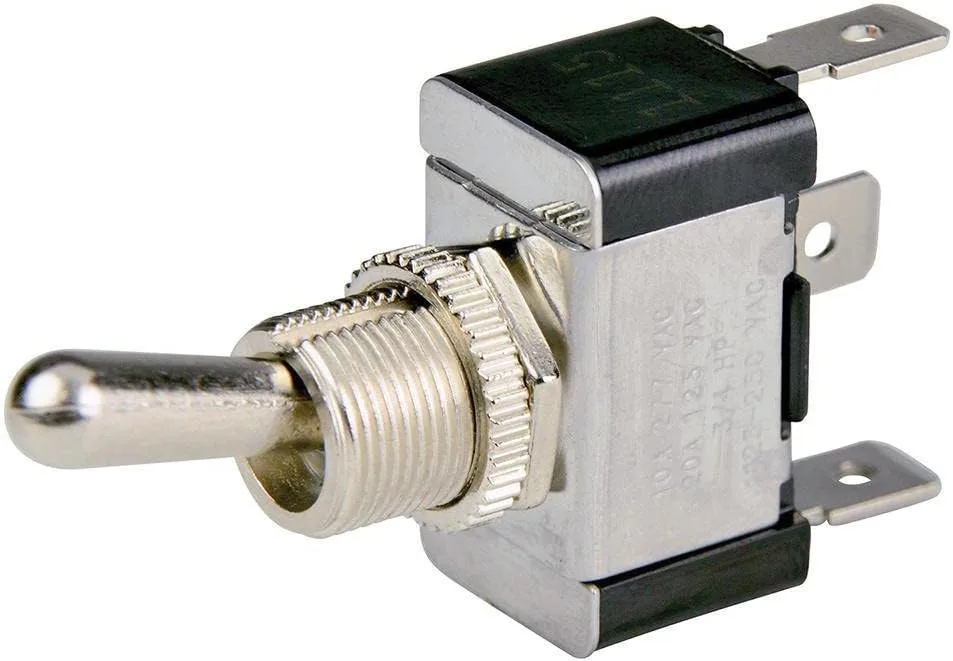

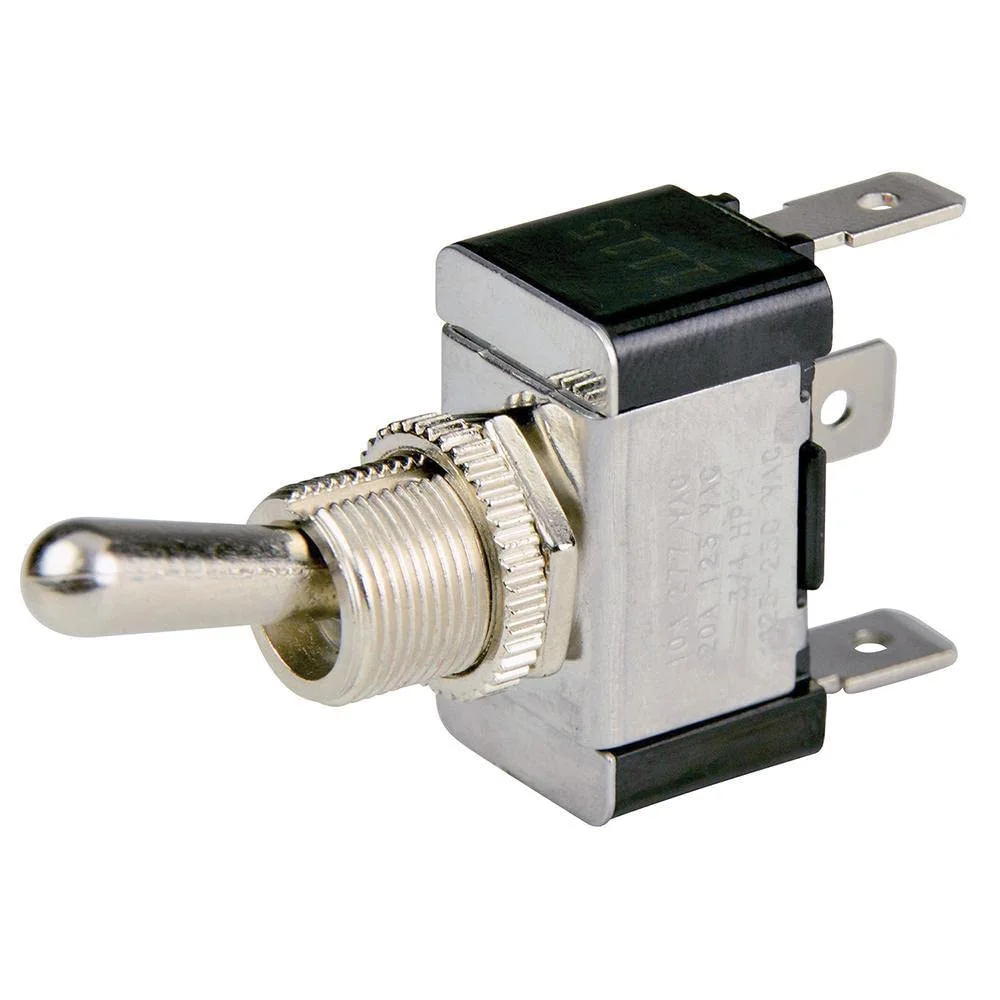

BEP 1002001 SPDT Chrome Plated Toggle Switch - On/Off/On
Customize
SPDT Chrome Plated Toggle Switch - ON/OFF/ON. Single pole, double throw toggle switch turns one of two circuits on. Common applications include combining nav lights and anchor light with independent bulbs. Nominal voltage is 12V DC. Rated for 25A at 12V DC. Three 1/4" blade terminals. Mounting stem 15/32" fits panels up to 1/4" thick. Replaces Cole Hersee part number 55016-06. Contact materials: brass, copper, or silver alloy; body material: plastic; mounting type: panel mount. Includes chrome plated toggles. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Replaces Cole hersee part number 55016-06
- Three 1/4" blade terminals. Mounting stem 15/32" fits panels up to 1/4" thick
- Nominal voltage is 12V DC. Rated for 25a at 12V DC
- Common applications include combining Nav lights and anchor light with independent Bulbs
- Single pole, double Throw toggle switch turns one of two circuits on
Specifications:
| Materials & Construction | |
| Color | Chrome Plated |
| Contact Material | Brass, Copper, Or Silver Alloy |
| Material | Plastic |
| Outer Material | Chrome Plated |
| Product Details | |
| AC Adapter Current | 25 Amps |
| Action | On-Off-on |
| Contact Material | Brass, Copper, Or Silver Alloy |
| Current Rating | 25 Amps |
| Dielectric Strength | 500V AC |
| Included Components | Chrome Plated Toggles |
| Insulation Resistance | 100 Megaohms |
| Material | Plastic |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF-ON |
| Terminal | Spdt |
| Throw/Pole | Spdt |
| UPC | 870216046600 |
| Voltage | 12 Volts |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Item Dimensions Lx Wx H | 2 x 0.7 x 2 inches |
| Item Package Dimensions L x W x H | 4.72 x 2.87 x 1.18 inches |
| Length | 2 inches |
| Package Dimensions | 4.72 x 2.87 x 1.18 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Size | One Size |
| Weight | 1.06 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| Current Rating | 25 Amps |
| Dielectric Strength | 500V AC |
| Insulation Resistance | 100 Megaohms |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF-ON |
| Terminal | Spdt |
