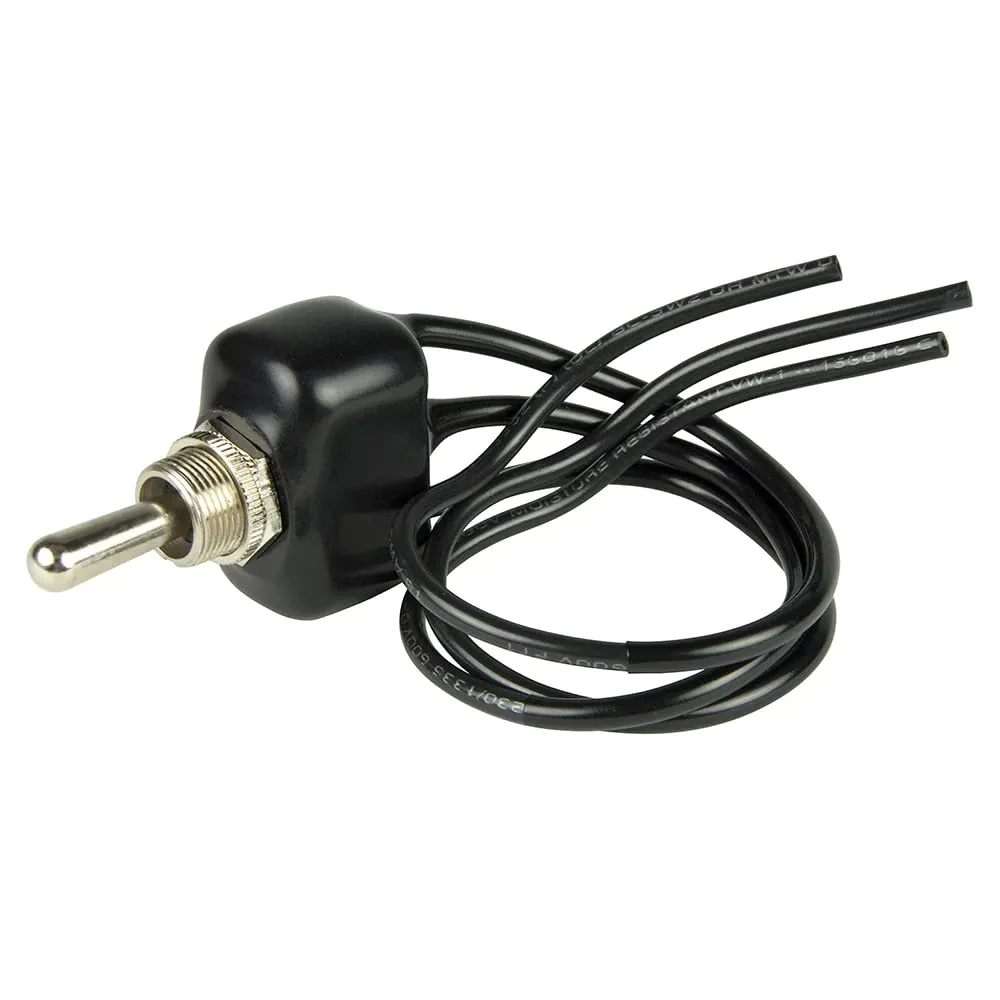

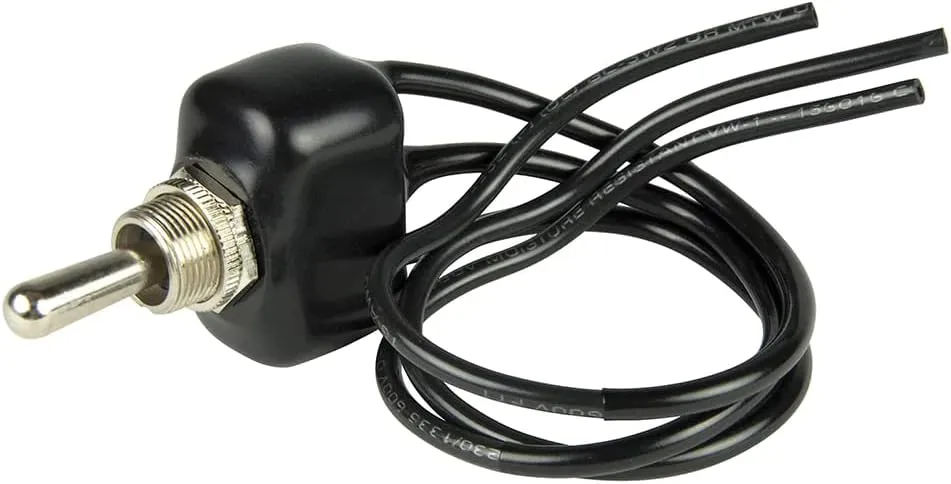

BEP 1002003 SPST PVC Coated Toggle Switch With Wire Leads - Off/(On)
BEP 1002003 SPST PVC-coated toggle switch with 8" 16 AWG wire leads. SPST ON/OFF panel-mount (15/32" stem) rated 12V/24V DC — 25A at 12V, 15A at 24V. Ideal for marine and industrial control.
$47.99 $47.99
Customize
Available Quantity
2 Product Details
SPST PVC Coated Toggle Switch - OFF/(ON). Single pole, single throw toggle switch turns one circuit on and off. Common applications include intermittent horn or windshield wiper control. This toggle switch is PVC coated. Features include nominal voltage 12V/24V DC; rated for 25A at 12V DC and 15A at 24V DC; 8" 16 AWG wire lead terminals; mounting stem 15/32" fits panels up to 1/4" thick. Replaces Cole Hersee part number 55020-04. Additional product details: panel-mount design, quick-connect compatible terminals, brass contact material and robust insulation resistance (100 Megaohms) for reliable electrical performance.
- Replaces Cole hersee part number 55020-04
- 8" 16 AWG Wire lead terminals. Mounting stem 15/32" fits panels up to 1/4" thick
- Nominal voltage is 12V/24V DC. Rated for 25a at 12V DC, 15a at 24V DC
- Common applications include intermittent horn or windshield wiper control
- Single pole, single Throw toggle switch turns one circuit on and off
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| AC Adapter Current | 25 Amps |
| Action | (On)-Off |
| Connector Type | Quick Connect |
| Contact Material | Brass |
| Current Rating | 25 Amps |
| Included Components | Chrome Plated Toggles |
| Insulation Resistance | 100 Megaohms |
| Material | Plastic |
| Model Name | SPST PVC Coated Toggle Switch - Off/(On) |
| Mounting Type | Panel Mount |
| Operating Voltage | 24 Volts |
| Operation Mode | ON-OFF |
| Terminal | Wire Lead Terminals,wire Leads |
| Throw/Pole | Spst |
| Voltage | 12 Volts |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Product Weight | 0.08 Pounds |
| Size | One Size |
| Weight | 1.28 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| AC Adapter Current | 25 Amps |
| Connector Type | Quick Connect |
| Contact Material | Brass |
| Current Rating | 25 Amps |
| Insulation Resistance | 100 Megaohms |
| Operating Voltage | 24 Volts |
| Terminal | Wire Lead Terminals,wire Leads |
| Voltage | 12 Volts |
