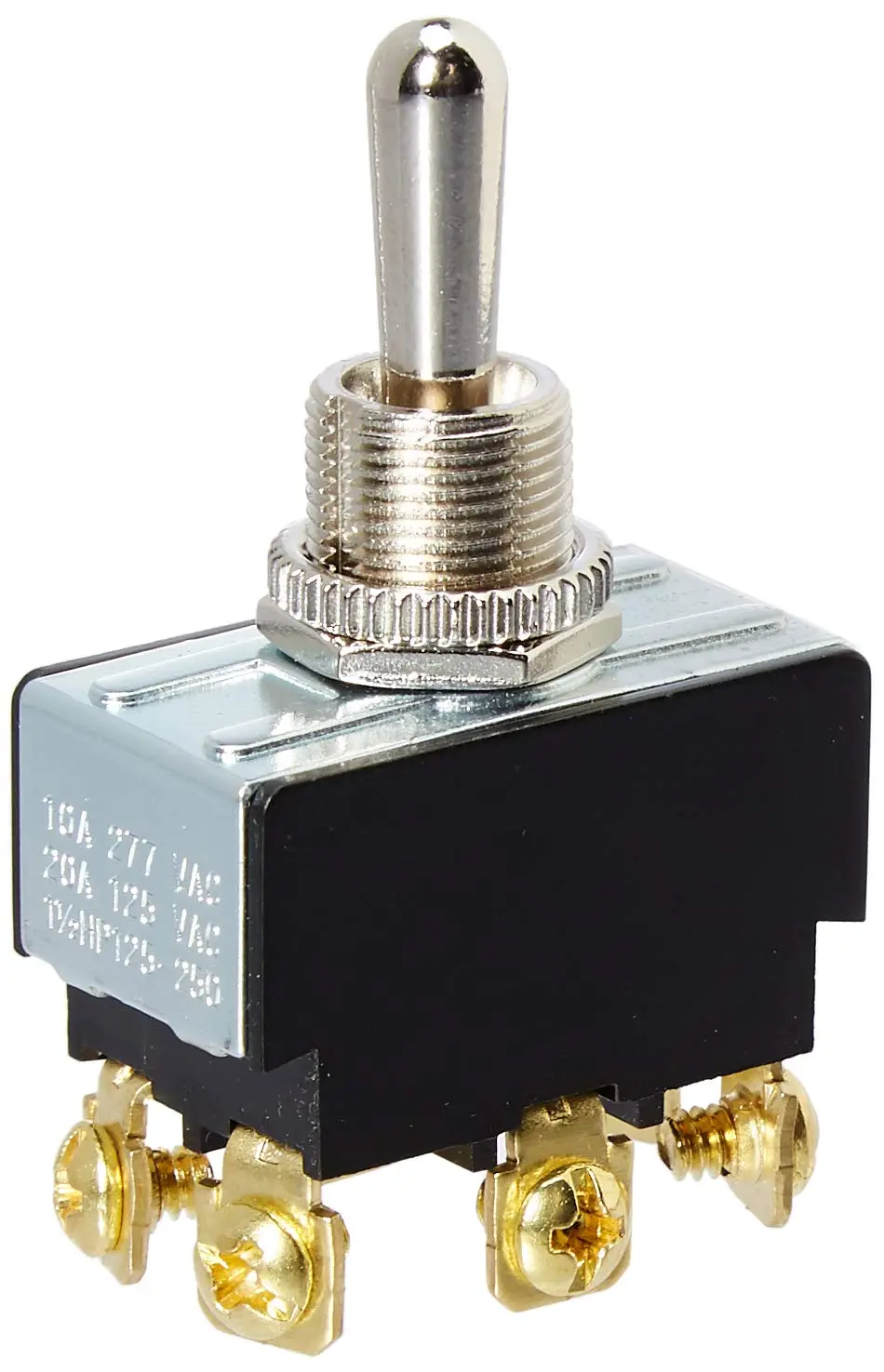

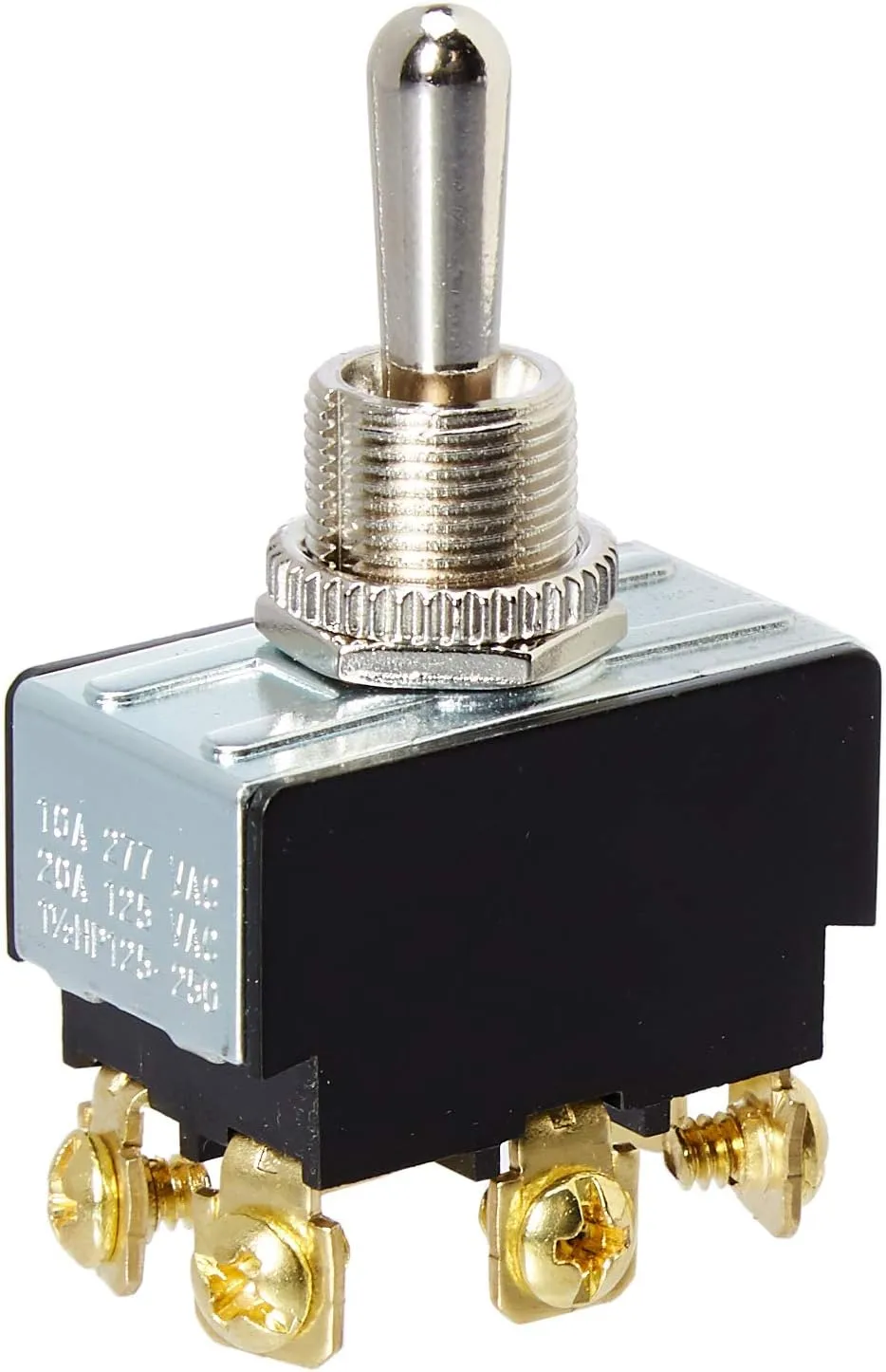

BEP 1002012 DPDT (On)/Off/(On) Chrome Plated Toggle Switch
Customize
DPDT Chrome Plated Toggle Switch - (ON)/OFF/(ON). Double pole, double throw toggle switch turns two of four circuits on at a time. A common application includes powered hatch control. Nominal voltage is 12V/24V DC. Rated for 25A at 12V DC, 15A at 24V DC. Six #6-32 screw terminals. Mounting stem 15/32" fits panels up to 1/4" thick. Replaces Cole Hersee part number 55054. Features: Nominal voltage 12V/24V DC; rated 25A at 12V DC, 15A at 24V DC; six #6-32 screw terminals; chrome-plated finish; panel-mount. Includes Chrome Plated Toggles. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Replaces Cole hersee part number 55054
- Six #6-32 screw terminals. Mounting stem 15/32" fits panels up to 1/4" thick
- Nominal voltage is 12V/24V DC. Rated for 25a at 12V DC, 15a at 24V DC
- A common application includes powered hatch control
- Double pole, double Throw toggle switch turns two of four circuits on at a time
Specifications:
| Materials & Construction | |
| Color | Chrome Plated |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Action | (On)-Off-(On) |
| Connector Type | Screw |
| Included Components | Chrome Plated Toggles |
| Model Name | DPDT Chrome Plated Toggle Switch - (On)/Off/(On) |
| Mounting Type | Panel Mount |
| Operation Mode | ON-OFF-ON |
| Terminal | Dpdt |
| Throw/Pole | Dpdt |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Size | One Size |
| Weight | 1.44 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| AC Adapter Current | 25 Amps |
| Current Rating | 25 Amps |
| Mounting Stem Fit | 15/32" fits panels up to 1/4" thick |
| Operating Voltage | 12 Volts |
| Voltage | 12 Volts |
