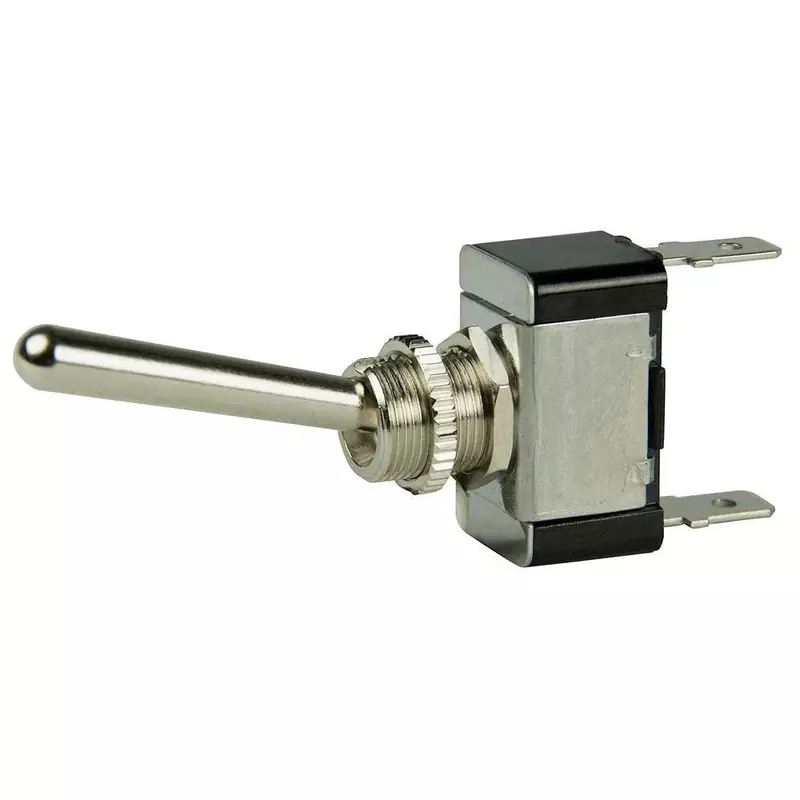

BEP SPST Chrome Plated Long Handle Toggle Switch - ON/OFF
BEP SPST chrome-plated long-handle toggle switch (ON/OFF) for 12V/24V DC systems; rated 25A at 12V, 15A at 24V. Panel-mount with 1/4" blade terminals. Replaces Cole Hersee 55055.
$16.99 $16.99
Customize
Available Quantity
3 Product Details
SPST Chrome Plated Long Handle Toggle Switch - ON/OFF. Single pole, single throw (SPST) toggle switch turns one circuit on and off. Common applications include any single circuit requiring an on-off style switch. Nominal voltage is 12V/24V DC. Rated for 25A at 12V DC, 15A at 24V DC. Long handle and two 1/4" blade terminals. Mounting stem 15/32" fits panels up to 1/4" thick. Same as Cole Hersee part number 55055. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Replaces Cole hersee part number 55055
- Long handle and two 1/4" balde terminals. Mounting stem 15/32" fits panels up to 1/4" thick
- Nominal voltage is 12V/24V DC. Rated for 25a at 12V DC, 15a at 24V DC
- Common applications include any single circuit requiring an on-off style switch
- Single pole, single Throw toggle switch turns one circuit on and off
Specifications:
| Materials & Construction | |
| Color | Chrome Plated |
| Contact Material | Brass |
| Material | Plastic |
| Product Details | |
| AC Adapter Current | 25 Amps |
| Action | On-Off |
| Connector Type | Quick Connect |
| Contact Material | Brass |
| Current Rating | 25 Amps |
| Global Trade Identification Number | 00870216046723 |
| Included Components | Chrome Plated Toggles |
| Insulation Resistance | 100 Megaohms |
| Item Dimensions Lx Wx H | 2 x 0.7 x 2 inches |
| Item Package Dimensions L x W x H | 5 x 2.83 x 1.69 inches |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Operating Voltage | 12 Volts |
| Operation Mode | OFF-NONE-ON |
| Part Number | 1002013 |
| Size | One Size |
| Terminal | Spst |
| Throw/Pole | Spst |
| UPC | 870216046723 |
| Voltage | 12 Volts |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Product Weight | 0.09 Pounds |
| Size | One Size |
| Weight | 1.44 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| Connector Type | Quick Connect |
| Current Rating | 25 Amps |
| Insulation Resistance | 100 Megaohms |
| Operating Voltage | 12 Volts |
| Operation Mode | OFF-NONE-ON |
| Terminal | Spst |
