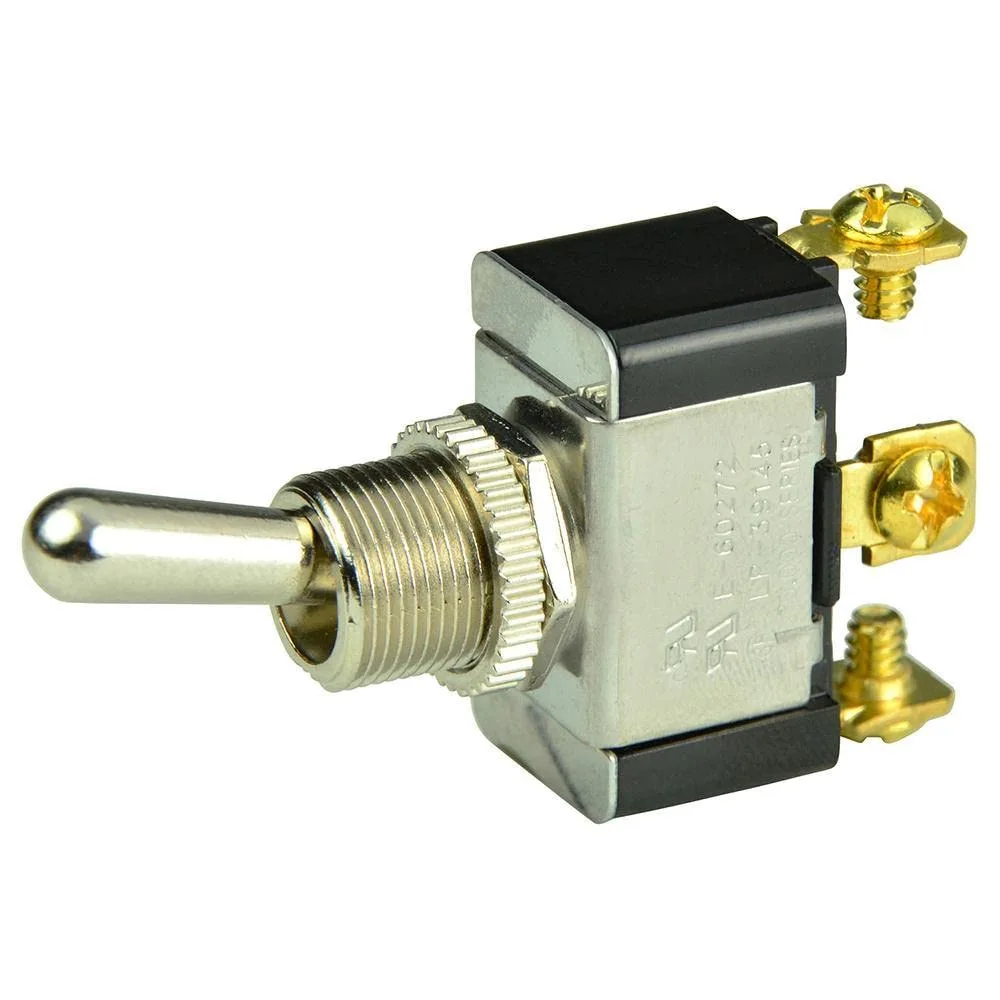

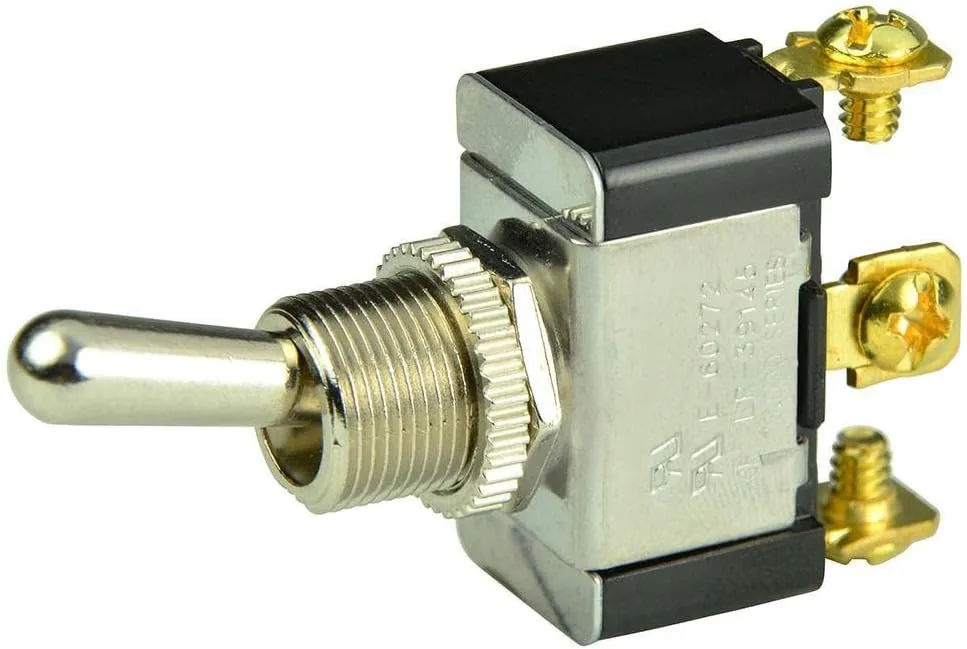

BEP 1002015 SPDT Chrome Plated Toggle Switch - On/Off/(On)
Customize
SPDT Chrome Plated Toggle Switch - ON/OFF/(ON). Single pole, double throw toggle switch turns one of two circuits on. Common applications include intermittent manual override and maintained float switch control for bilge pumps. Nominal voltage is 12V/24V DC. Rated for 25A at 12V DC, 15A at 24V DC. Three #6-32 screw terminals. Mounting stem 15/32" fits panels up to 1/4" thick. Same as Cole Hersee part number 55088. Features include chrome-plated finish, SPDT throw/pole, panel mount design and screw terminal connectors. Replaces Cole Hersee part number 55088. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Single pole, double throw toggle switch turns one of two circuits on. Action: On/Off/ Momentary On
- Common applications include intermittent manual override and maintained float switch control for bilge pumps
- Nominal voltage is 12V/24V DC. Rated for 25A at 12V DC, 15A at 24V DC
- Replaces Cole hersee part number 55088
- Three #6-32 screw terminals. Mounting stem 15/32" fits panels up to 1/4" thick
Specifications:
| Materials & Construction | |
| Color | Chrome Plated |
| Contact Material | Brass |
| Material | Plastic |
| Product Details | |
| Connector Type | Screw |
| Global Trade Identification Number | 00870216046747 |
| Included Components | Chrome Plated Toggles |
| Model Name | SPDT Chrome Plated Toggle Switch - On/Off/(On) |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Operation | (On)-Off-on |
| Operation Mode | ON-OFF-ON |
| Size | One Size |
| Style | Toggle |
| Terminal | Spdt |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 0.7 x 2 inches |
| Size | One Size |
| Weight | 1.28 ounces |
| Width | 0.7 inches |
| Technical Specifications | |
| AC Adapter Current | 25 Amps |
| Contact Material Detail | Brass |
| Current Rating | 25 Amps |
| Dielectric Strength | [HIGH] |
| Insulation Resistance | 100 Megaohms |
| Operating Voltage | 12 Volts |
| Terminal Type | SPDT |
| Voltage | 12 Volts |
