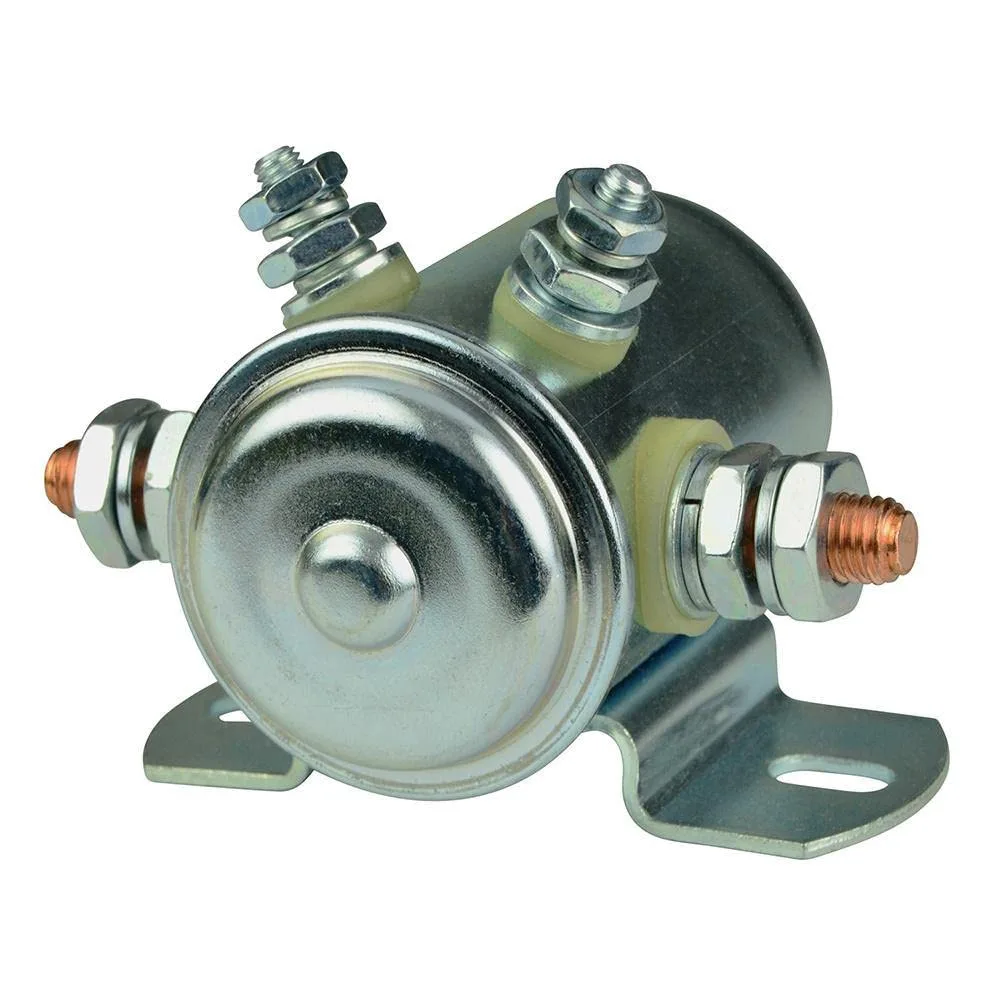

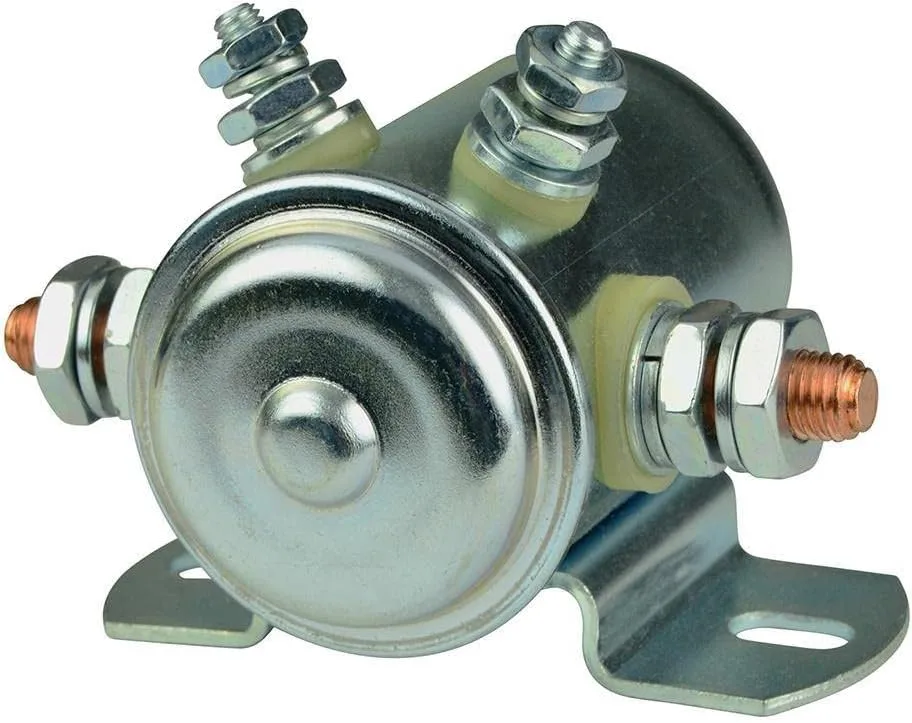

BEP 85A Remote Switching Continuous Duty Solenoid
Customize
85A Remote Switching Continuous Duty Solenoid Can be used with Electro-Scan MSDs and other high-amp circuits with remote operation. Features: Continuous duty, 85A at 12V DC Intermittent rating 750A make/100A break, 10 seconds On, 30 minutes Off Insulated ground Steel housing, brass hardware UL listed and CE certified Same as Cole Hersee part number 24059 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Continuous duty, 85A at 12V DC. Intermittent rating 750A make/100A break, 10 seconds on, 30 minutes off. Can be used with electro-scan msds and other high-amp circuits with remote operation. Insulated ground. Steel housing, brass hardware. Ul listed and CE certified. Replaces Cole hersee part number 24059.
- Replaces Cole hersee part number 24059
- UL listed and CE certified
- Insulated ground. Steel housing, brass hardware
- Continuous duty, 85a at 12V DC. Intermittent rating 750a make/100a break, 10 seconds on, 30 minutes off
- Can be used with electro-scan msds and other high-amp circuits with remote Operation
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Plastic |
| Product Details | |
| Controller Type | Remote Control |
| Included Components | Solenoids |
| Model Name | 85A Continuous Duty Solenoid |
| Model Number | 1002204 |
| Number of Items | 1 |
| Power Source | Corded Electric |
| Style | Modern |
| Warranty Description | Warranty. |
| Sizing & Dimensions | |
| Height | 2.5 inches |
| Length | 3.5 inches |
| Package Weight | 0.882 pounds |
| Product Dimensions | 3.5 x 2.5 x 2.5 inches |
| Size | One Size |
| Width | 2.5 inches |
| Technical Specifications | |
| Control Method | Remote |
| Water Resistance Level | Not Water Resistant |
