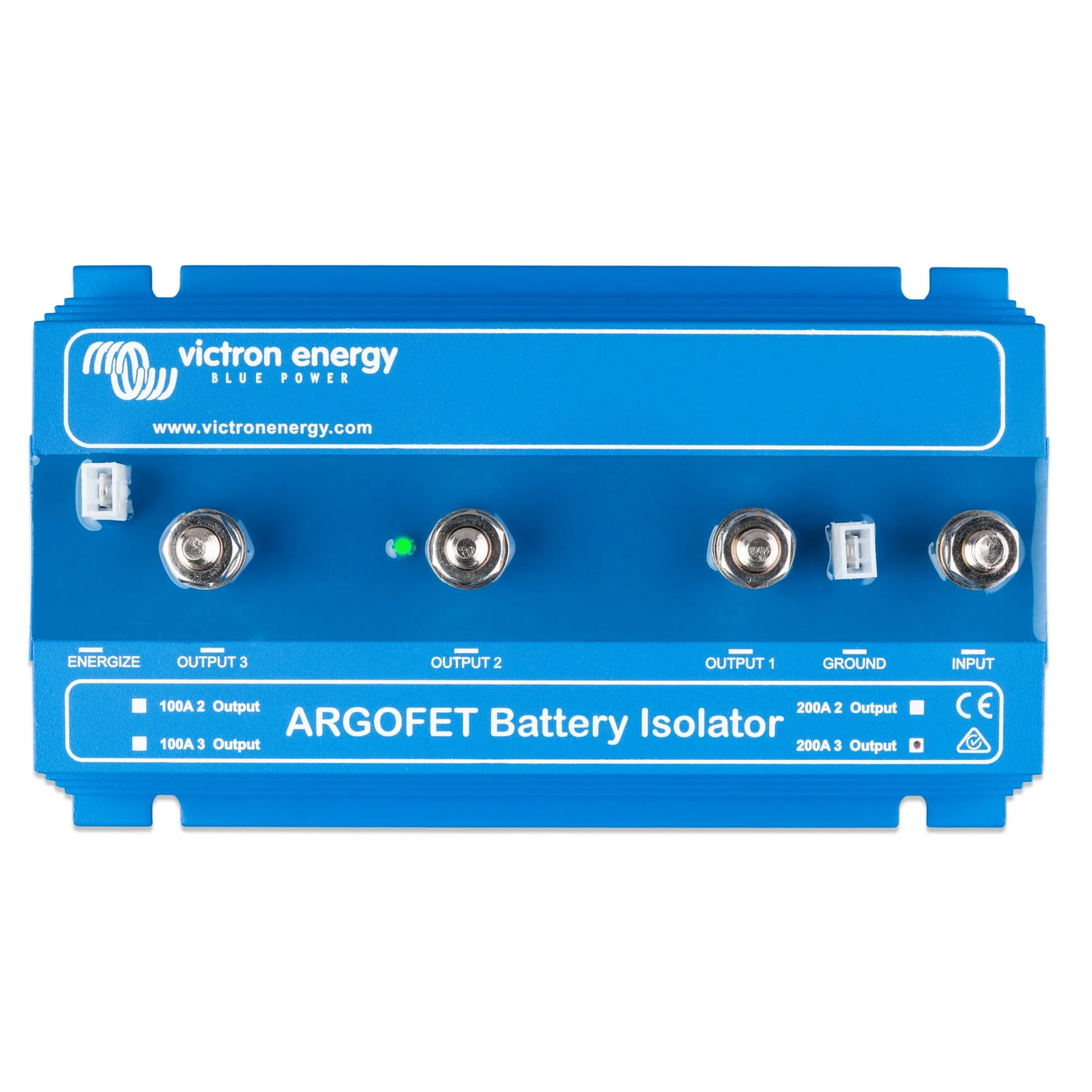

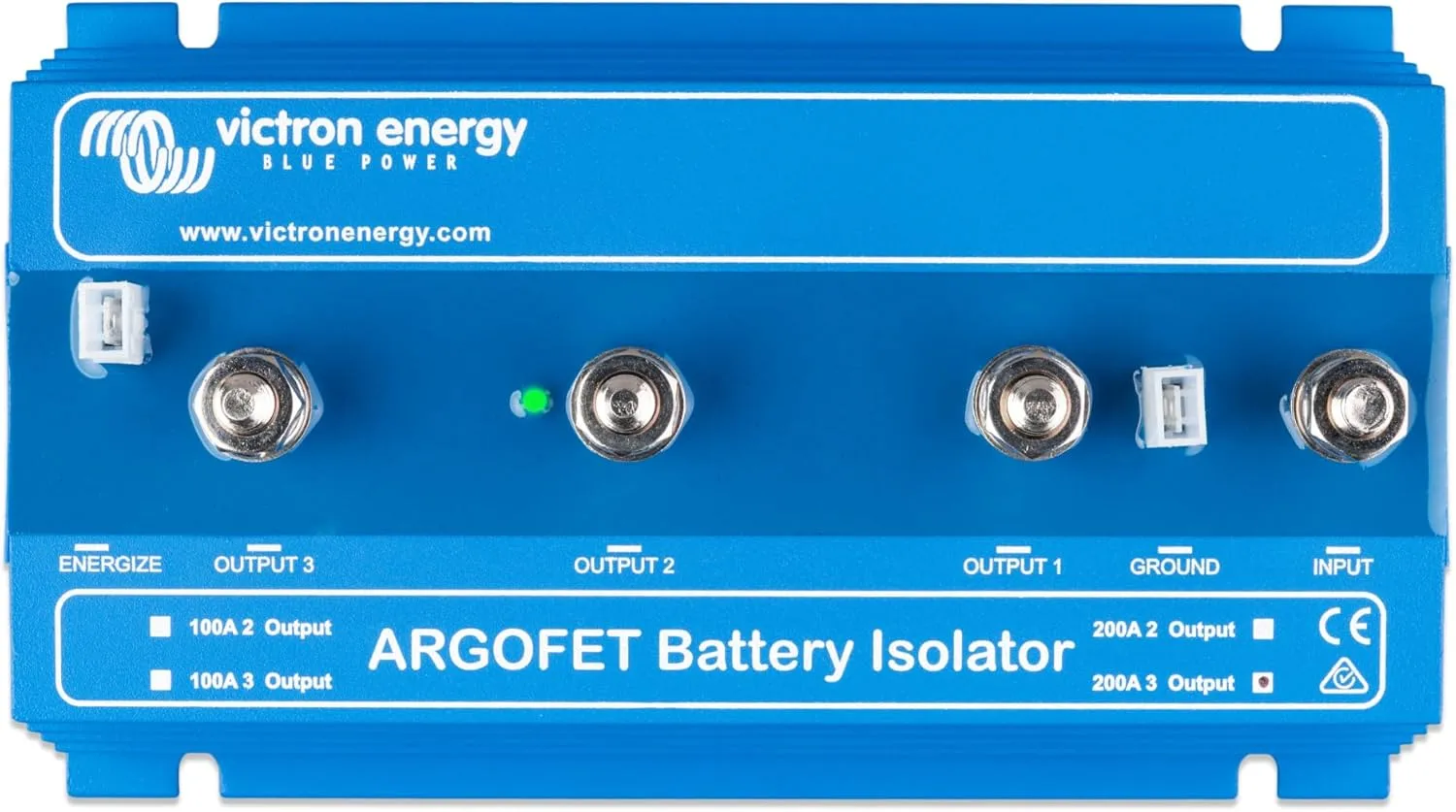

Victron Energy Argofet Battery Isolators 200-3AC (3 Batteries 200 amp)
Customize
Argo FET Battery Isolator 200-3 3 Batteries - 200AMP. Similarly to diode battery isolators, FET isolators allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. In contrast with diode battery isolators, FET isolators have virtually no voltage loss. Voltage drop is less than 0,02 Volt at low current and averages 0,1 Volt at higher currents. Warranty Info Please contact your dealer for any returns, repairs or support issues related to this product. When using Victron Energy ARGO FET Battery Isolators, there is no need to also increase the output voltage of the alternator. However, care should be taken to keep cable lengths short and of sufficient cross section. Discharging the accessory battery for example will not result in also discharging the starter battery. In contrast with diode battery isolators, FET isolators have virtually no voltage loss. Voltage drop is less than 0.02-Volt at low current and averages 0.1-Volt at higher currents. 12/24 Volt auto ranging: Victron Energy Argofet battery isolator will automatically adjust to a 12-Volt or 24-Volt system. Victron Energy Argofet battery isolators 200-3AC, allow simultaneous charging of three batteries from one alternator, without connecting the batteries together.
- When using Victron Energy ARGO FET Battery Isolators, there is no need to also increase the output voltage of the alternator. However, care should be taken to keep cable lengths short and of sufficient cross section
- Discharging the accessory battery for example will not result in also discharging the starter battery
- In contrast with diode battery isolators, FET isolators have virtually no voltage loss. Voltage drop is less than 0.02-Volt at low current and averages 0.1-Volt at higher currents
- 12/24 Volt auto ranging: Victron Energy Argofet battery isolator will automatically adjust to a 12-Volt or 24-Volt system

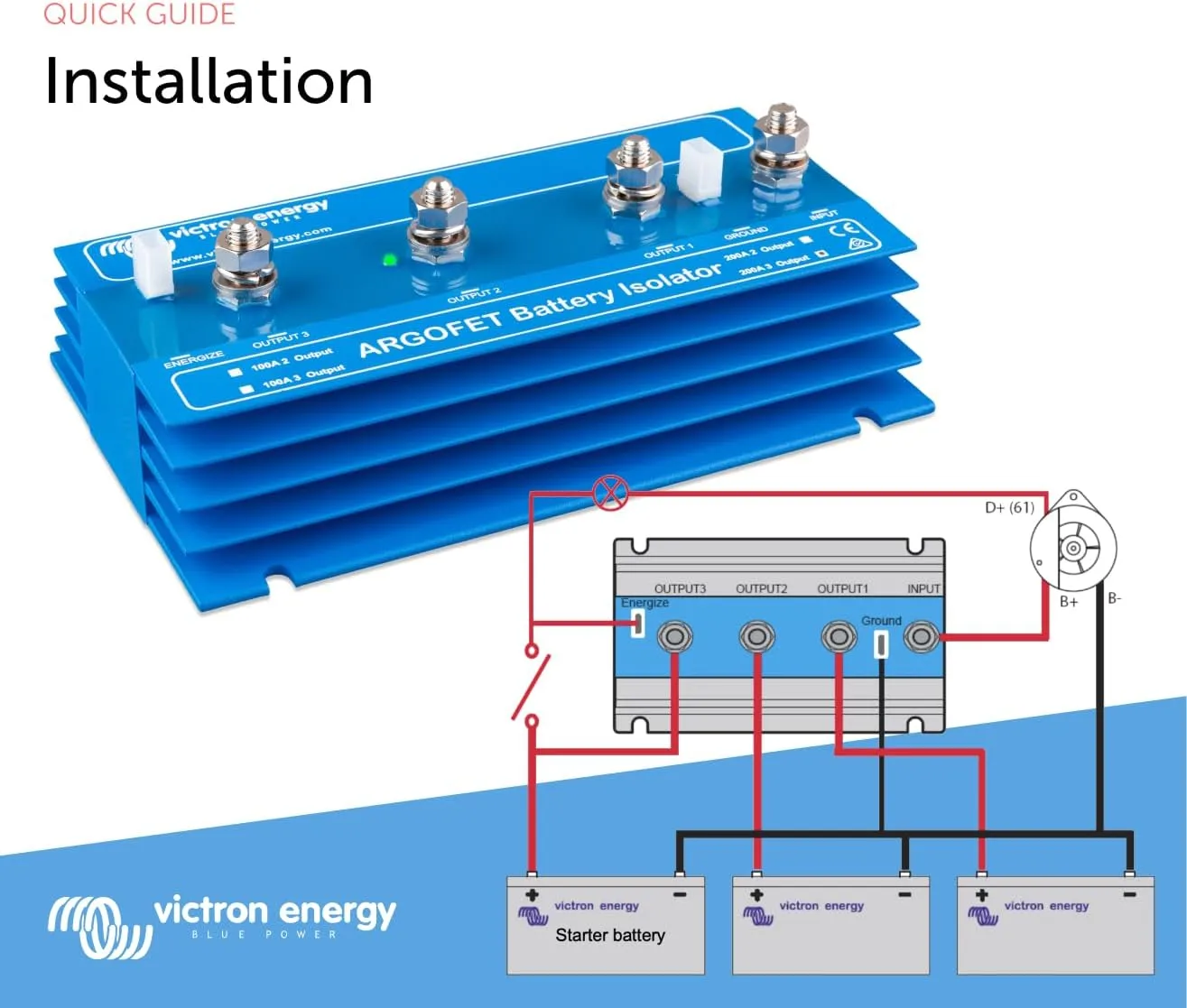

- Victron Energy Argofet battery isolators 200-3AC, allow simultaneous charging of three batteries from one alternator, without connecting the batteries together
Specifications:
| Materials & Construction | |
| Color | Multicoloured |
| Material | Copper |
| Outer Material | Copper |
| Product Details | |
| Actuator Type | FET Isolator |
| Circuit Type | 3-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw Terminal |
| Contact Material | Copper |
| Contact Type | Normally Open |
| Control Method | Touch |
| Current Rating | 200 Amps |
| Included Components | Victron Energy Argo FET Battery Isolator, 200A, 3 Batt. |
| International Protection Rating | IP54 |
| Number of Positions | 3 |
| Operating Voltage | 24 Volts |
| Operation Mode | Automatically |
| Size | 200A (3 Bank) |
| Terminal | Screw |
| Warranty | Warranty |
| Sizing & Dimensions | |
| Height | 2.6 inches |
| Length | 7.9 inches |

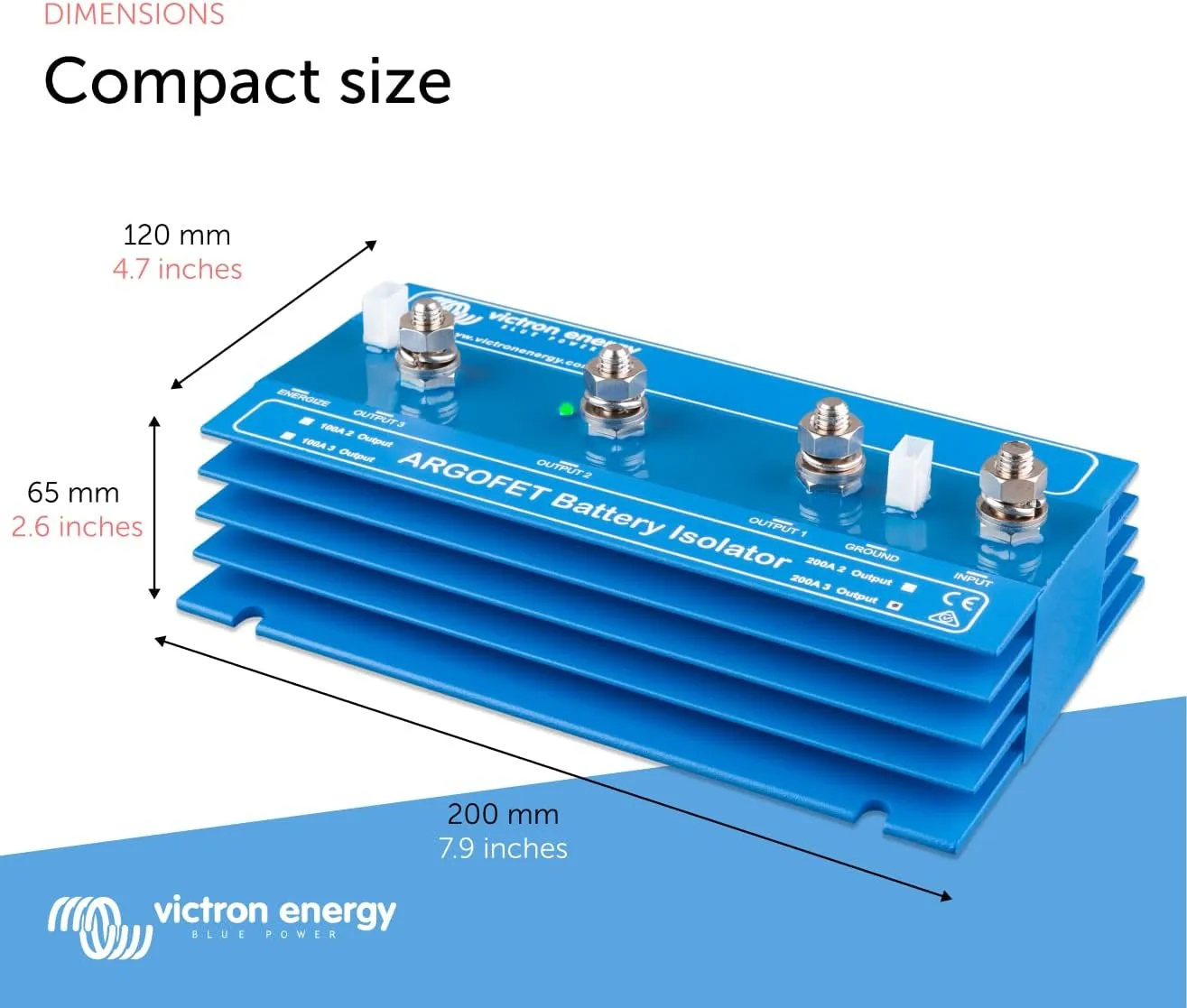

| Product Dimensions | 7.9 x 4.7 x 2.6 inches |
| Size | 200A (3 Bank) |
| Weight | 3.3 pounds |
| Width | 4.7 inches |
| Technical Specifications | |
| Contact Material | Copper |
| Number of Items | 1 |
| Operating Voltage | 24 Volts |
| Unit Count | 1 Count |
| Wattage | 4.8E+3 |
