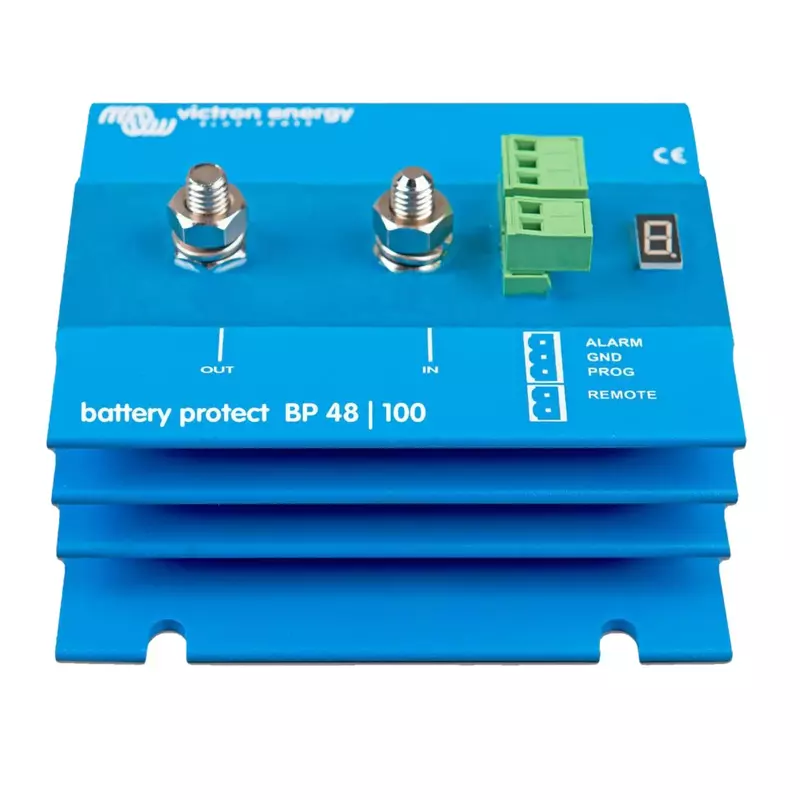

Victron Energy BatteryProtect 48-Volt 100 amp 48V/100A
Customize
BatteryProtect 48V - 100A The BatteryProtect disconnects the battery from nonessential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The BatteryProtect is a unidirectional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal. Please contact your dealer for any returns, repairs or support issues related to this product. Features: Incorrect installation can be hazardous — consult a licensed professional and follow electrical codes. BatteryProtect can be set to engage/disengage at several voltages via the seven-segment display. 48-Volt auto-ranging; automatically detects system voltage. Maximum continuous load current 100 A; peak current (30 seconds) 250 A. Ideal for battery management in marine, RV, solar and automotive battery systems.
- Incorrect installation can be hazardous, Please consult a licensed professional and follow all applicable electrical codes during installation
- Victron Energy BatteryProtect can be set to engage / disengage at several different voltages, the seven segment display will indicate which setting has been chosen
- 48-Volt auto ranging - Victron Energy BatteryProtect automatically detects system voltage
- Maximum continuous load current 100 amp and Peak current (during 30 seconds) 250 amp
- Victron EnergyBattery Protect 48-Volt 100 amp disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine
Specifications:
| Materials & Construction | |
| Color | Blue |
| Product Details | |
| Is Discontinued By Manufacturer | No |
| Sizing & Dimensions | |
| Height | 9.25 inches |
| Length | 4.25 inches |
| Product Dimensions | 2.56 x 4.25 x 9.25 inches |
| Weight | 1.76 pounds |
| Width | 2.56 inches |
| Technical Specifications | |
| Maximum Continuous Current | 100 amp |
| Output Voltage | 48 Volts (DC) |
| Peak Current (30s) | 250 amp |
