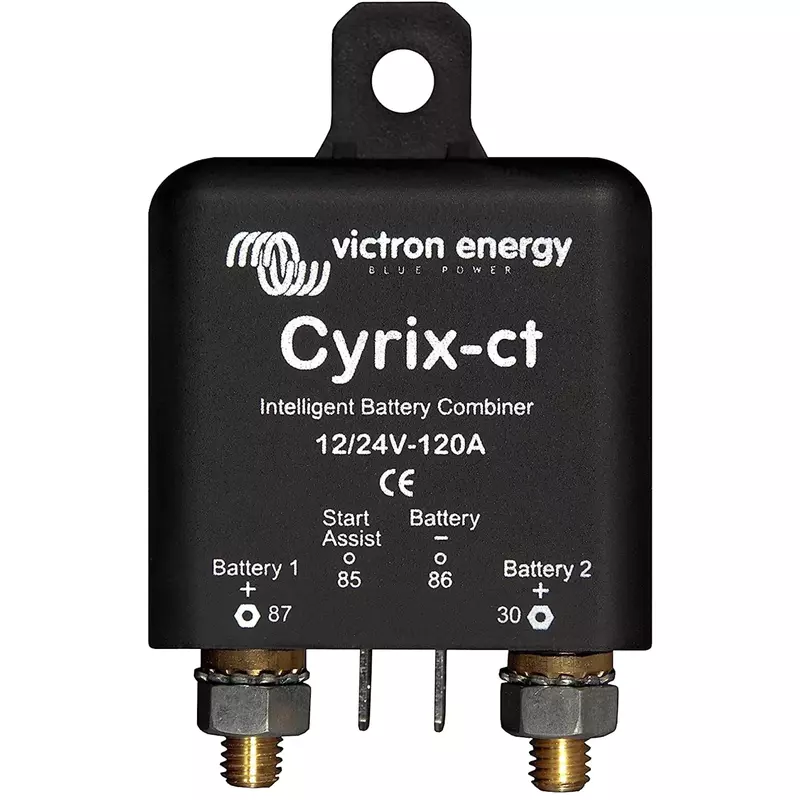

Victron Energy Cyrix-ct 12/24-Volt 120 amp Intelligent Battery Combiner 12-24V (120A)

CYRIX-CT 12/24V-120A Intelligent Battery Combiner The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged) and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so the output voltage of alternators or battery chargers does not need to be increased. Please contact your dealer for any returns, repairs or support issues related to this product. Parallel connection in case of emergency (Start Assist): Victron Energy Cyrix can also be engaged with a push button (Victron Energy Cyrix remains engaged during 30 seconds) or a switch to connect batteries in parallel manually. Protection against overheating (due to a long duration overload): Victron Energy Cyrix will disengage in case of excessive contact temperature, and reengage again after it has cooled down. Intelligent battery monitoring to prevent unwanted switching: Victron Energy Cyrix-ct 12/24-Volt 120 amp looks at the general trend (voltage increasing or decreasing) and reverses a previous action only if the trend has reversed during a certain period of time.

• 5 year warranty
• No voltage loss: Victron Energy Cyrix battery combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased
• Parallel connection in case of emergency (Start Assist): Victron Energy Cyrix can also be engaged with a push button (Victron Energy Cyrix remains engaged during 30 seconds) or a switch to connect batteries in parallel manually. This is especially useful in case of emergency when the starter battery is discharged or damaged
• Protection against overheating (due to a long duration overload): Victron Energy Cyrix will disengage in case of excessive contact temperature, and reengage again after it has cooled down
• Intelligent battery monitoring to prevent unwanted switching: Victron Energy Cyrix-ct 12/24-Volt 120 amp looks at the general trend (voltage increasing or decreasing) and reverses a previous action only if the trend has reversed during a certain period of time. The time delay depends on the voltage deviation from the trend
