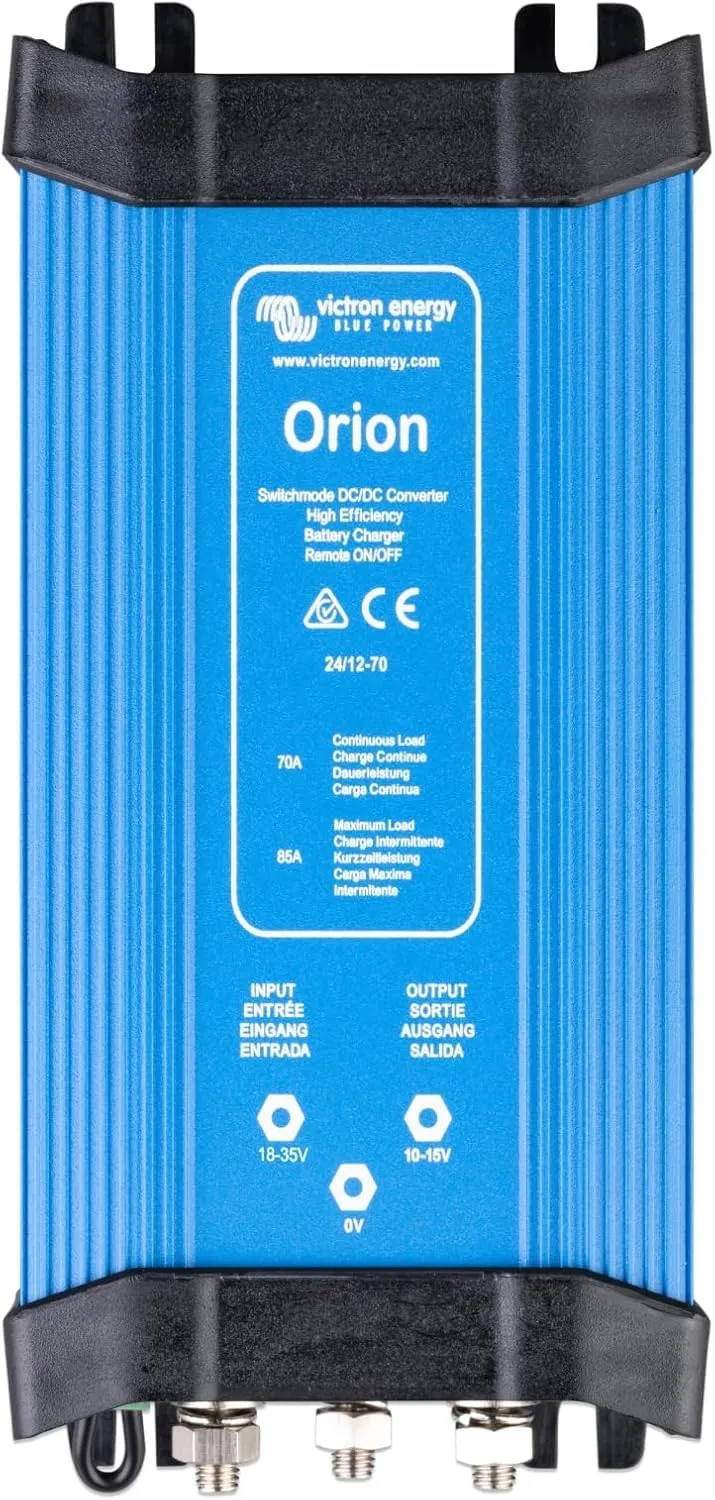

Victron Energy Orion 24/12-Volt 70 amp DC-DC Converter Non-Isolated, High Power 24/12V 70A

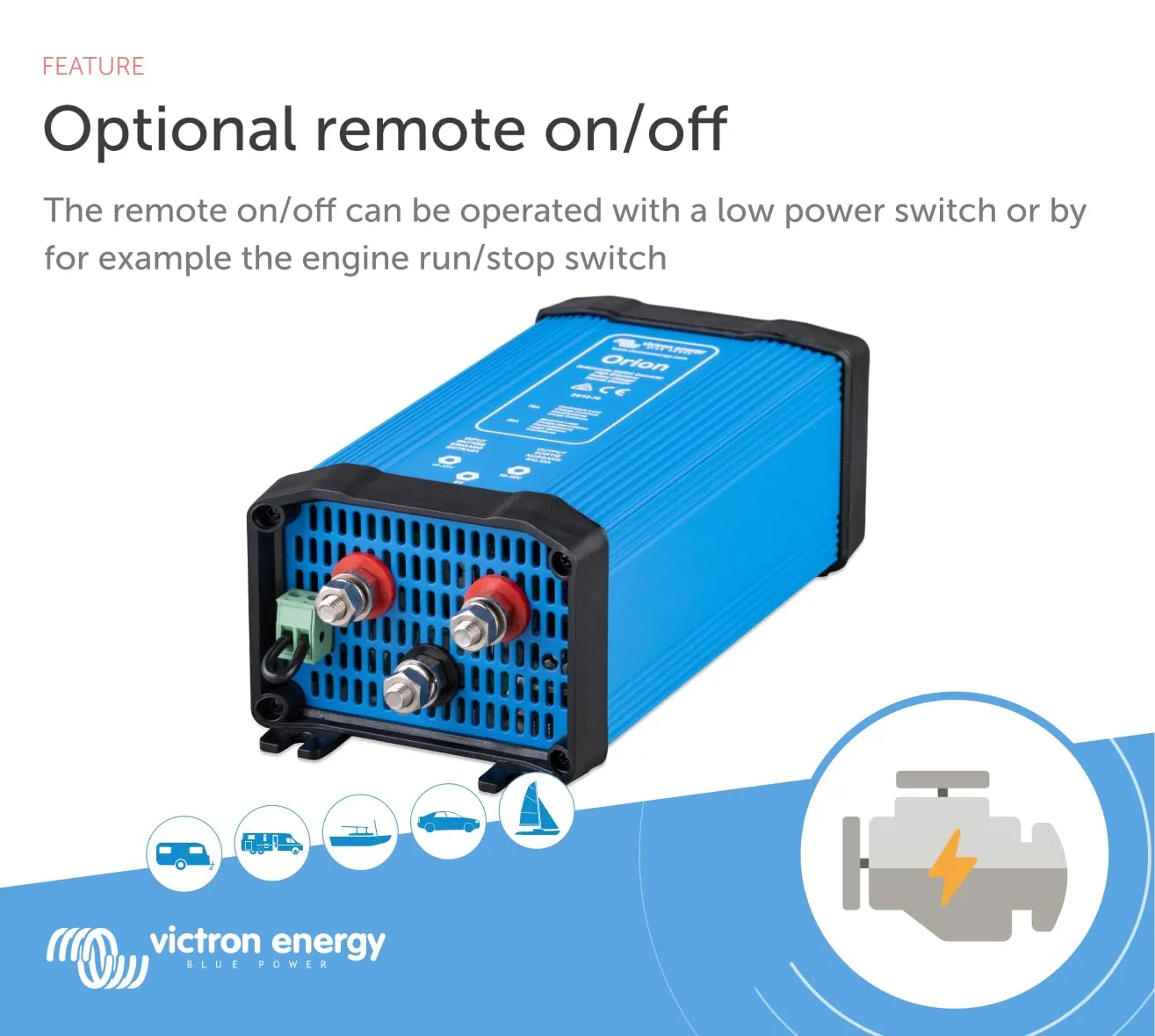

Orion 24/12-70 DC-DC Converter IP20 Remote on/off the connector The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel. Easy to Install Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40). Specifications: Input Voltage Range: 18-35V Under Voltage Shutdown: 14V Under Voltage Restart: 18V Output Voltage Adjustable with Potentiometer: Yes Output Voltage: Adjustable 10-15V F set 13,2V Efficiency: 92% Suitable to buffer-charge a battery: Yes Can be connected in Parallel: Yes Continous output current: 70 Amp Max ouput current: 85 Amp Fan assisted cooling temp controlled: Yes Galvanic isolation: No Off load current: Remote on-off: Yes Please contact your dealer for any returns, repairs or support issues related to this product.

• Easy to install and Widely used in motor, marine, electronic systems, dashcam, car, boat, RV, truck, golf cart, LCD TV, advertising screen, led strip light, monitoring system, solar pad and more

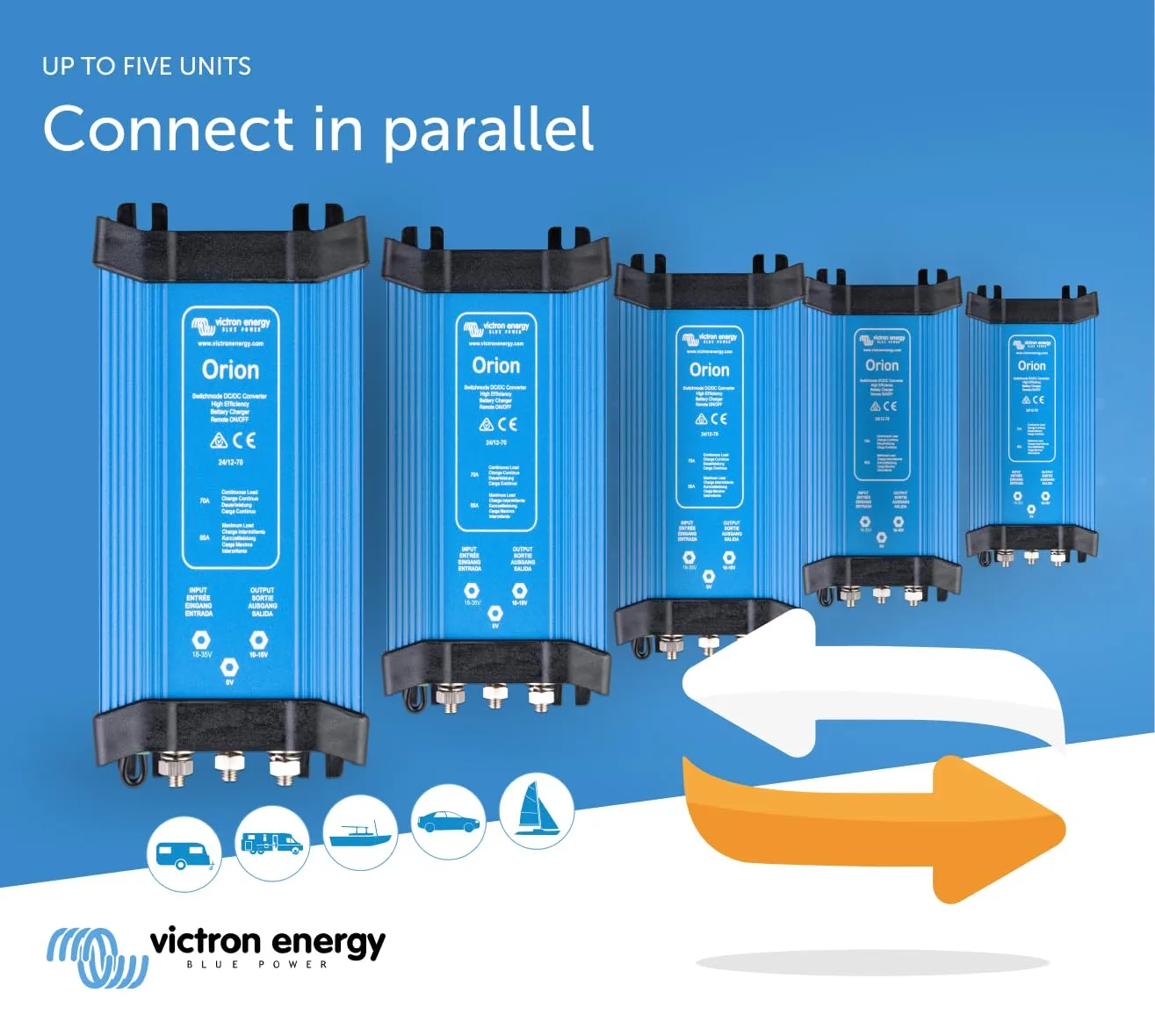

• All models with adjustable output can be paralleled to increase output current - Up to five units can be connected in parallel.

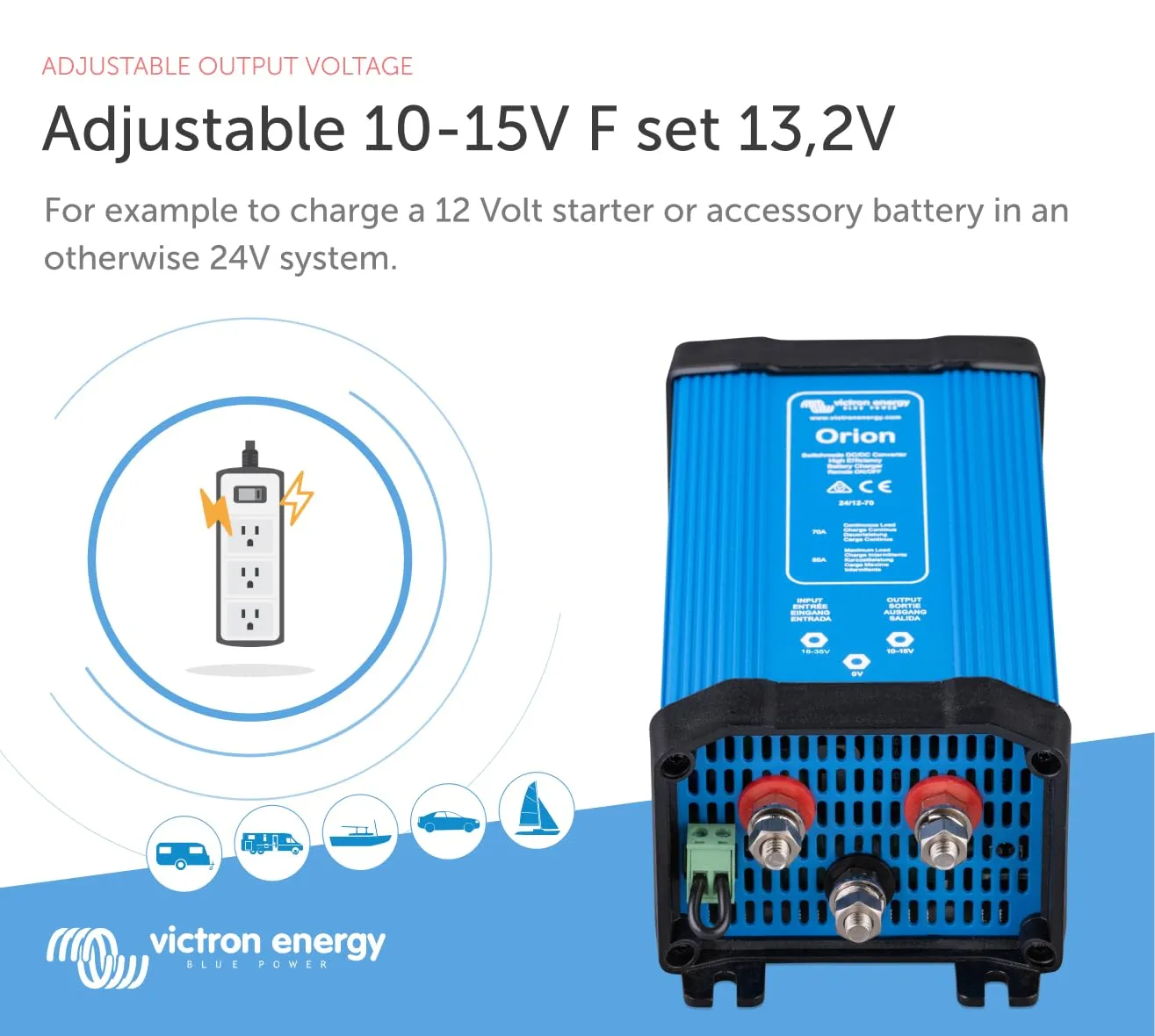

• All models with adjustable output can also be used as a battery charger - For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
• The remote on-off connector eliminates the need for a high current switch in the input wiring, the remote on-off can be operated with a low power switch or by the engine run/stop switch
• Victron Energy Orion Non-Isolated DC-DC Converter converts voltage from DC 24-Volt (18-Volt - 35-Volt) to DC 12-Volt (10-Volt - 15-Volt) with a 70 amp output and 92% high conversion efficiency
