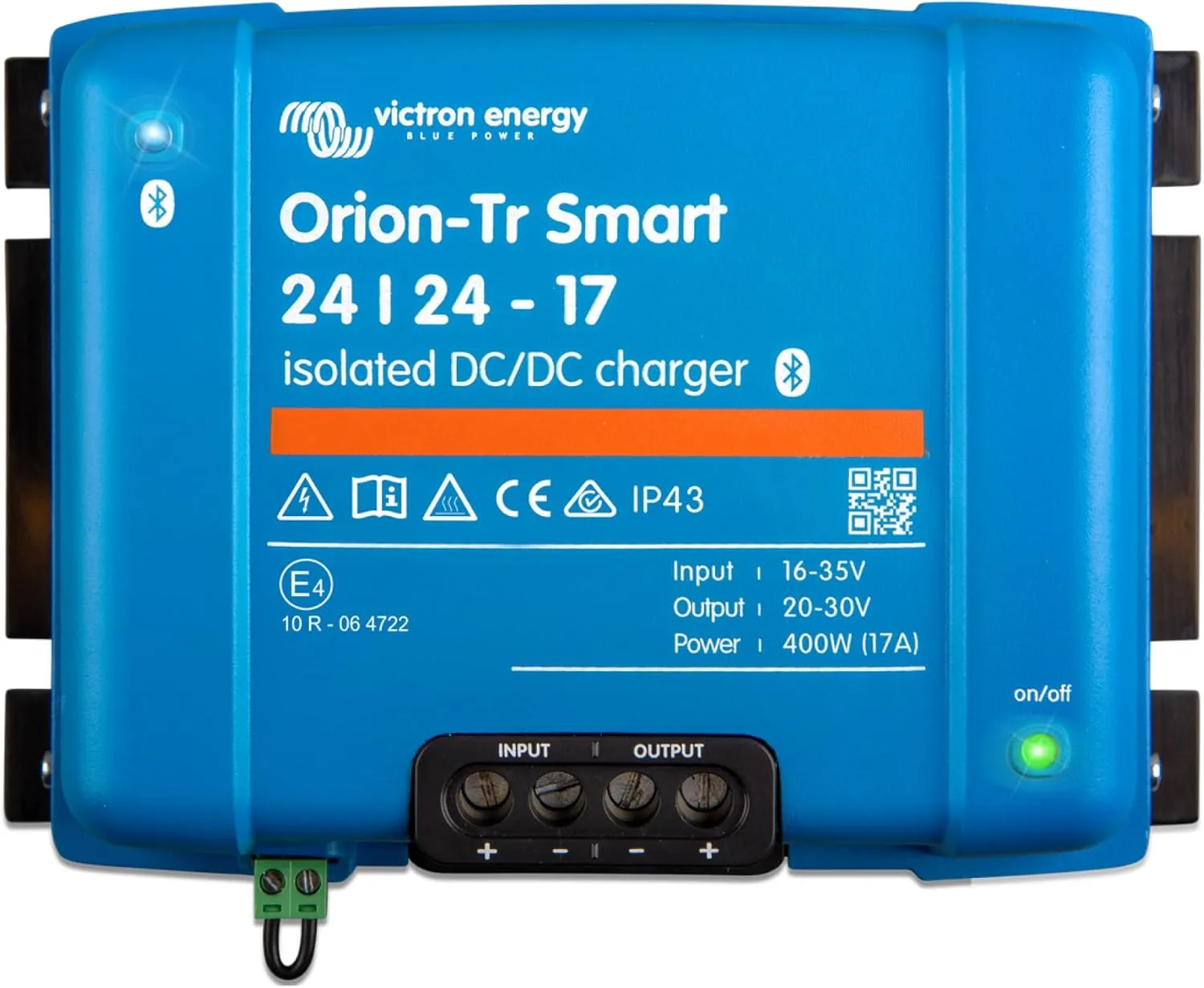

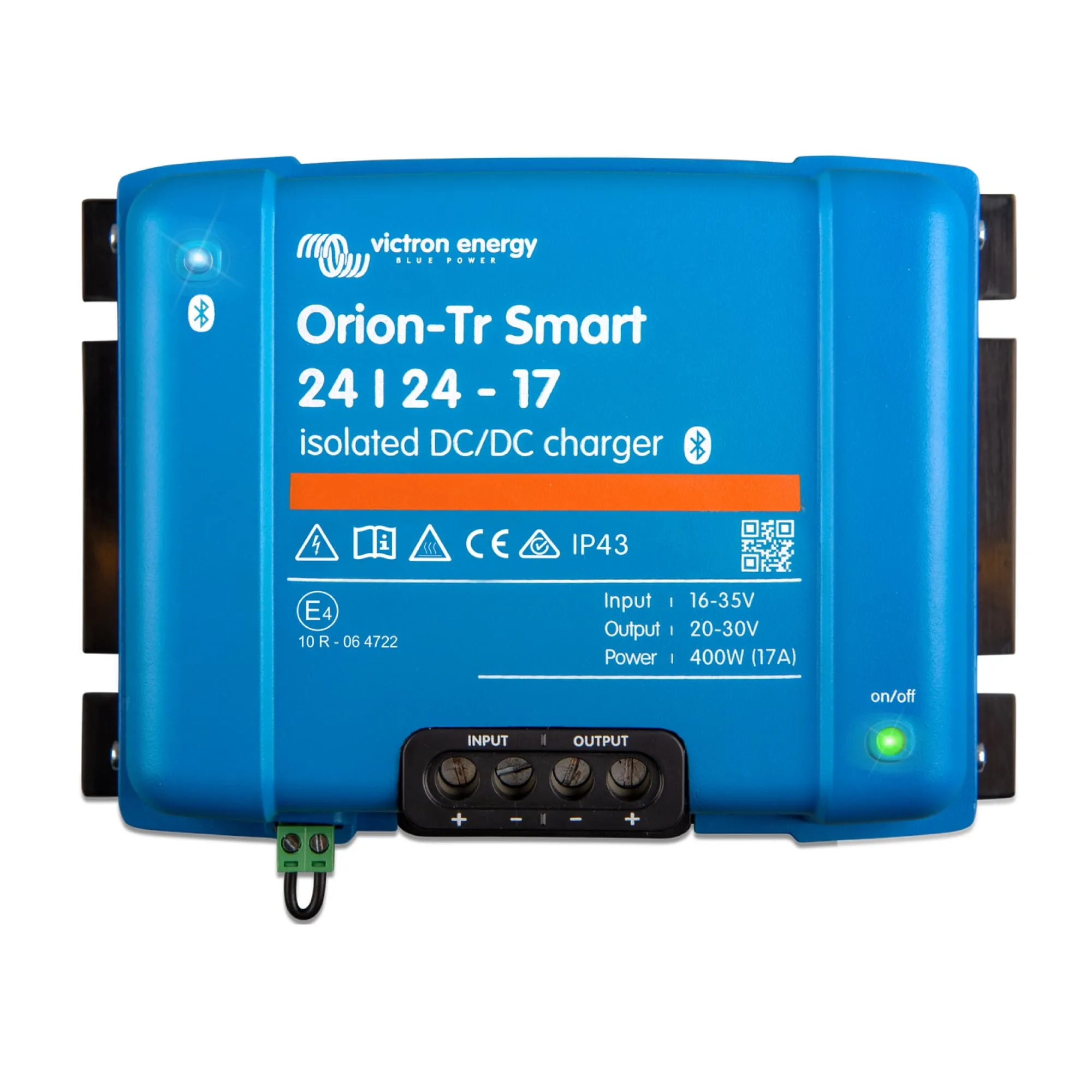

Victron Energy Orion-Tr Smart DC to DC Charger (Bluetooth) - 24/24-Volt 17 amp 400-Watt
Customize

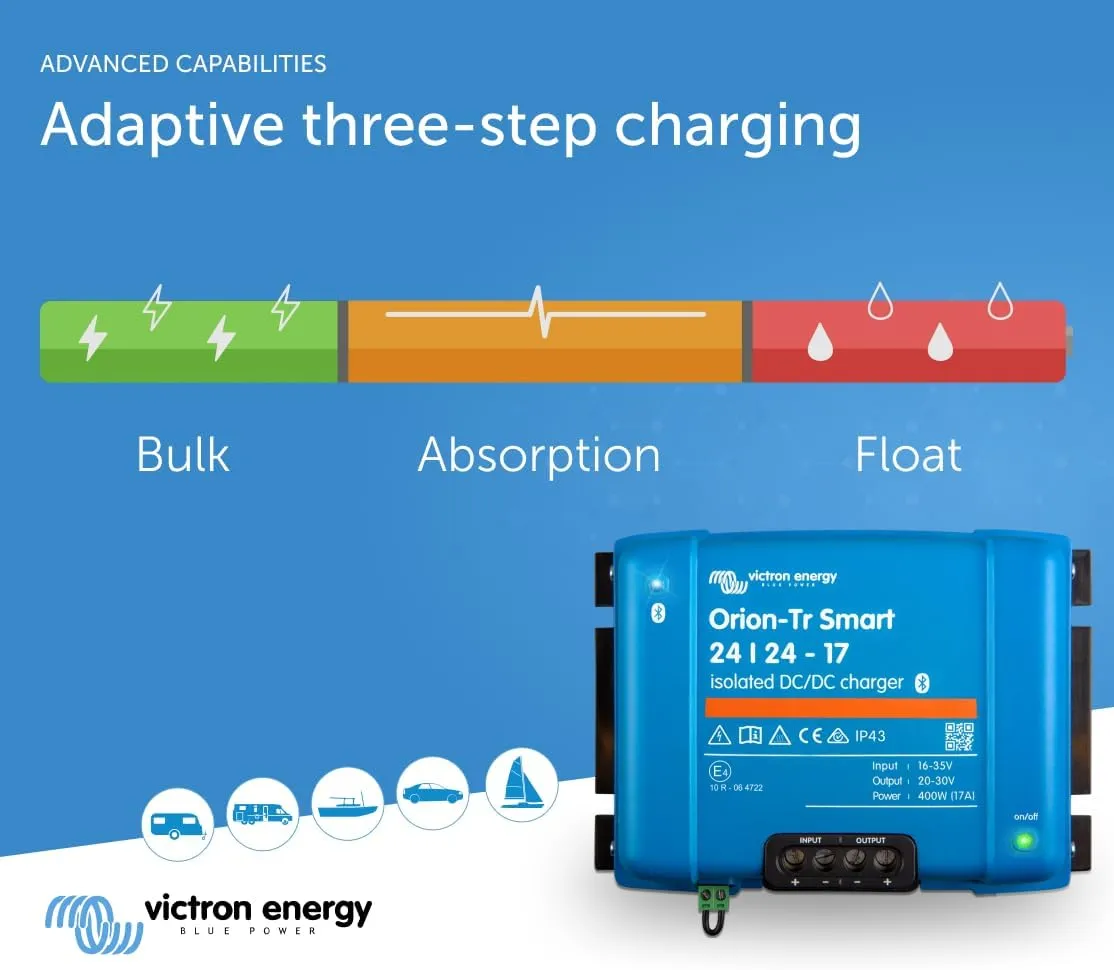

Orion-TR Smart Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP The Orion-Tr Smart DC-DC charger is a professional DC-to-DC adaptive 3-stage charger with built-in Bluetooth. Bluetooth Smart Enabled: Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product. Fully Programmable: Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism. Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float: For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries, the absorption time is fixed (the default is 2 hours). Alternatively, a fixed output voltage can be chosen. Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines): The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents the unwanted discharge of the starter battery (see manual for details). Remote On/Off: A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example). All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current: An unlimited number of units can be connected in parallel. High Temperature Protected: The output current will reduce at high ambient temperatures. IP43 Protection: When installed with the screw terminals oriented downward. Screw Terminals: No special tools are needed for installation. Input fuse (not replaceable) Specifications: Input Voltage Range: 20-35 V Under Voltage Shut Down: 14 V Under Voltage Restart: 15 V Nominal Output Voltage: 24.2 V Output Voltage Adjust Range: 20-30 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A Maximum Output Current (10 S) at Nominal Output Voltage: 25 A Short Circuit Output Current: 40A Cont. Output Power at 25 Degrees C: 480 W Cont. Output Power at 40 Degrees C: 400 W Efficiency: 89% No Load Input Current (2): Standby Current: Less than 1 mA Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1,6 kg (3.5 lb) Dimensions (h x w x d) 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) Protection Category: IP43 (electronic components), IP22 (connection area) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 Please contact your dealer for any returns, repairs or support issues related to this product.
- Easy to Install: The screw terminals provide a convenient and easy installation process, eliminating the need for specialized tools.
- Flexible Power Solution: The DC DC charger is suitable for both lead acid and lithium batteries and unlimited multiple units can be connected in parallel to increase output power.

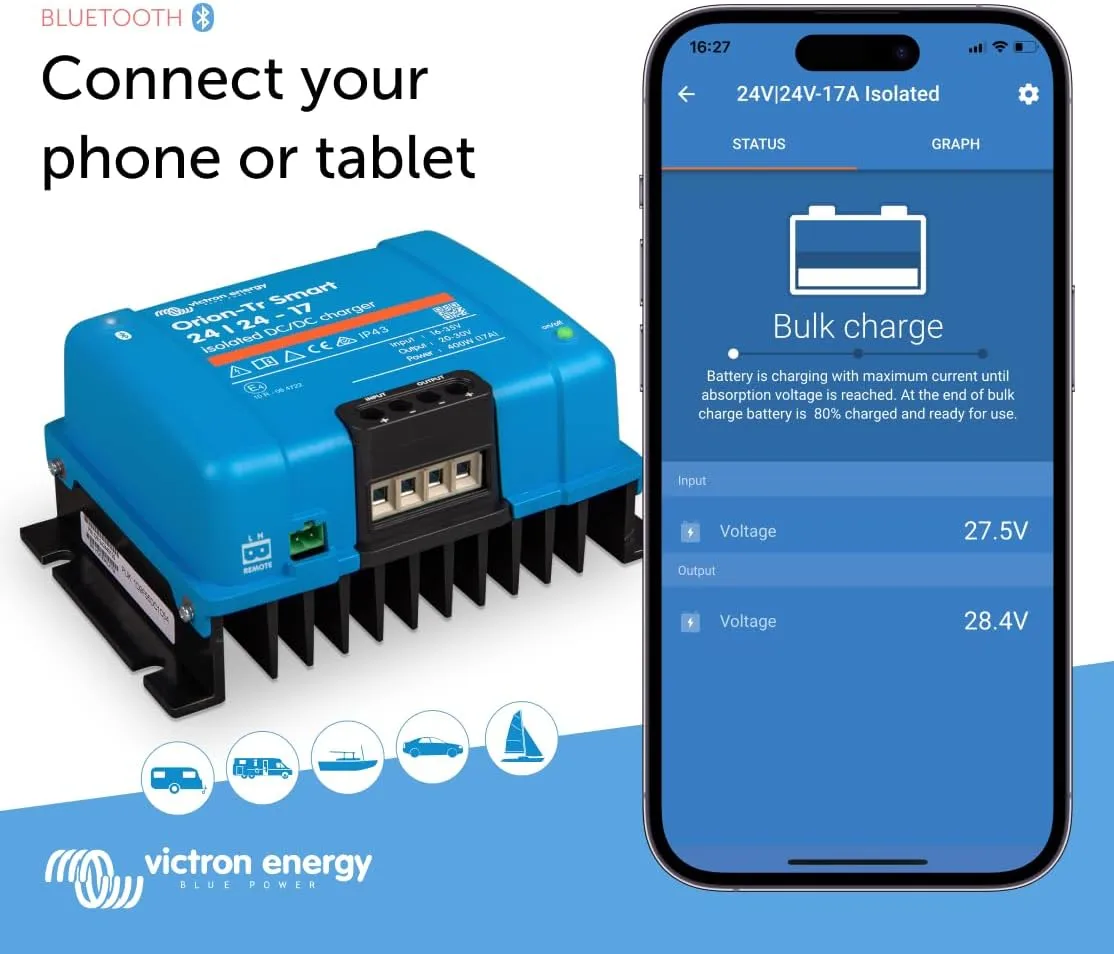

- Built-in Bluetooth: The DC to DC charger can be monitored and cotrolled with smartphone or tablet via Bluetooth and the VictronConnect App. This allows you to see the charger's status and make adjustments as needed.

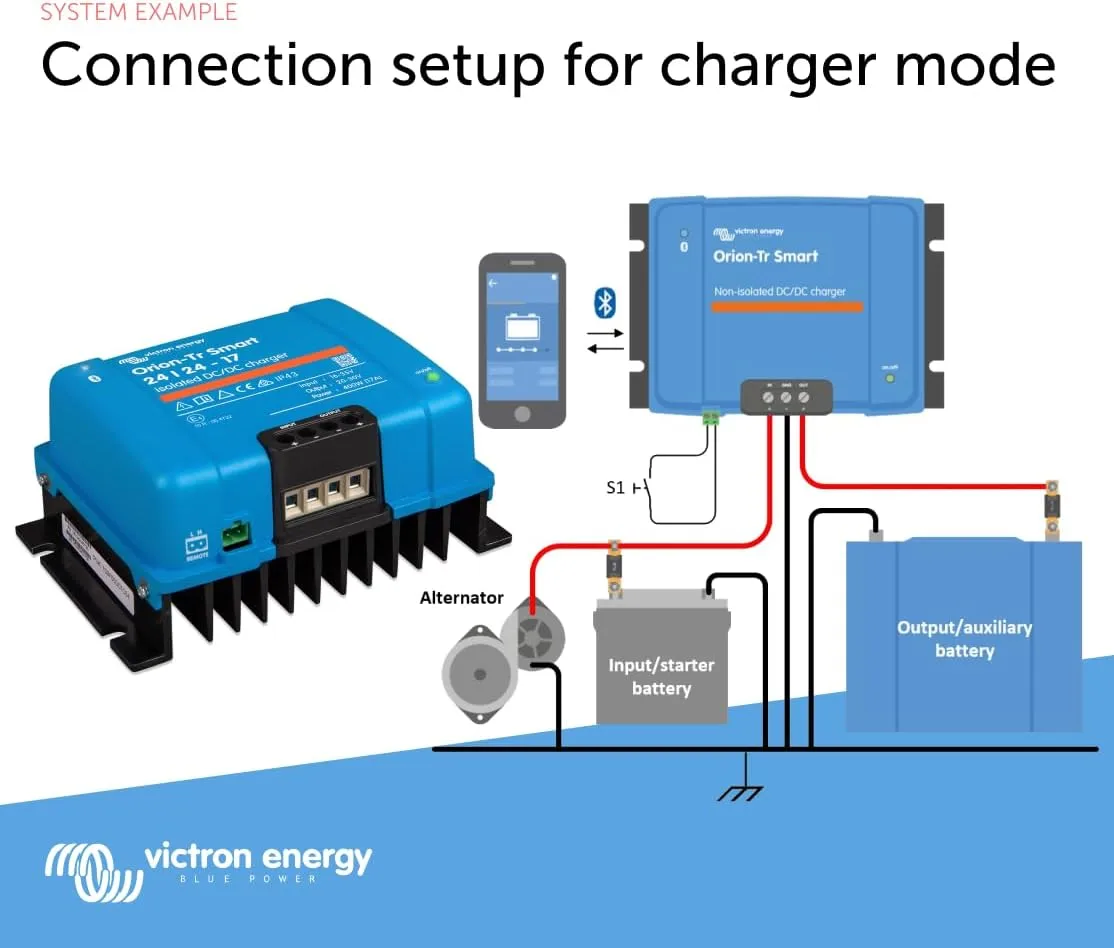

- Dual Battery Charging: The Victron DC to DC charger is ideal for vehicles or boats where the alternator and start battery are used to charge the service battery.
- Professional DC to DC Charger: The Orion-Tr Smart DC-DC Charger is a professional charger that uses three stages to efficiently and safely charge your batteries.
Specifications:
| Materials & Construction | |
| Color | Blue |
| Product Details | |
| Is Discontinued By Manufacturer | No |

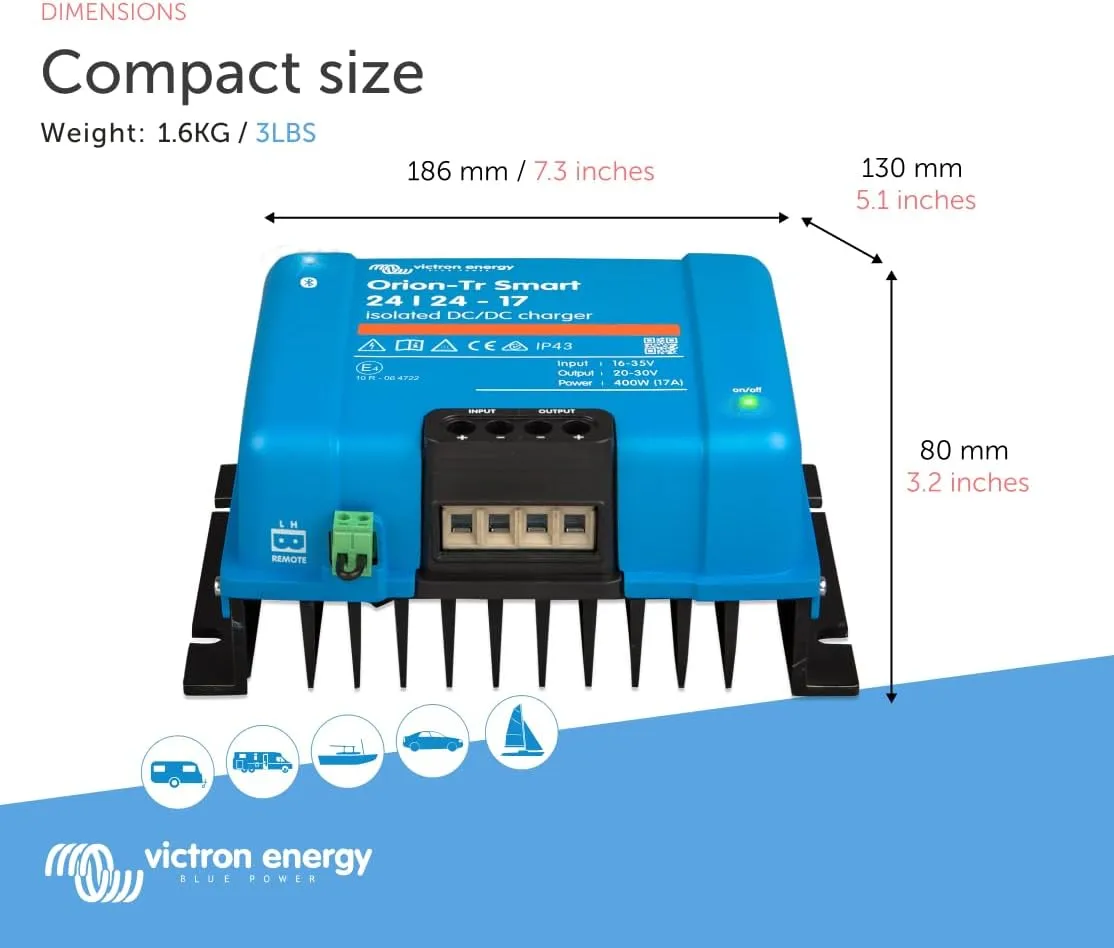

| Sizing & Dimensions | |
| Height | 5.1 inches |
| Length | 2.8 inches |
| Product Dimensions | 2.8 x 7.3 x 5.1 inches |
| Product Weight | 3.52 pounds |
| Weight | 3.53 pounds |
| Width | 7.3 inches |
| Technical Specifications | |
| Output Voltage | 24 Volts (DC) |
