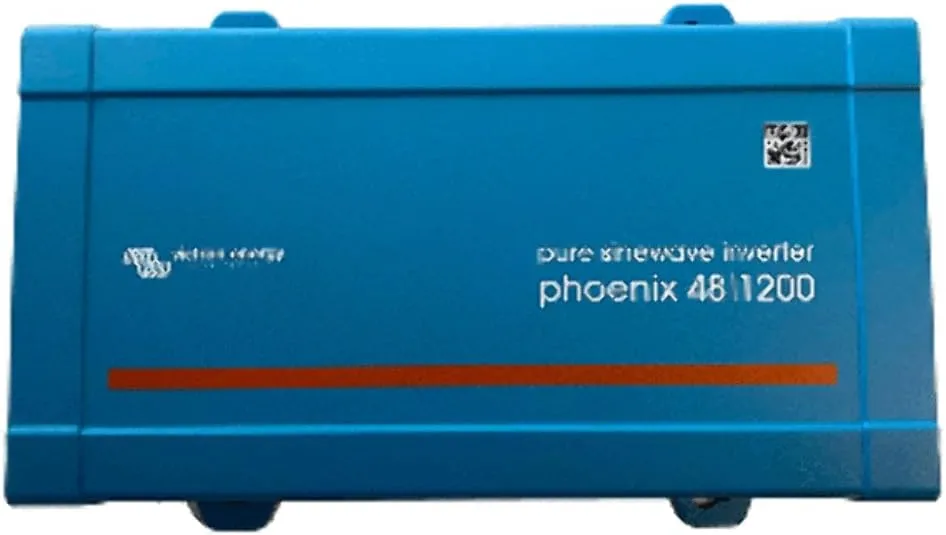

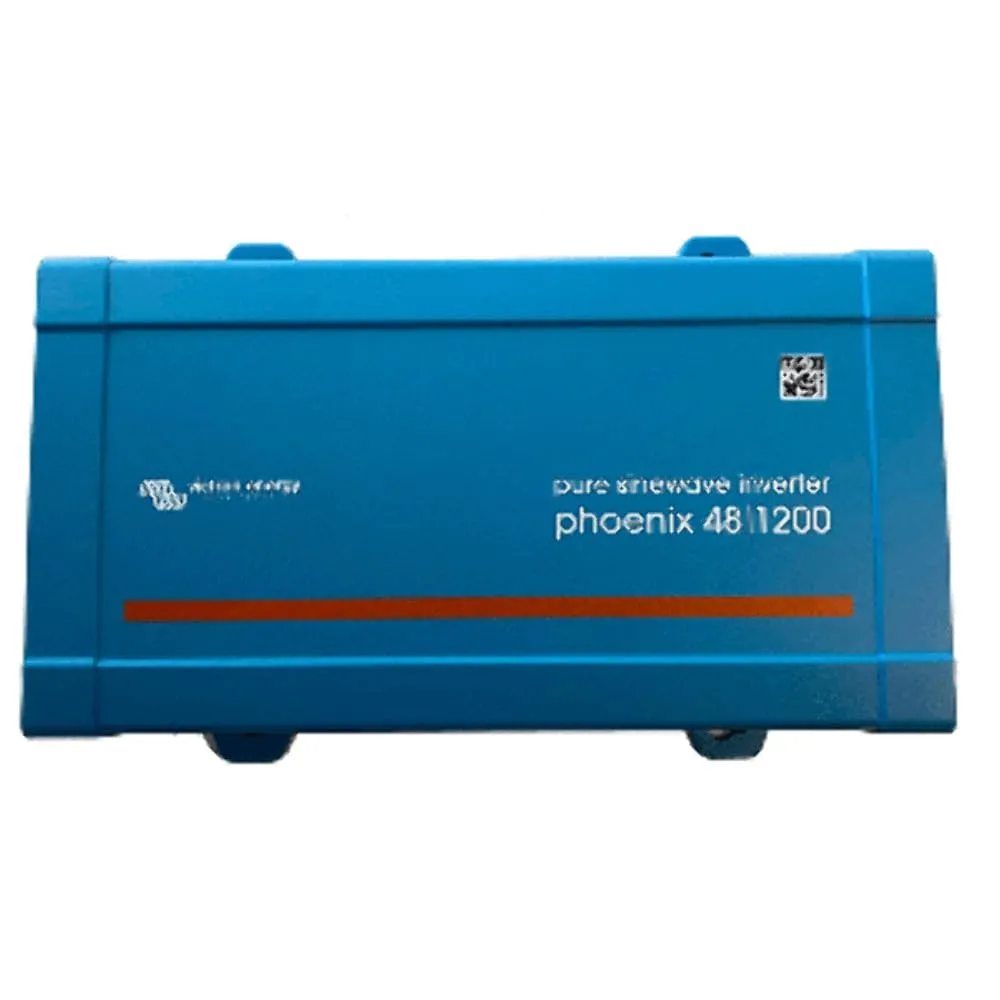

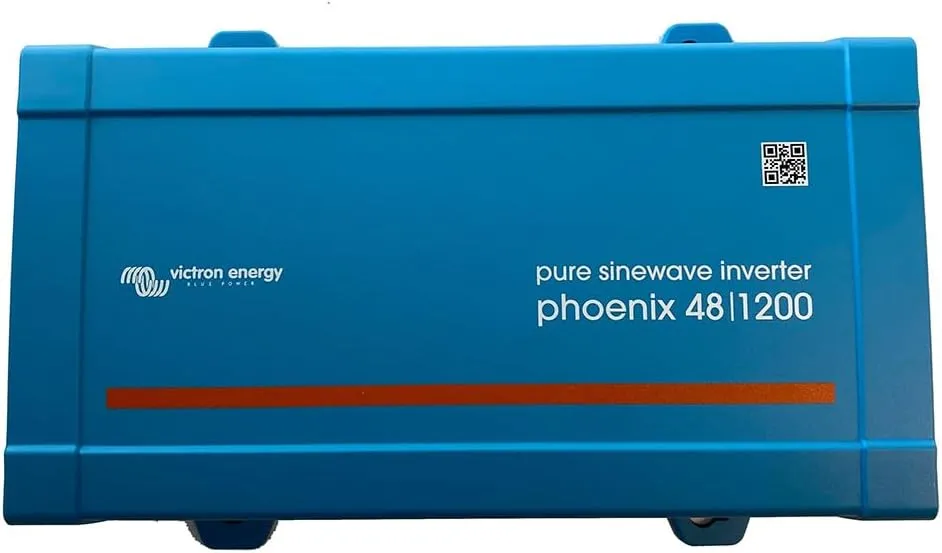

Victron Phoenix Inverter 48VDC - 1200VA - 120VAC - VE.Direct - NEMA 5-15R

Phoenix Inverter 48VDC - 1200VA - 120VAC - VE.Direct - NEMA 5-15R This Phoenix Inverter allows you to power domestic equipment requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 48VDC. VE.Direct Communication Port The VE.Direct Port Can Be Connected To: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBook, and other devices (VE.Direct Bluetooth Smart dongle needed) Fully Configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load-dependent cut-off level Output voltage 210 - 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Monitoring: In- and output voltage, % load, and alarms Proven Reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on. Remote on/off A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector. LED Diagnosis Please see the manual for a description. To Transfer the Load to Another AC Source: The Automatic Transfer Switch For the low-power inverters, we recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Inverter Specifications: Cont. Output Power at 25°C: 1200VA Cont. Output Power at 25°C/40°C: 1000 / 850W Peak Power: 2200W Output AC voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1% Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff DC Low Restart and Alarm (adjustable): 10,9 / 21,8 / 43,6V Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V Maximum Efficiency: 91 / 91 / 92% Zero Load Power: 7 / 8 / 10W Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 1 / 1,5 / 3,0W ECO Mode Stop and Start Power Setting: Adjustable Protection: a – f Operating Temperature Range: -40 to +65°C (fan-assisted cooling) Derate 1,25% per °C above 40°C Humidity (non-condensing): Max 95% Enclosure Specifications: Material & Color: Steel chassis and plastic cover (blue Ral 5012) Battery-Connection: Screw terminals Maximum Cable Cross-Section: 35 / 25 / 25mm2 / AWG2 / 4 / 4 Standard AC outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included) UK (BS 1363), AU/NZ (AS/NZS 3112) / 120V: Nema 5-15R, GFCI Protection category: IP 21 Weight: 7,4kg / 16,3lbs Dimensions (h x w x d): 117 x 232 x 327mm / (4.6 x 9.1 x 12.9 inch) Accessories: Remote On-Off: Yes Automatic Transfer Switch: Filax Standards: Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3) EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 Automotive Directive: ECE R10-4 Please contact your dealer for any returns, repairs or support issues related to this product.

• Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
