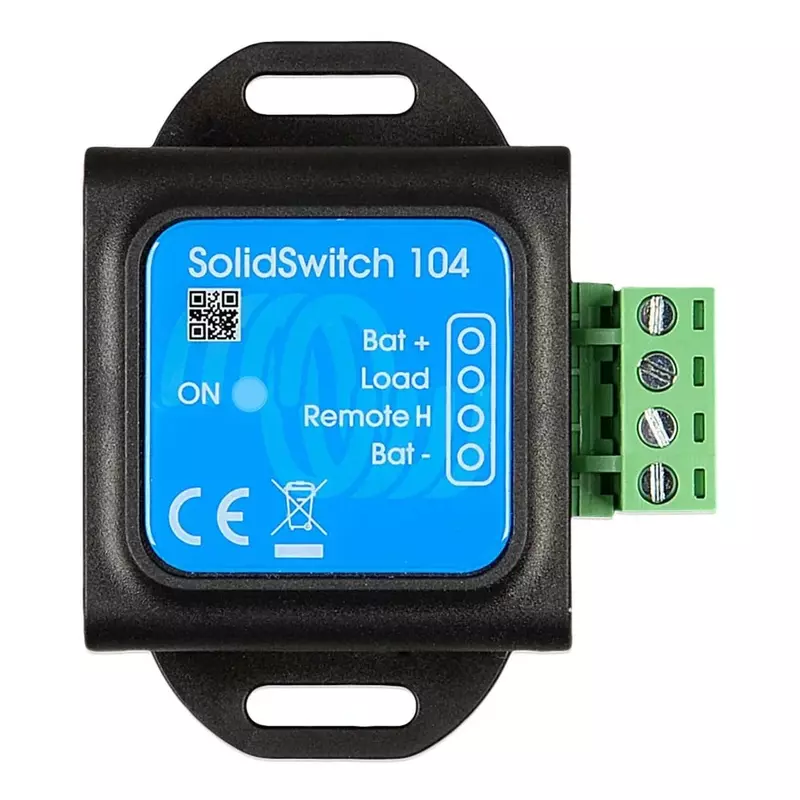

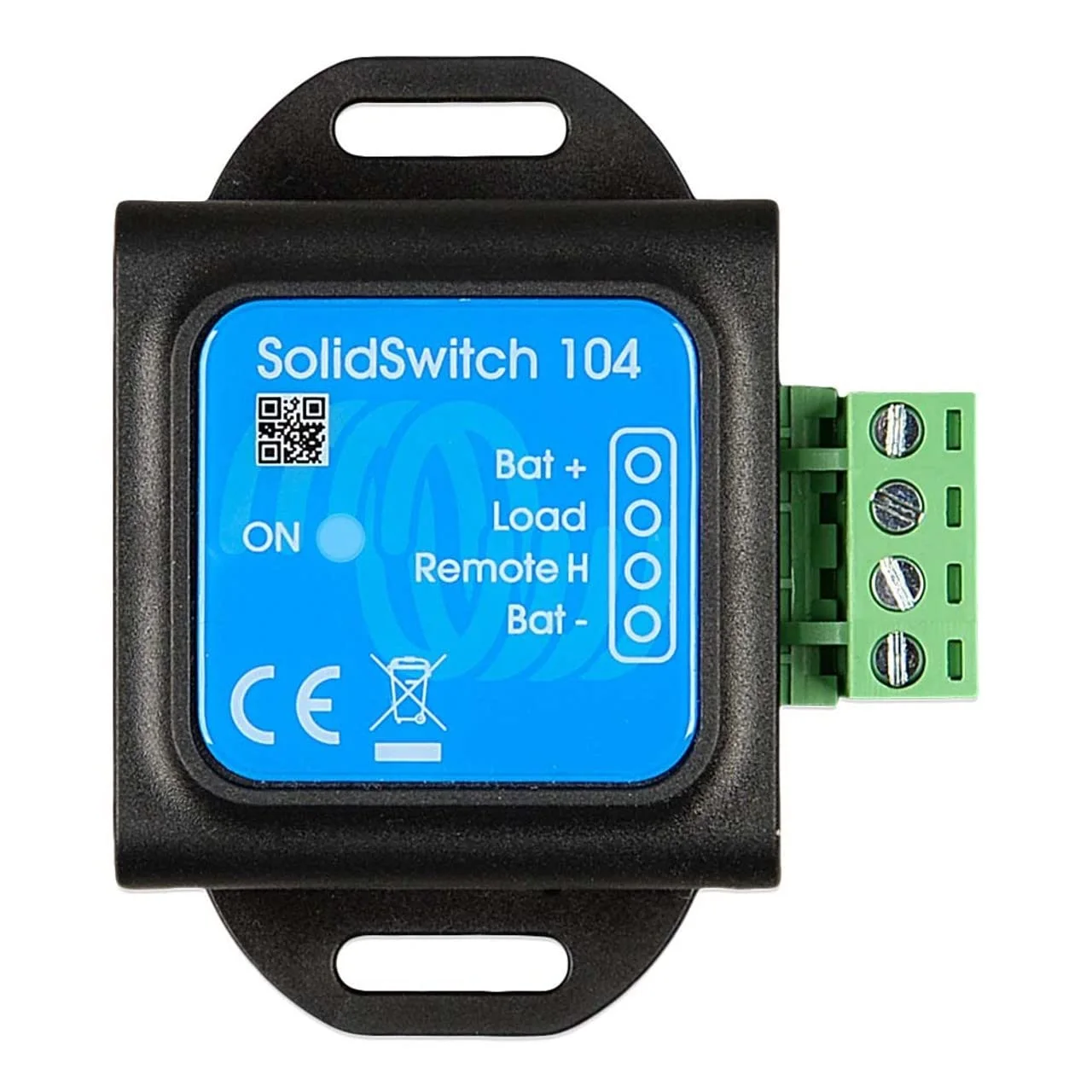

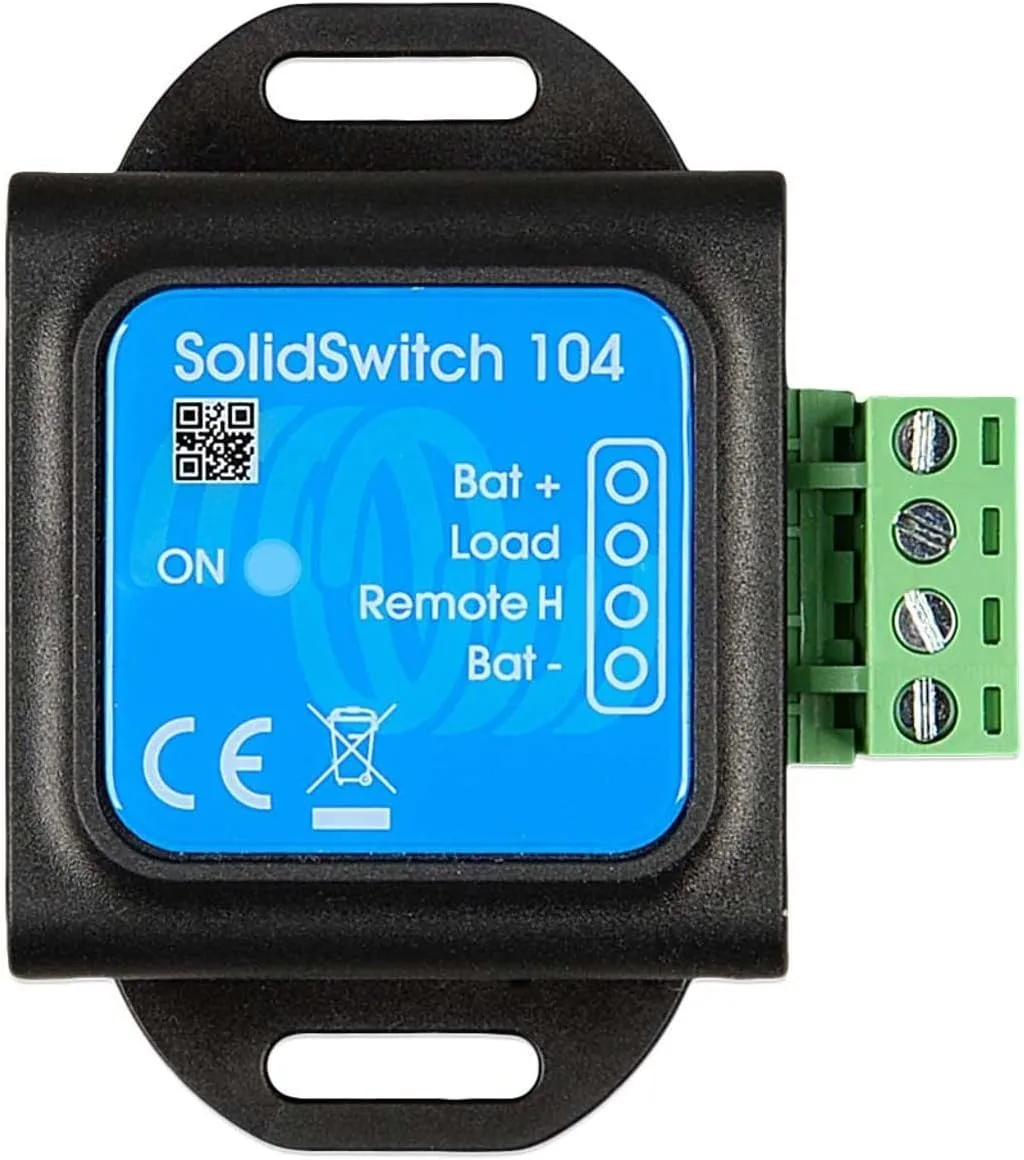

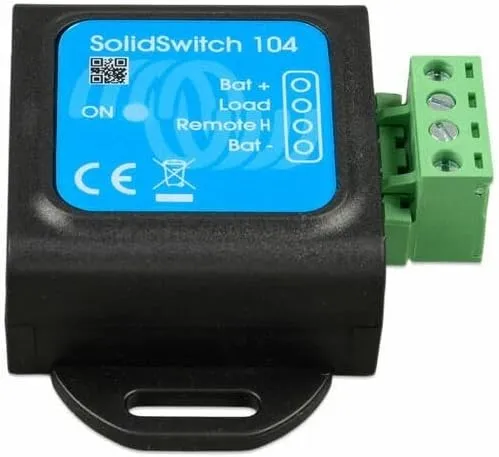

Victron SolidSwitch 104 f/DC Loads Up to 70V/4A

SolidSwitch 104 for DC Loads Up To 70V/4A. Features: The SolidSwitch 104 will switch DC loads of up to 70V/4A and can be controlled by a low-power digital signal. The DC load can be resistive, capacitive or inductive (such as the coil of a high-power contactor). The SolidSwitch is not reverse polarity protected and not short circuit proof. Please contact your dealer for any returns, repairs or support issues related to this product. Additional features: very low control current, ideal for battery management systems (BMS) and applications where minimizing standby consumption is important. Includes screw connector terminals and automatic operation mode. Compact dimensions and light package weight make it suitable for integration into battery enclosures and control panels.

• It controls an external alternator regulator, in a Victron Energy lithium system
• Switch a DC load, such as a light. A low power control circuit, max current drawn will only be 0.1 mA, can then control a load of up to 4 AMPs
• Increase the number of chargers that can be wired to the ATC (allow-to-charge) output of a Victron Energy BMS
• The feature making it such a usable switch is its low current draw. The SolidSwitch will draw 0.04 Ah a month, while a small relay can easily take 10 Ah a month
• Victron Energy SolidSwitch 104 will switch DC loads of up to 70V/4A and can be controlled by a low power digital signal
