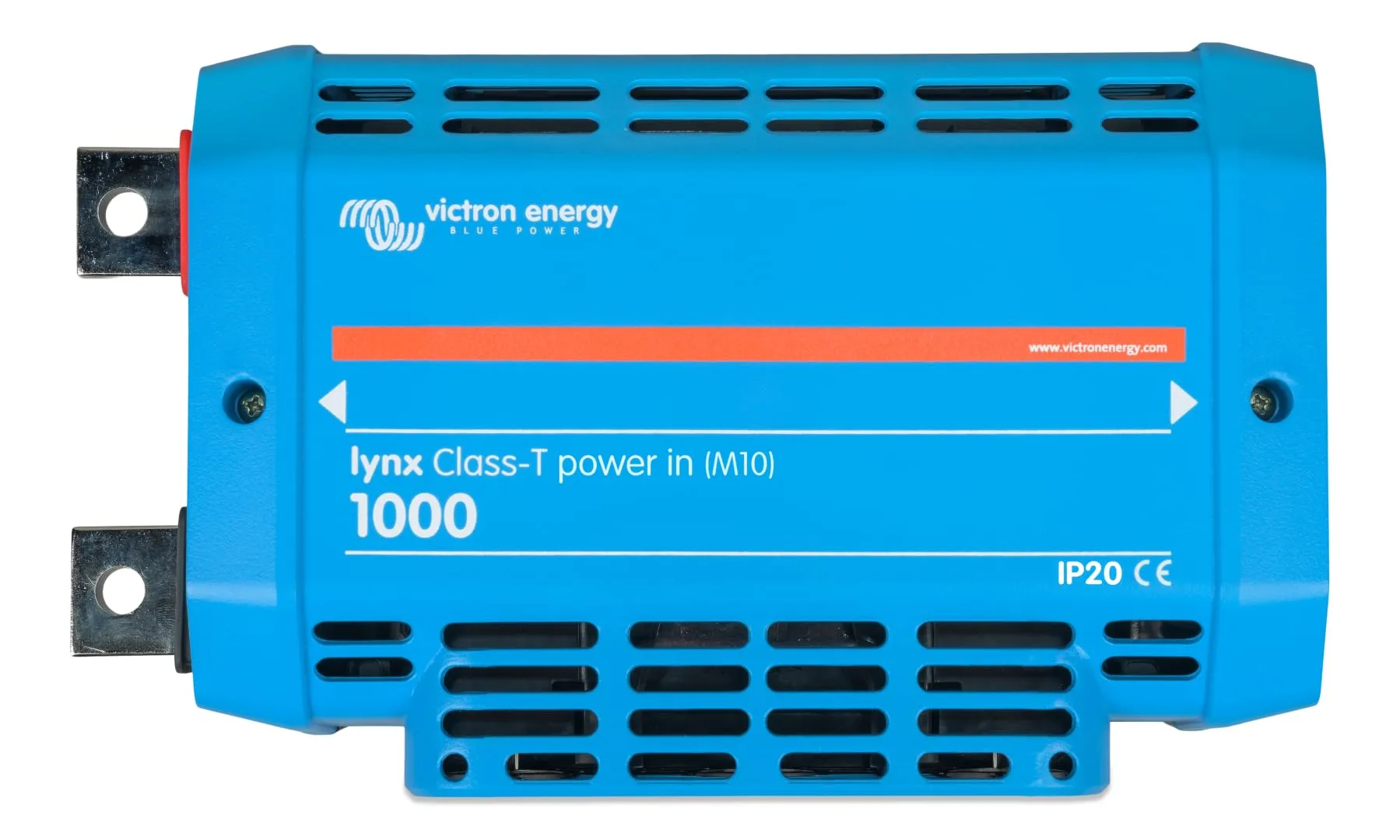

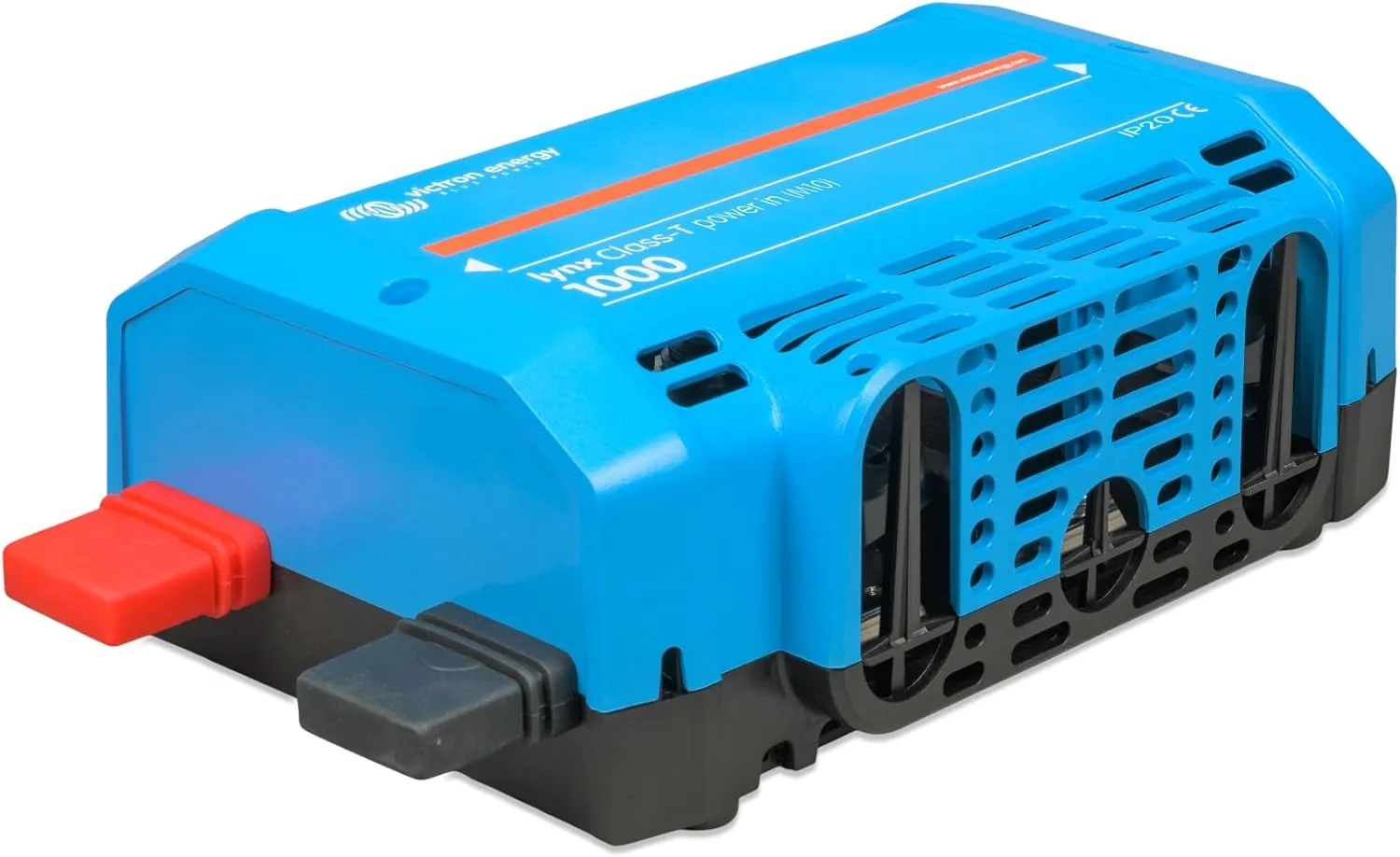

Victron Lynx Power-In Class-T M10 Terminals

Lynx Power-In Class-T M10 Terminals The Lynx Class-T Power In connects and fuses up to two strings of lithium batteries. It features a positive and negative busbar, connections for two Class-T fuses, and a connection to ground the DC system. The Class T-fuses are available in 225A, 250A, 350A, and 400A (must be purchased separately). For installations using three or more strings of lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products. The Lynx Distribution System The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management. The Lynx Distribution System Consists of the Following Parts Lynx Power In A positive and negative busbar with four batteries or DC equipment connections. Lynx Distributor A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring is available in two versions. Lynx Shunt VE.Can A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device. Lynx Smart BMS For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars. Specifications Power: Voltage Range: 9 - 60Vdc Current Rating: 1000Adc continuous Connections: M10 Busbar: 3/8” Physical: Enclosure Material: ABS Enclosure Dimensions (H x W x D): 279 x 169 x 97mm Unit Weight: 2.1 kg Busbar Material: Tinned copper Busbar Dimensions (H x W): 8 x 30mm Environmental: Operating Temperature Range: -40°C to +60°C Storage Temperature Range: -40°C to +60°C Humidity: Max. 95% (non-condensing) Protection Class: IP20 Please contact your dealer for any returns, repairs or support issues related to this product.

• The Lynx Class-T Power In (M10) is a core component of the Lynx Distribution system.
• The Lynx Class-T Power In (M10) seamlessly integrates with all other M10 Lynx products.
• Class-T fuses are available in 225A, 250A, 350A, and 400A, and must be purchased separately.
• The Lynx Class-T Power In can connect and fuse up to two strings of Lithium batteries, making it ideal for smaller battery systems.
• For installations requiring three or more battery strings, multiple Lynx Class-T modules can be combined.
