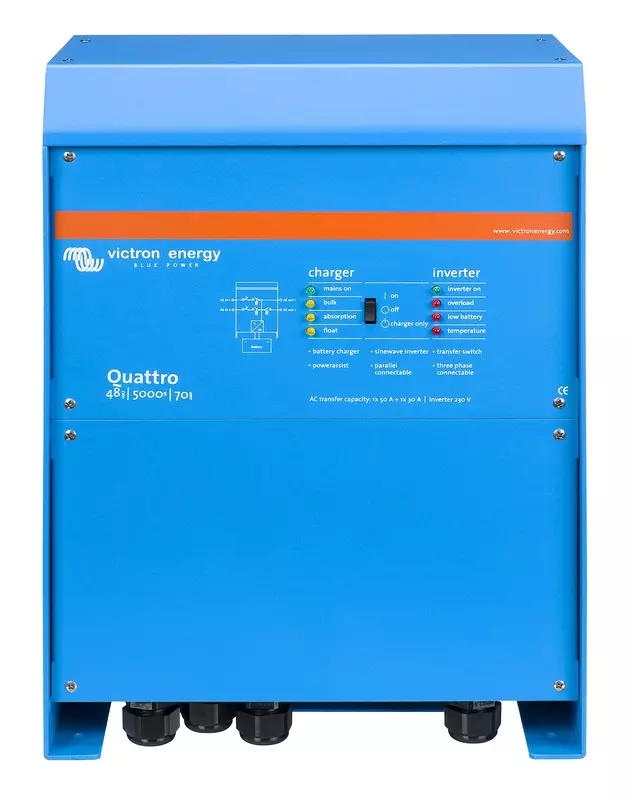

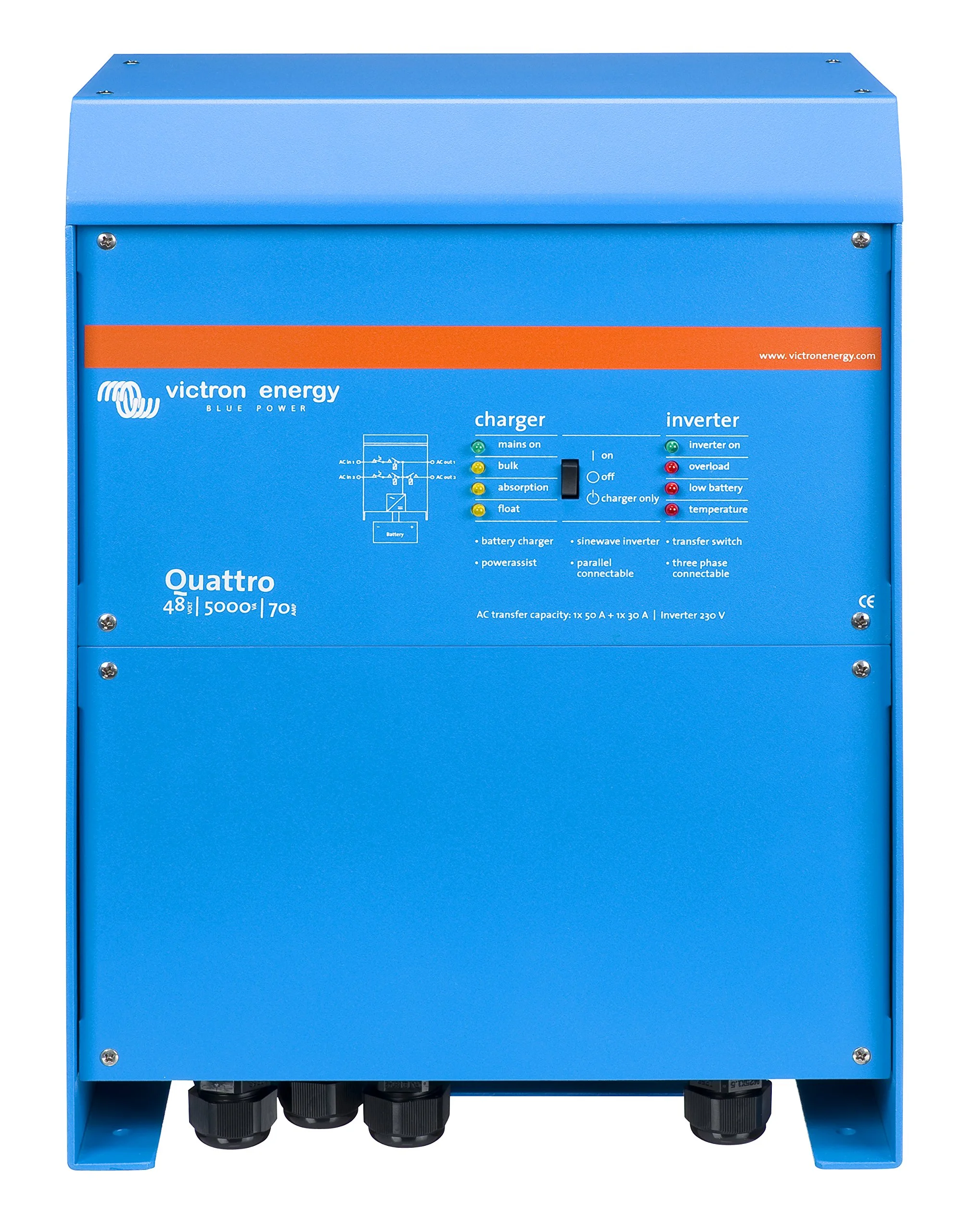

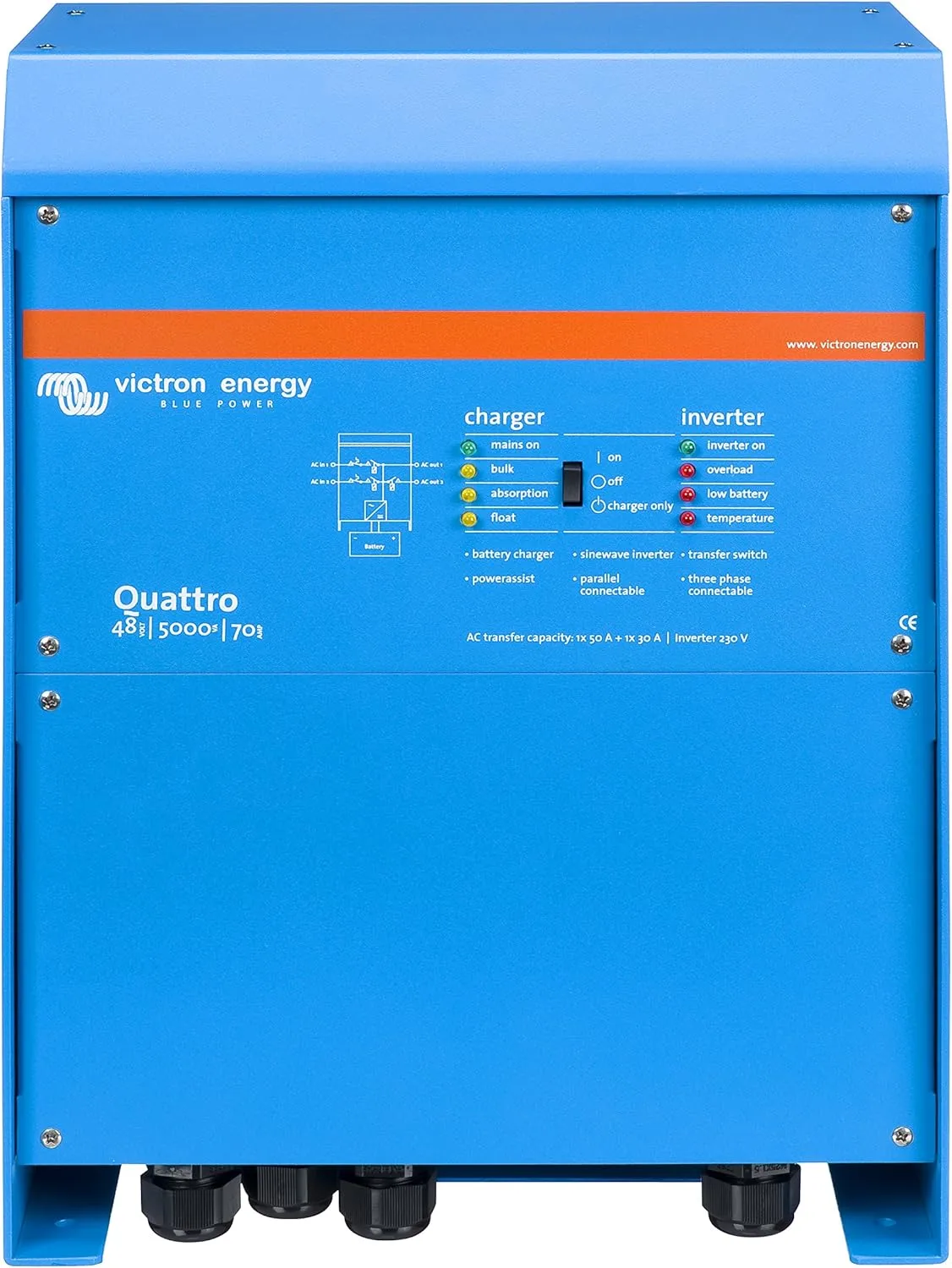

Victron Quattro 48/5000/70-100/100 120V VE.Bus (UL)

Quattro 48/5000/70 100/100 120V VE.Bus UL-Listed Multifunctional Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split-phase operation and parallel operation. Two AC Inputs & Two AC Outputs The Quattro can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output. Unique PowerAssist Feature The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery. Virutually Unlimited Power Thanks to Parallel Operation Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities. Remote Monitoring & Control When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more. Please contact your dealer for any returns, repairs or support issues related to this product. The Victron Quattro 48/5000/70-100/100 120V VE.Bus (UL) is a high-performance, UL-certified inverter charger that combines a 5000VA pure sine wave inverter, 70A battery charger, and dual 100A AC inputs into one integrated solution. Designed for off-grid, backup, marine, and RV power systems, it features PowerAssist technology to prevent overloads by drawing extra power from the battery when needed. The built-in UPS function ensures uninterrupted operation during grid failures by instantly switching to inverter power. Multiple units can be configured in parallel or for three-phase operation to scale power as needed. When connected to a GX device, the system offers full monitoring and control via the Victron Remote Management (VRM) portal, allowing access from anywhere in the world. Built for reliability and flexibility, the Quattro 48/5000 delivers efficient energy management for professionals who demand dependable power in any situation.

• REMOTE MONITORING VIA VRM Compatible with GX devices for full system access through the Victron Remote Management portal from anywhere in the world
• PARALLEL AND THREE-PHASE READY Supports up to six Quattros in parallel or 3-phase configuration, ideal for high-demand off-grid, RV, and industrial use cases
• SEAMLESS UPS FUNCTION Instantly switches to inverter mode during outages to ensure continuous power for sensitive equipment and critical systems
• POWERASSIST TECHNOLOGY Automatically supports generator or shore power during peak loads, preventing overloads by drawing additional power from batteries
• ADVANCED INVERTER CHARGER Combines 5000VA pure sine wave inverter, 70A battery charger, and dual 100A AC inputs for comprehensive energy management
