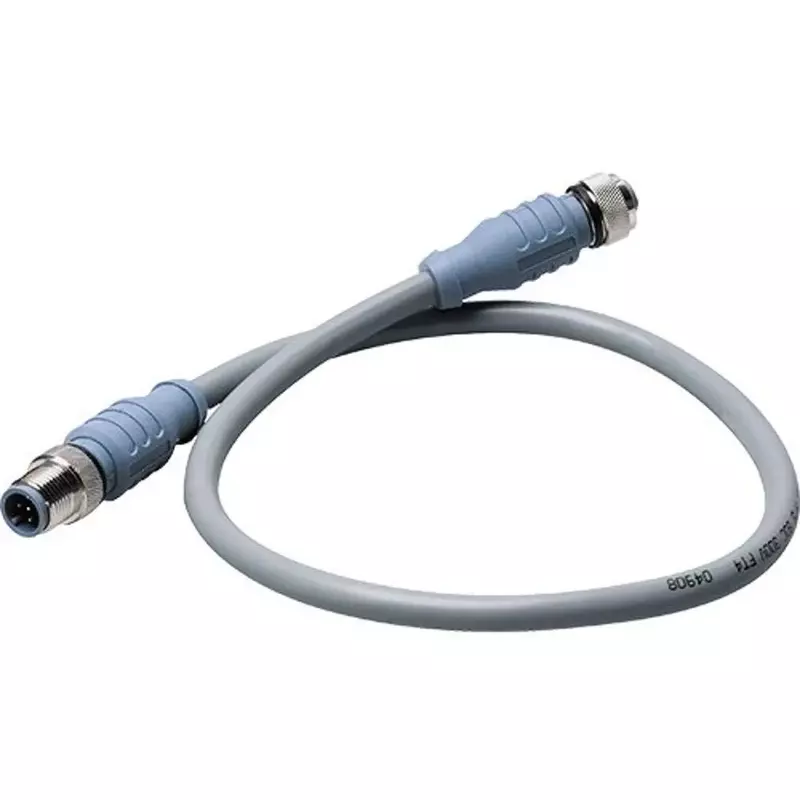

Maretron CM-CG1-CF-00.5 Micro Double Ended Cordset, 0.5 m
Customize
Micro Double-Ended Cordset - 0.5M. Mechanical Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59" Electrical Current Rating: 4.0 Amps Voltage Rating: 250 V Cable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair). Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P. Temperature Rating: -40°C to 80°C (-40°F to 176°F). Approvals (Cable) UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4. NMEA: NMEA 2000 Approved. Cable Length (Feet): 2'. Data Interface: NMEA 2000. Additional product info: Great Product. Packaging and dimensional details available in specifications.
- Product Type: FISHING EQUIPMENT
- Package height: 16.7 cm
- Package width: 14.0 cm
- Package length: 2.0 cm
Specifications:
| Materials & Construction | |
| Color | grey |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Cable Length (Feet) | 2' |
| Connector Gender | Male-to-Female |
| Data Interface | Nmea 2000 |
| Included Components | Great Product |
| Model Name | CM-CG1-CF-00.5 |
| Number of Items | 1 |
| Size | .5 m |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1.3 inches |
| Length | 7.1 inches |
| Product Dimensions | 7.1 x 6.1 x 1.3 inches |
| Size | .5 m |
| Weight | 2.08 ounces |
| Width | 6.1 inches |
| Technical Specifications | |
| Input Current | 4 Amps |
| Voltage | 250 Volts |
