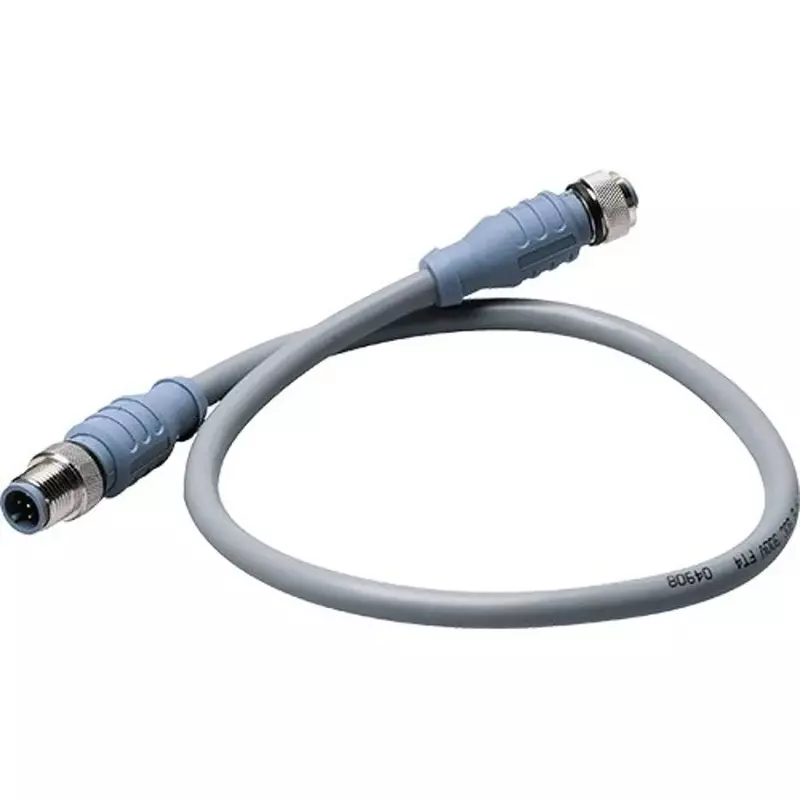

Maretron CM-CG1-CF-01.0 Micro Double Ended Cordset, 1 m
Customize
Maretron CM-CG1-CF-01.0 Micro Double Ended Cordset, 1 m. Micro Double-Ended Cordset - 1M. Mechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray; Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray; Contact Mat/Plating: Brass/Gold; Coupling Nut Mat/Plating: Brass/Nickel; Connector Outside Diameter: 0.59"; Electrical Current Rating: 4.0 Amps; Voltage Rating: 250 V; Cable Outer Jacket Mat/Color: PVC/Gray; Conductor Insulation Material: HDPE (data pair), SRPVC (power pair); Number of Conductors: 4X22 AWG, 22 AWG; Drain Wire; Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair). Environmental: Protection Class: IEC IP68, NEMA 1,3,4,6P; Temperature Rating: -40 °C to 80 °C (-40 °F to 176 °F). Approvals (Cable): UL: PLTC 75 °C Sunlight Resistant E90625, AWM 80 °C 300V (Cable); CSA: CMX-OUTDOOR-CMG LL54185 75 °C, AWM I/II A/B 80 °C 300V FT4; NMEA: NMEA 2000 Approved. Cable Length (Feet): 3'. Data Interface: NMEA 2000.
- 4.0 amps, 250 V
- Country of Origin:Mexico
- Various cable lengths to match installation Requirements
- Rugged, Ip68 rated connectors for continued connection integrity in marine environments
Specifications:
| Materials & Construction | |
| Color | gray |
| Material | plastic |
| Outer Material | plastic |
| Product Details | |
| Cable Length (Feet) | 3' |
| Connector Gender | Male-to-Female |
| Country of Origin | Mexico |
| Data Interface | Nmea 2000 |
| Included Components | Maretron CM-CG1-CF-01.0 Micro Double Ended Cordset, 1 m |
| Input Current | 4 Amps |
| Model Name | Maretron CM-CG1-CF-01.0 Micro Double Ended Cordset, 1 m |
| Number of Items | 1 |
| Size | 1 m |
| Voltage | 250 Volts |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 4 x 2 inches |
| Size | 1 m |
| Weight | 3.2 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Electrical Current Rating | 4.0 Amps |
| Protection Class | IEC IP68, NEMA 1,3,4,6P |
| Temperature Rating | -40 deg C to 80 deg C |
| Voltage Rating | 250 V |
