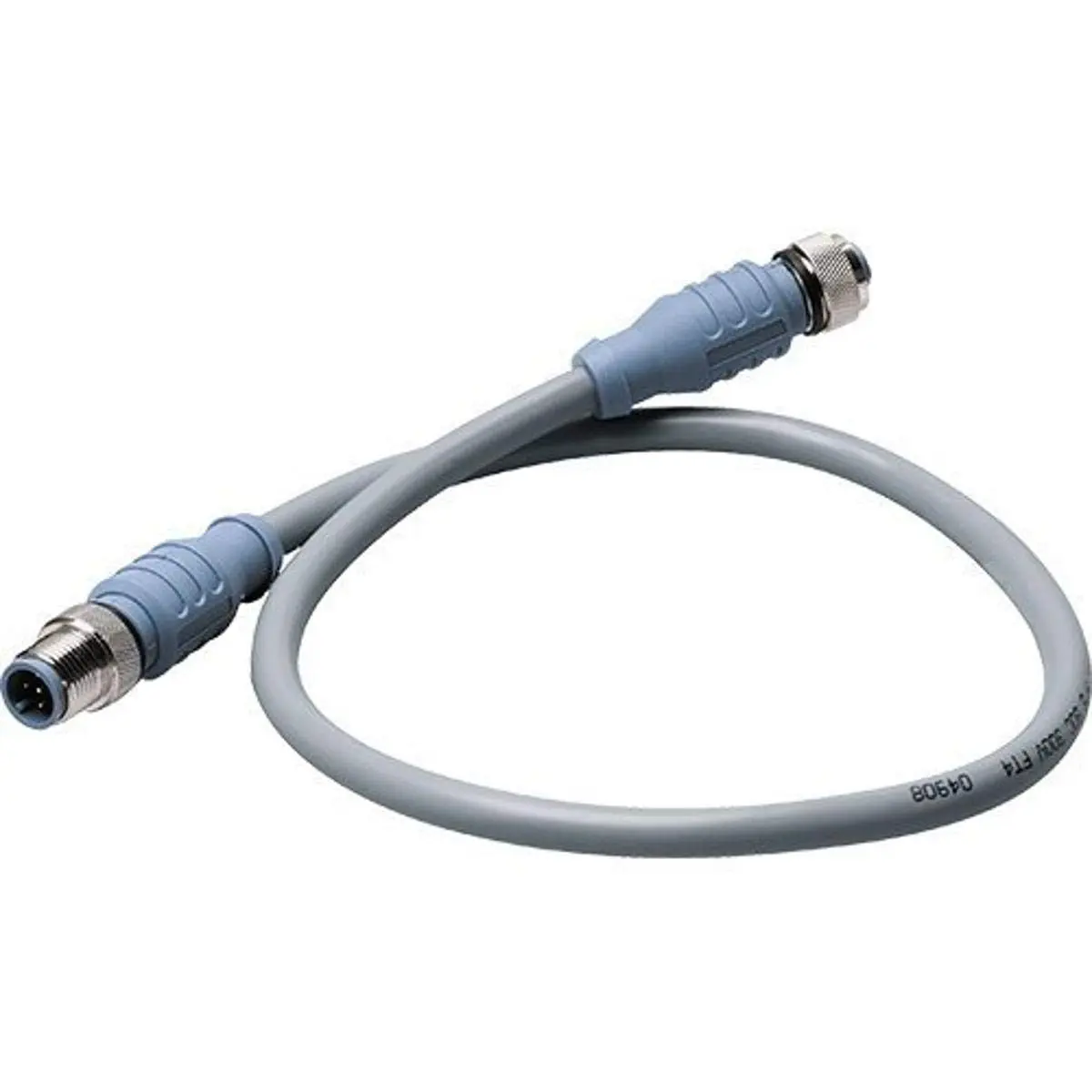

Maretron Micro Double-Ended Cordset - 2 Meter
Customize
Micro Double-Ended Cordset - 2 Meter. Mechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray. Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray. Contact Mat/Plating: Brass/Gold. Coupling Nut Mat/Plating: Brass/Nickel. Connector Outside Diameter: 0.59. Electrical Current Rating: 4.0 Amps. Voltage Rating: 250 V. Cable Outer Jacket Mat/Color: PVC/Gray. Conductor Insulation Material: HDPE (data pair), SRPVC (power pair). Number of Conductors: 4X22 AWG, 22 AWG Drain Wire. Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair). Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P. Temperature Rating: -40 deg C to 80 deg C (-40 deg F to 176 deg F). Approvals (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved. Cable Length (Feet): 6'. Item Dimensions: 7 x 7 x 0.35 inches. Item Weight: 0.2 Pounds.
- Product Type: FISHING EQUIPMENT
- Package height: 21.7 cm
- Package width: 14.2 cm
- Package length: 2.5 cm
Specifications:
| Materials & Construction | |
| Color | Gray |
| Material | Plastic |
| Outer Material | PVC/Gray |
| Product Details | |
| Connector Gender | Male-to-Female |
| Included Components | Great Product |
| Input Current | 4 Amps |
| Model Name | CM-CG1-CF-02.0 |
| Number of Items | 1 |
| Voltage | 250 Volts |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Cable Length (Feet) | 72 inches |
| Height | 0.35 inches |
| Item Package Dimensions L x W x H | 7.01 x 5.63 x 1.26 inches |
| Length | 7 inches |
| Product Dimensions | 7 x 7 x 0.35 inches |
| Product Weight | 0.2 Pounds |
| Size | 78.74 inches |
| Weight | 3.20 ounces |
| Width | 7 inches |
| Technical Specifications | |
| Warranty | Warranty |
