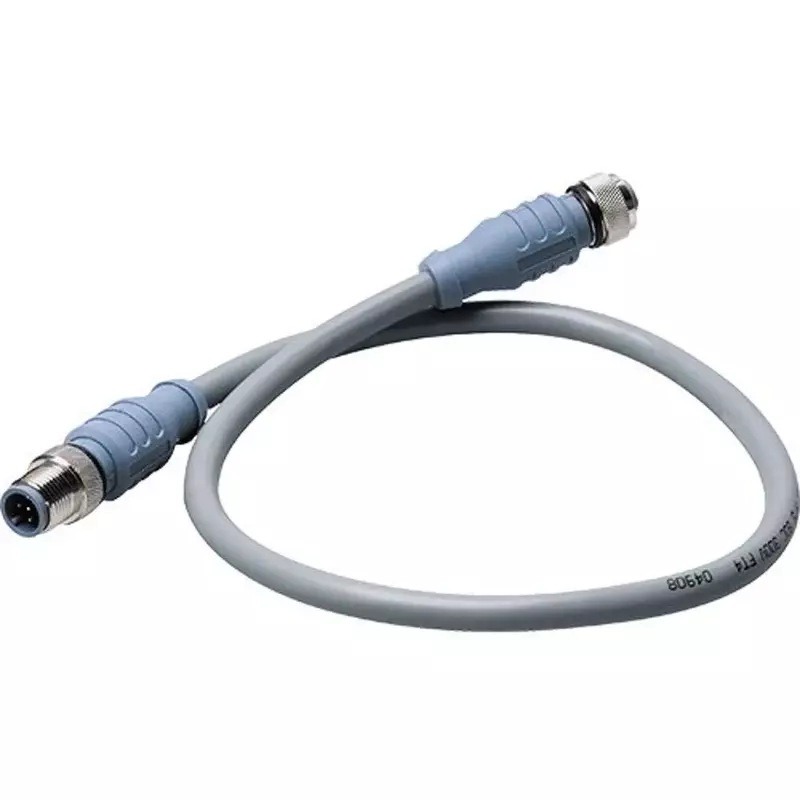

Mechanical Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59" Electrical Current Rating: 4.0 Amps Voltage Rating: 250 V Cable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair) Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F) Approvals (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved. Product marketing: Great Product. Cable Length (Feet): 20' (6.0 meters). Data Interface: NMEA 2000.
| Materials & Construction | |
| Color | Multicoloured |
| Material | Thermoplastic PUR, PVC |
| Outer Material | PVC |
| Product Details | |
| Connector Gender | Male-to-Female |
| Input Current | 4 Amps |
| Model Number | CM-CG1-CF-06.0 |
| Voltage | 3E+2 Volts |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 15 inches |
| Product Dimensions | 15 x 10 x 2 inches |
| Size | 6 Meter |
| Weight | 1.28 ounces |
| Width | 10 inches |
| Technical Specifications | |
| Cable Length (Feet) | 20' (240 inches) |
| Data Interface | Nmea 2000 |
