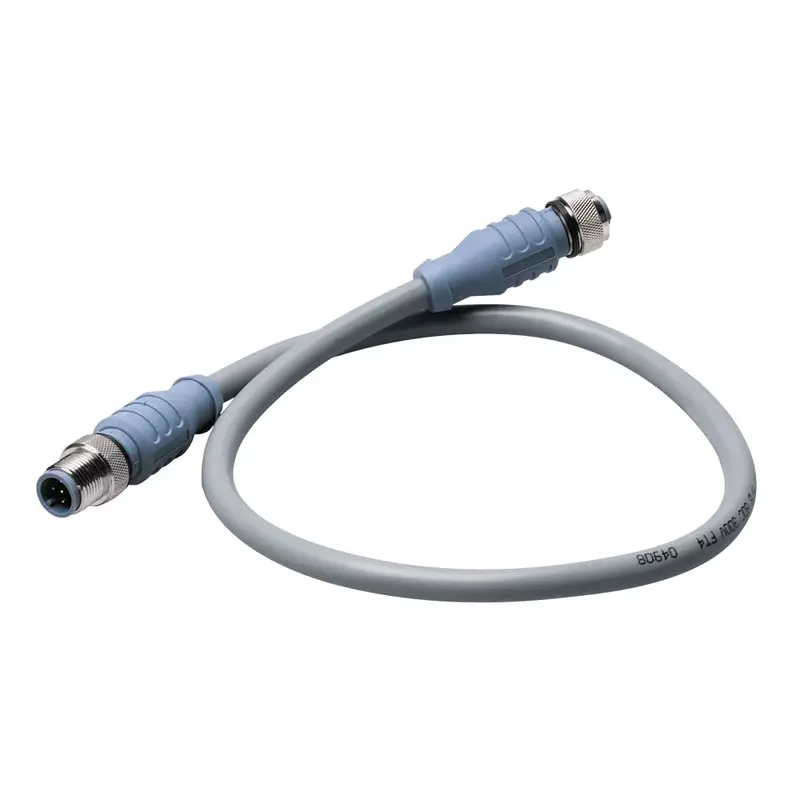

MARETRON micro double-ended cordset (8M / 26') — waterproof IP68 marine cable with 4x22 AWG conductors, PVC jacket, HDPE/SRPVC insulation and gold-plated contacts for reliable NMEA connections.
$65.00
Customize
Available Quantity
5
Maretron Micro Double-Ended Cordset - 8M (26') is a marine-grade NMEA cordset designed for reliable data and power connections in harsh environments. Mechanical: Contact carrier and molded body material: thermoplastic PUR (blue-gray); contact plating: brass/gold; coupling nut plating: brass/nickel; connector outside diameter: 0.59". Electrical: current rating 4.0 Amps, voltage rating 250 V; cable conductor configuration: 4x22 AWG plus 22 AWG drain; conductor insulation materials: HDPE (data pair) and SRPVC (power pair); shielding: multiple foil shields (overall, power pair, data pair). Cable outer jacket: PVC (gray). Environmental: Protection class IEC IP68 and NEMA 1,3,4,6P; temperature rating -40 °C to 80 °C (-40 °F to 176 °F). Cable approvals include UL and CSA cable ratings and NMEA 2000 approval. Package dimensions: 8 x 7 x 1 inches; package weight: 1.1 pounds.
| Materials & Construction | |
| Color | Gray |
| Material | Plastic |
| Product Details | |
| Cable Length (Feet) | 26' |
| Connector Gender | Male-to-Male |
| Included Components | Great Product |
| Number of Items | 1 |
| Plug Format | Type B |
| Voltage | 300 Volts |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 7 x 1 inches |
| Product Weight | 16 ounces |
| Size | No Size |
| Weight | 1 pounds |
| Width | 7 inches |
| Technical Specifications | |
| Warranty | Warranty |
